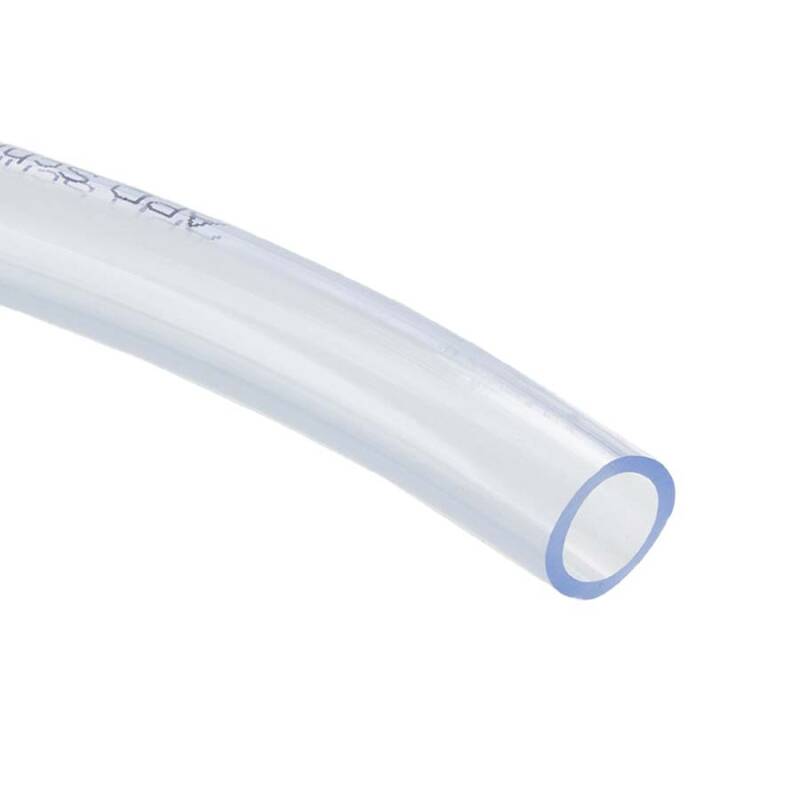

PVC hose trasparent

0,29 €

including 19% VAT., plus shipping

Item number: SC0401

How to measure a threaded fitting

Wichtiger Hinweis

keine Rückgabe, kein Widerruf bei Schlauchzuschnitt.

Tipp

Für die richtige Wahl der Schlauchklemme ist der Aussendurchmesser des Schlauches maßgeblich.

Item no.	Variation	D	DN	W	max. lenght	kurzzeitig belastbar	Price	Quantity
SC0401.004.001	4mm Meterware	6	4	1	50m	6,5 bar	0,29 €^*	meter:
SC0401.004.100	4mm Rolle 100m	6	4	1	---	6,5 bar	24,88 €^*	Reel:
SC0401.006.001	6mm Meterware	8	6	1	50m	5 bar	0,52 €^*	meter:
SC0401.006.100	6mm Rolle 100m	8	6	1	---	5 bar	46,31 €^*	Reel:
SC0401.008.001	8mm Meterware	10	8	1	50m	4 bar	0,51 €^*	meter:
SC0401.008.100	8mm Rolle 100m	10	8	1	---	4 bar	45,10 €^*	Reel:
SC0401.009.001	9mm Meterware	12	9	1,5	50m	5 bar	0,83 €^*	meter:
SC0401.009.050	9mm Rolle 50m	12	9	1,5	---	5 bar	36,54 €^*	Reel:
SC0401.010.001	10mm Meterware	13	10	1,5	50m	4,5 bar	0,88 €^*	meter:
SC0401.010.050	10mm Rolle 50m	13	10	1,5	---	4,5 bar	56,67 €^*	Reel:
SC0401.012.001	12mm Meterware	15	12	1,5	50m	4 bar	1,43 €^*	meter:
SC0401.012.050	12mm Rolle 50m	15	12	1,5	---	4 bar	62,89 €^*	Reel:
SC0401.014.001	14mm Meterware	18	14	2	50m	4,5 bar	1,45 €^*	meter:
SC0401.014.050	14mm Rolle 50m	18	14	2	---	4,5 bar	63,75 €^*	Reel:
SC0401.016.001	16mm Meterware	20	16	2	50m	4 bar	1,79 €^*	meter:
SC0401.016.050	16mm Rolle 50m	20	16	2	---	4 bar	78,96 €^*	Reel:
SC0401.018.001	18mm Meterware	22	18	2	50m	3,5 bar	2,11 €^*	meter:
SC0401.018.050	18mm Rolle 50m	22	18	2	---	3,5 bar	92,68 €^*	Reel:
SC0401.019.001	19mm Meterware	23	19	2	50m	3,5 bar	1,98 €^*	meter:
SC0401.019.050	19mm Rolle 50m	23	19	2	---	3,5 bar	96,69 €^*	Reel:
SC0401.020.001	20mm Meterware	24	20	2	50m	3,5 bar	2,21 €^*	meter:
SC0401.020.050	20mm Rolle 50m	24	20	2	---	3,5 bar	97,21 €^*	Reel:
SC0401.025.001	25mm Meterware	31	25	3	25m	3,5 bar	3,82 €^*	meter:
SC0401.025.025	25mm Rolle 25m	31	25	3	---	3,5 bar	83,99 €^*	Reel:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

PVC Schlauch transparent

Schlauch für Luft, Gase, Wasser und einer großen Anzahl von Flüssigkeiten, Alkohol bis 20 Vol.-% sowie zum Durchleiten von allen Lebensmitteln nach Verordnung (EU) 10/2011 Kat. A, B und C. Der Schlauch findet Verwendung als druckloser Förderschlauch in der allgemeinen Industrie, in der chemischen Industrie und in der Labortechnik sowie als Dichtungen und als Schutzschlauch.

Aufdruck:

Beständigkeit:

Weich-PVC

Farbe:

Transparent

Lebensmittel:

EU 10/2011 A, B, C

REACH:

1907/2006/EC

RoHS:

2015/863

Material:
