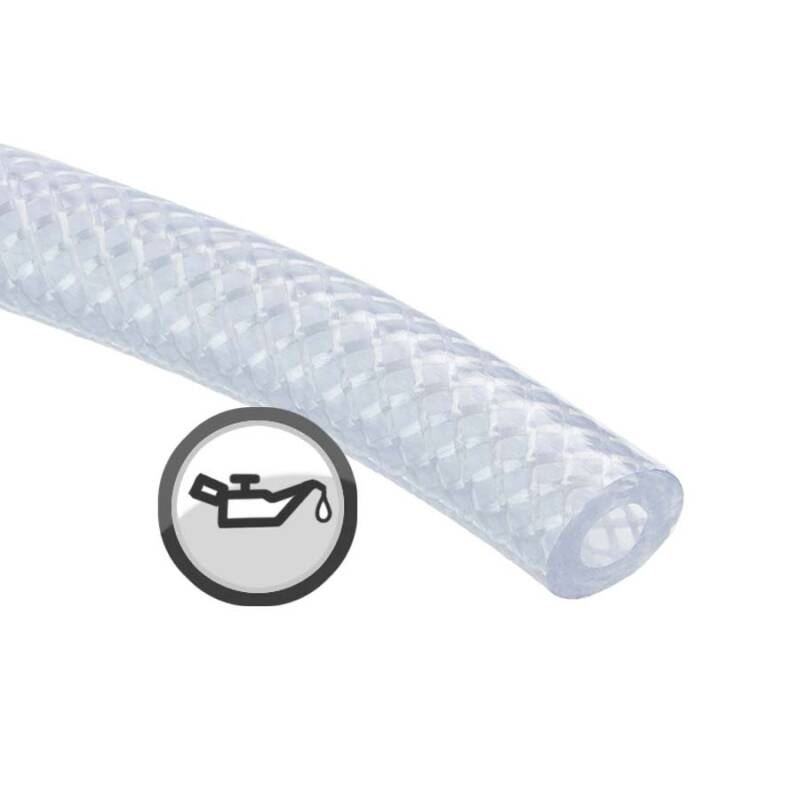

PVC reinforced and oil-resistant hose trasparent

2,65 €

including 19% VAT., plus shipping

Item number: SC0403

How to measure a threaded fitting

Wichtiger Hinweis

keine Rückgabe, kein Widerruf bei Schlauchzuschnitt.

Tipp

Für die richtige Wahl der Schlauchklemme ist der Aussendurchmesser des Schlauches maßgeblich.

Item no.	Variation	D	DN	W	Bend radius	max. lenght	Working pressure	Burst pressure	Weight	Price	Quantity
SC0403.006.001	6mm Meterware	12	6	3	25	50m	25 bar	75 bar	103	2,65 €^*	meter:
SC0403.006.050	6mm 50m Rolle	12	6	3	25	---	25 bar	75 bar	5150	127,23 €^*	Reel:
SC0403.009.001	9mm Meterware	15	9	3	35	50m	22 bar	66 bar	144	4,82 €^*	meter:
SC0403.009.050	9mm Rolle 50m	15	9	3	35	---	22 bar	66 bar	7200	230,49 €^*	Reel:
SC0403.010.001	10mm Meterware	16	10	3	40	50m	21 bar	63 bar	156	3,97 €^*	meter:
SC0403.010.050	10mm Rolle 50m	16	10	3	40	---	21 bar	63 bar	7800	188,62 €^*	Reel:
SC0403.013.001	13mm Meterware	19	13	3	70	50m	15 bar	45 bar	192	7,52 €^*	meter:
SC0403.013.050	13mm Rolle 50m	19	13	3	70	---	15 bar	45 bar	9600	302,38 €^*	Reel:
SC0403.019.001	19mm Meterware	27	19	4	130	50m	11 bar	33 bar	368	9,26 €^*	meter:
SC0403.019.050	19mm Rolle 50m	27	19	4	130	---	11 bar	33 bar	18500	442,80 €^*	Reel:
SC0403.025.001	25mm Meterware	34	25	4,5	220	25m	10 bar	30 bar	14,45 €^*	meter:
SC0403.025.025	25mm Rolle 25m	34	25	4,5	220	---	10 bar	30 bar	345,29 €^*	Reel:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

PVC Schlauch gewebeverstärkt ÖLBESTÄNDIG

Mehrlagiger PVC-Druckschlauch mit hoch reißfester Polyester-Gewebeeinlage.
Anwendungen: Für Transport von fl+üssigen Lebensmitteln nach EU 10/2011 A, B, C, in der Drucklufttechnik und für allgemeine industrielle Anwendungen.

Aufdruck:

Beständigkeit:

Weich-PVC, ÖLBESTÄNDIG

Farbe:

Transparent

Garn:

Polyestergarn

Lebensmittel:

NEIN

REACH:

1907/2006/EC

RoHS:
