Pressure compensating emitters

SKU: BW0105
Auswahl Steuerzone / Lieferland
from
0,12 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
Colour
Price
Quantity

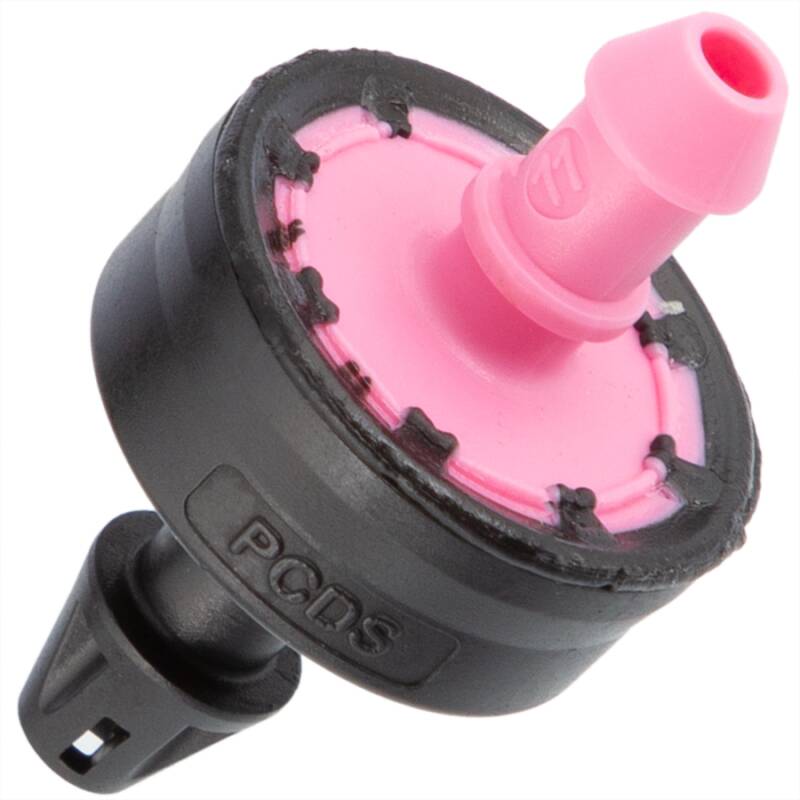

Dropper, emitter, pressure compensating 1.1 l/h, pink
BW0105.IRR.011
iDrop light Emitter
1,1 l/h
Pink
0,30 €*
pc.:

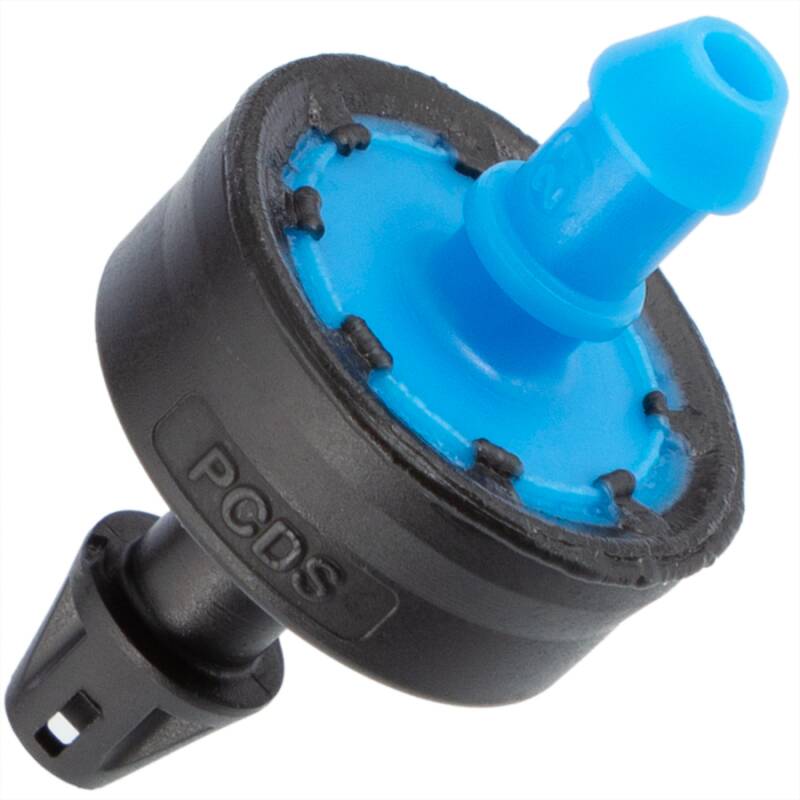

On-line drippers, emitter, pressure compensating 2,1 l/h, blue
BW0105.IRR.021
iDrop light Emitter
2,1 l/h
Blau
0,30 €*
pc.:

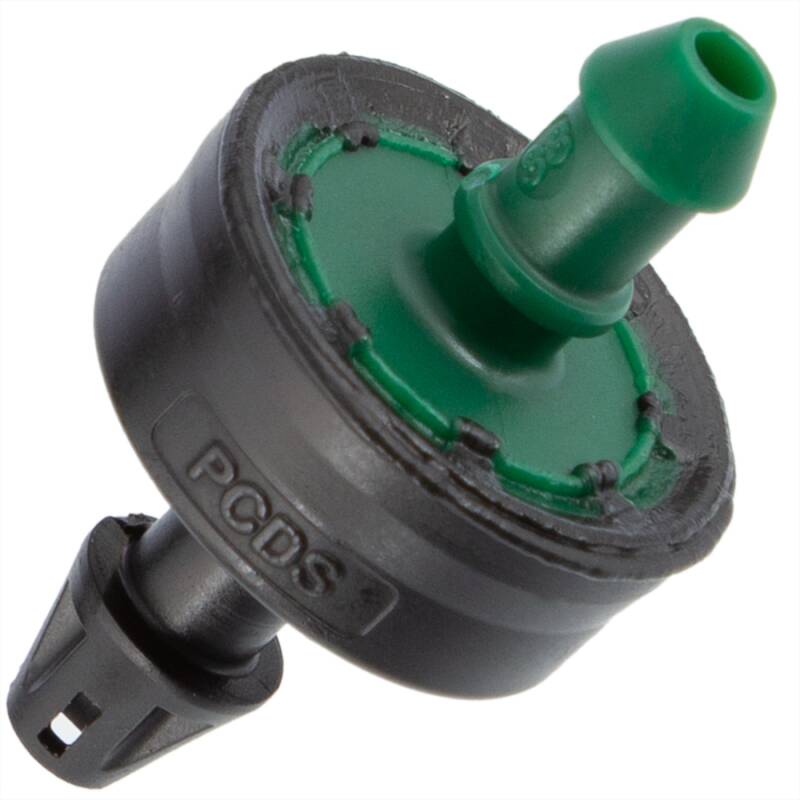

On-line drippers, emitter, pressure compensating 3,8 l/h, green
BW0105.IRR.038
iDrop light Emitter
3,8 l/h
Grün
0,30 €*
pc.:
On-line drippers, emitter, pressure compensating 7,8 l/h, red
BW0105.IRR.078
iDrop light Emitter
7,8 l/h
Rot
0,30 €*
pc.:
Dropper, emitter, pressure-compensating 25 l/h, gray
BW0105.IRR.250
iDrop light Emitter
25 l/h
Grau
0,30 €*
Universal 3.4mm hole puncher, dripper, emitter
BW0105.IRR.300
TECO Universal Lochstecher 3,4mm
Orange
1,20 €*
pc.:
2 way manifold Pressure compensating emitters
BW0105.IRR.002
2-Wege Adapter für iDrop Emitter / Pfeiltropfer
---
0,12 €*
pc.:
4 way manifold Pressure compensating emitters
BW0105.IRR.004
4-Wege Adapter für iDrop Emitter / Pfeiltropfer
---
0,14 €*
pc.:
Pressure compensating emitters 100° 2,6 lph dripper stake 150mm + 70cm micro pipe 3mm
BW0105.150.070
2,6 l/h Pfeiltropfer 150mm inkl. 1-Wege Adapter für iDrop Emitter und 60cm PVC Microleitung 3mm
---
1,56 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

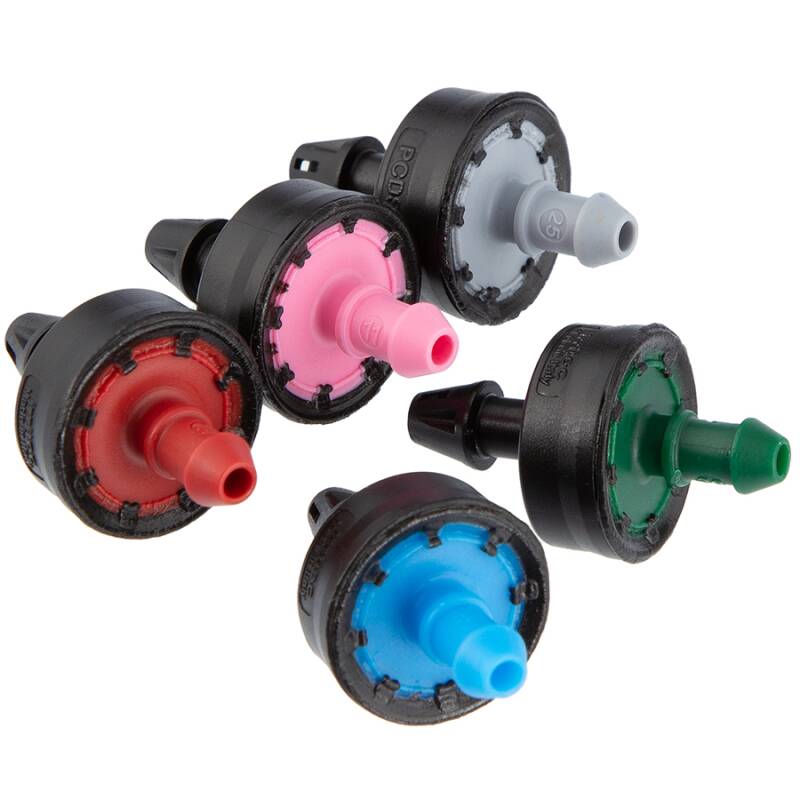

Emitters, Drippers, Single Dripper Pressure Compensating

Single drippers, pressure compensating 0.8 bar to 4 bar, self-closing under 0.15 bar. The black housing allows the emitters to practically disappear into the landscape. A hole punch is required for installation. The self-cleaning single drippers minimize clogging for easy maintenance and ensure consistent drip performance.
Ideal for precise irrigation on balconies and terraces (potted plants, plant containers), in garden beds, nurseries, vegetable growing, or horticulture.

Note: The emitters are inserted with the black side into the supply pipe.


Note: The arrow dripper already has a 1-way adapter for the emitters. If you wish to use a 2-way or 4-way adapter, the 1-way adapter must first be removed from the pipe.


  • Pressure compensating 0.8 bar - 4 bar
  • Self-closing membrane under 0.15 bar
  • Self-cleaning mechanism
  • High-quality polypropylene housing
  • UV-resistant and fertilizer-resistant
  • Color-coded for easy identification
With the IRRITEC iDROP PCDS single drippers/emitters from the table below, you can determine the corresponding maximum pipe length of a Supply Pipe or an irrigation zone, considering your available water pressure and the chosen emitter spacing.
