Pressure regulation unit Rainbird PSI-M

SKU: BW0007
Auswahl Steuerzone / Lieferland
from
16,97 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
Sicherheitshinweis

Druckreguliereinheit nicht öffnen - im Inneren befindet sich eine Feder unter Spannung
  • Available immediately
Variants

Product picture
Item no.
Variation
Length
Connection
Input pressure
Output pressure
Price
Quantity

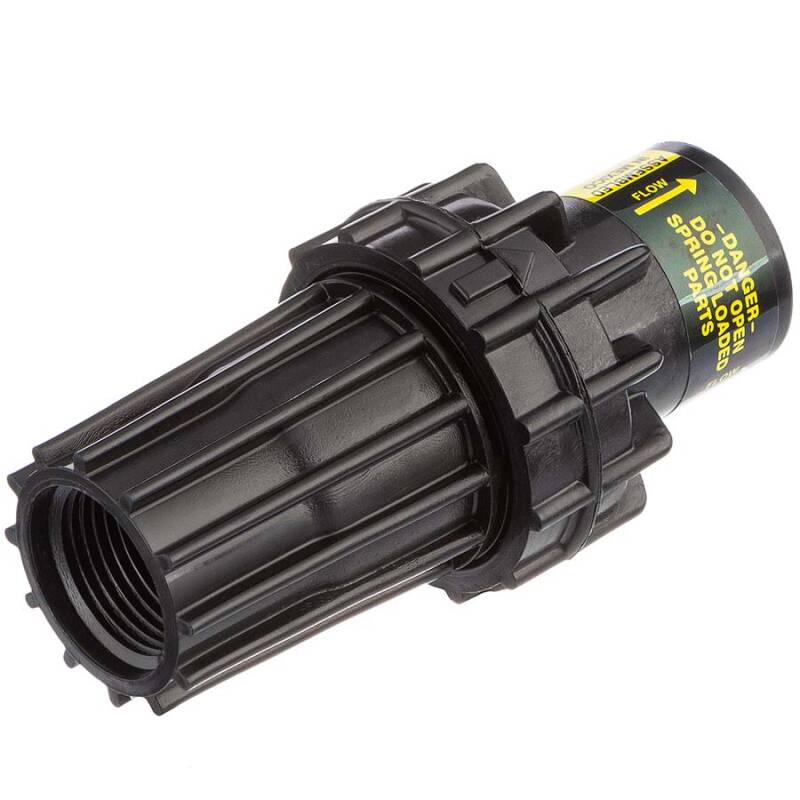

Pressure regulation unit Rainbird PSI-M20
BW0007.025.014
Rain Bird PSI-M20
110
3/4" (26,44mm)
1,5 - 7,0 bar
1,4 bar
16,97 €*
pc.:
Pressure regulation unit Rainbird PSI-M25
BW0007.025.018
Rainbird PSI-M25
110
3/4" (26,44mm)
2,0 - 7,0 bar
1,8 bar
16,97 €*
pc.:
Pressure regulation unit Rainbird PSI-M30
BW0007.025.021
Rainbird PSI-M30
110
3/4" (26,44mm)
2,3 - 7,0 bar
2,1 bar
16,97 €*
pc.:
Pressure regulation unit Rainbird PSI-M40
BW0007.025.028
Rainbird PSI-M40
132
3/4" (26,44mm)
3,0 - 7,0 bar
2,8 bar
16,97 €*
pc.:
Pressure regulation unit Rainbird PSI-M50
BW0007.025.035
Rainbird PSI-M50
110
3/4" (26,44mm)
3,8 - 7,0 bar
3,5 bar
16,97 €*
pc.:

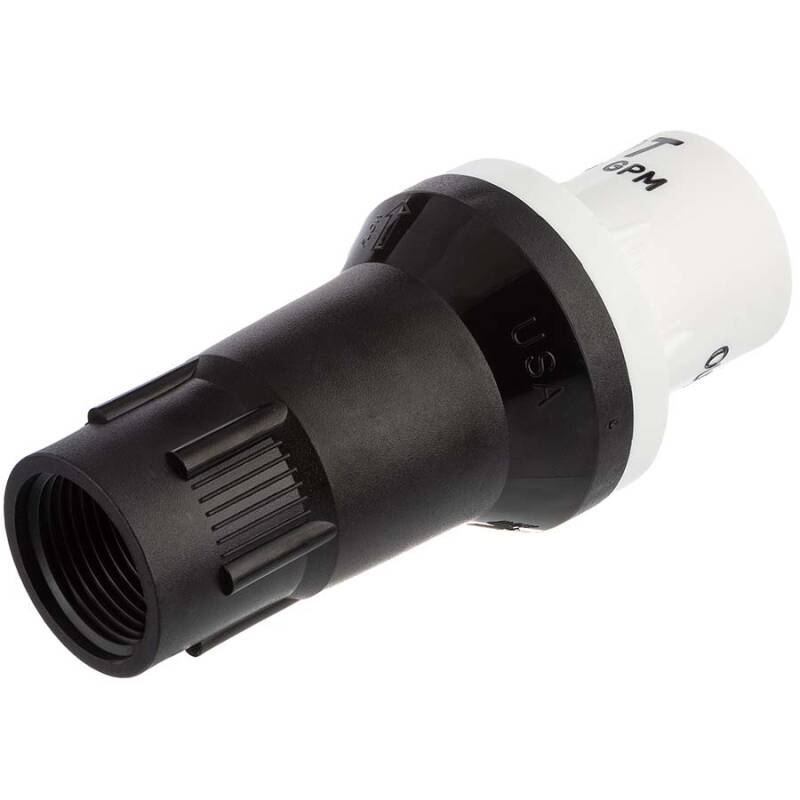

Pressure regulation unit Rainbird PSI-M
BW0007.032.034
Senninger PMR-MF 50 PSI
145
1" (33,25mm)
3,79 - 8,96 bar
3,45 bar
23,53 €*
pc.:
Pressure regulation unit Rainbird PSI-M
BW0007.032.041
Senninger PMR-MF 60 PSI
145
1" (33,25mm)
4,48 - 9,65 bar
4,14 bar
24,23 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

Druckregulierungseinheit, Druckminderer

Mit dem Einbau der Druckregulierungseinheit wird ein konstanter Maximaldruck (fester Ausgangsdruck) bei allen Installationen gewährleistet, vorausgesetzt, der Eingangsdruck ist höher.


technische Daten:

  • voreingestellte Druckregulierungseinheit
  • Einbau ober- und unterirdisch
  • Wassermenge RainBird: 0,45 bis 5 m³/h
  • Wassermenge Senninger: 0,45 bis 4,5 m³/h
  • Eingangsdruckund Ausgangsdruck: siehe Tabelle
  • Anschluss: 2fach Innengewinde 3/4" oder 1" je nach Modell
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
