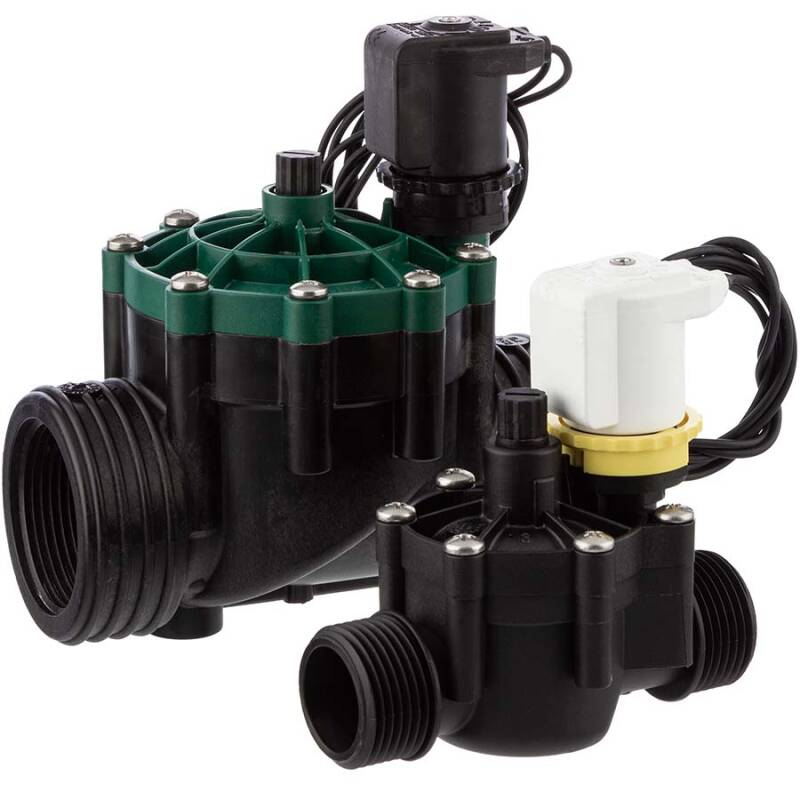

Solenoid valve RPE
13,61 €

including 19% VAT., plus shipping

Item number: MV0RPE

Bitte beachten Sie die Spannungsangaben zur Spule bei Ihrer Auswahl.

Es wird ein Vorlaufdruck von 0,4 bar benötigt.
Product picture Item no. Variation Price Quantity
RPE Magnetventil 1/2" Innengewinde 24 VAC mit flow control MV0RPE.0ND.620 1/2" Innengewinde 24 VAC 36,28 €*
RPE Magnetventil 3/4" Aussengewinde 24 VAC ohne flow control MV0RPE.0ND.622 3/4" Aussengewinde 24 VAC 28,23 €*
RPE Magnetventil 3/4" Innengewinde 24 VAC ohne flow control MV0RPE.0ND.624 3/4" Innengewinde 24 VAC 30,24 €*
RPE Magnetventil 3/4" Innengewinde 24 VAC mit  flow control MV0RPE.0ND.626 3/4" Innengewinde 24 VAC 33,90 €*
RPE Magnetventil 3/4" Innengewinde 24 VDC mit flow control MV0RPE.0ND.627 3/4" Innengewinde 24 VDC 37,29 €*
RPE Magnetventil 1" Aussengewinde 24 VAC ohne flow control MV0RPE.0ND.628 1" Aussengewinde 24 VAC 30,24 €*
RPE Magnetventil 1" Innengewinde 24 VAC ohne flow control MV0RPE.0ND.630 1" Innengewinde 24 VAC 30,24 €*
RPE Magnetventil 1" Innengewinde 24 VDC mit flow controll MV0RPE.0ND.631 1" Innengewinde 24 VDC 39,32 €*
RPE Magnetventil 1" Innengewinde 24 VAC mit flow control MV0RPE.0ND.632 1" Innengewinde 24 VAC 39,31 €*
RPE Magnetventil 1" Aussengewinde 24 VAC mit flow control MV0RPE.0ND.633 1" Aussengewinde 24 VAC 34,27 €*
RPE Magnetventil 1" Aussengewinde 24 VDC mit flow control MV0RPE.0ND.635 1" Aussengewinde 24 VDC 34,27 €*
RPE Magnetventil 1 1/2" Innengewinde 24 VAC mit flow control MV0RPE.0ND.638 1 1/2" Innengewinde 24 VAC 71,57 €*
RPE Magnetventil 2" Innengewinde 24 VAC mit flow control MV0RPE.0ND.640 2" Innengewinde 24 VAC 96,21 €*
RPE Spule 24 VAC MV0RPE.0ND.660 RPE Ersatzspule 17,41 €*
RPE Spule 24 VDC MV0RPE.0ND.662 RPE Ersatzspule 19,16 €*
RPE Magnetventil Membrane RPE 1/2", 3/4" und (1" AG) MV0RPE.0ND.677 RPE Ersatzmembrane 14,14 €*
RPE Magnetventil Membrane RPE (1" IG) und 1 1/4" MV0RPE.0ND.675 RPE Ersatzmembrane 14,40 €*
RPE Magnetventil Membrane RPE 1 1/2" MV0RPE.0ND.678 RPE Ersatzmembrane 13,61 €*
RPE Magnetventil Membrane RPE 2" MV0RPE.0ND.676 RPE Ersatzmembrane 17,67 €*

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

RPE elektrisch betätigte Membranabsperrventile

Glasfiberverstärktes Gehäuse aus Nylon/Polyamid mit Edelstahlschrauben von RPE.

  • Nylon/Polyamid 30% Glasfaser
  • Edelstahlschrauben AISI 304, V2A
  • Magnetspule IP55 mit Bajonettverschluss und Handbedienung
  • Stromaufnahme 185 mA
  • Arbeitsstrom 2,2 Watt
  • Membran aus thermoplastischem Gummi
  • Vordruck (Mindestdruck): 0,4 bar
  • Arbeitsdruck/Betriebsdruck: 0,4 bis 10 bar
  • max. Temperatur: 60°C
  • stromlos geschlossen
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD Druckverlust in bar

RPE Magnetspule

Für Austausch oder als Änderung der Spannungsansteuerung.
Sie wechseln nur die Magnetspule und steuern Ihr Ventil mit der Spannung der neuen Magnetspule an.
