Description

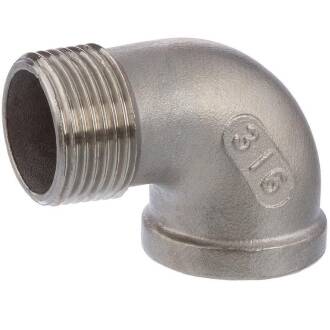

90° angle female-to-male thread, stainless steel fitting, AISI 316 quality, V4A
Connection:
Internal x external thread
Thread:
BSP pipe thread R (tapered) DIN 2999 & BS21, ISO 228/1 & ISO 7/1, not self-sealing, sealing with hemp, sealing paste or o.
Temperature:
-20°C to 200°C
Working pressure (PN):
20 bar
Material:
Stainless steel AISI 316 V4A (UNE EN 10213-4 / DIN 1.4408)
DIN:
Dimensions in accordance with ISO 4144, connection thread in accordance with ISO 7/1 (DIN 2999 / BS 21)
Color:
Gray stainless steel
Key data
- Working temperature: -20°C to 200°C
- Working pressure PN 20 bar (300 psi)
- Measuring according to ISO 4144
- Whitworth thread, CNC machined according to ISO 7/1 (DIN 2999 / BS21)
- Manufacturing standard UNE EN 10213-4, tolerance DIN 1.4408
Stainless steel (according to EN 10020) is a designation for alloyed or unalloyed steels with a particular degree of purity. Steels whose sulfur and phosphorus content (so-called iron companions) does not exceed 0.025%.
Alloy 316 is a standard steel grade with molybdenum. The molybdenum gives alloy 316 better corrosion resistance than 304, particularly greater resistance to pitting and crevice corrosion in chloride-containing media. The austenitic structure gives this alloy a high degree of toughness, even at very low temperatures, high creep strength, high stress-rupture strength and tensile strength at elevated temperatures. The alloy is commonly known as V4A stainless steel.
Stainless steel AISI 316 | Material 1.4401 (X5CrNiMo17-12-2) (V4A) Application: According to DVGW worksheet W541 (basis for the requirements for pipes made of stainless steel for domestic drinking water installations), steel grade 1.4401 is the most commonly used.
It can be used in a wide range of applications in the chemical, petrochemical and natural gas industries, the food industry, corrosive environments and extreme temperatures... Fluid technology, boilers, condensers, heat exchangers, reactors...
