Triple water filter container 10"

SKU: FI0002.310
Auswahl Steuerzone / Lieferland
from
39,59 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
Connection
Price
Quantity
FI0004.310.020
3fach 10"
1/2" (20,95mm)
39,59 €*
pc.:
FI0004.310.025
3fach 10"
3/4" (26,44mm)
39,59 €*
pc.:
FI0004.310.032
3fach 10"
1" (33,25mm)
40,19 €*

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

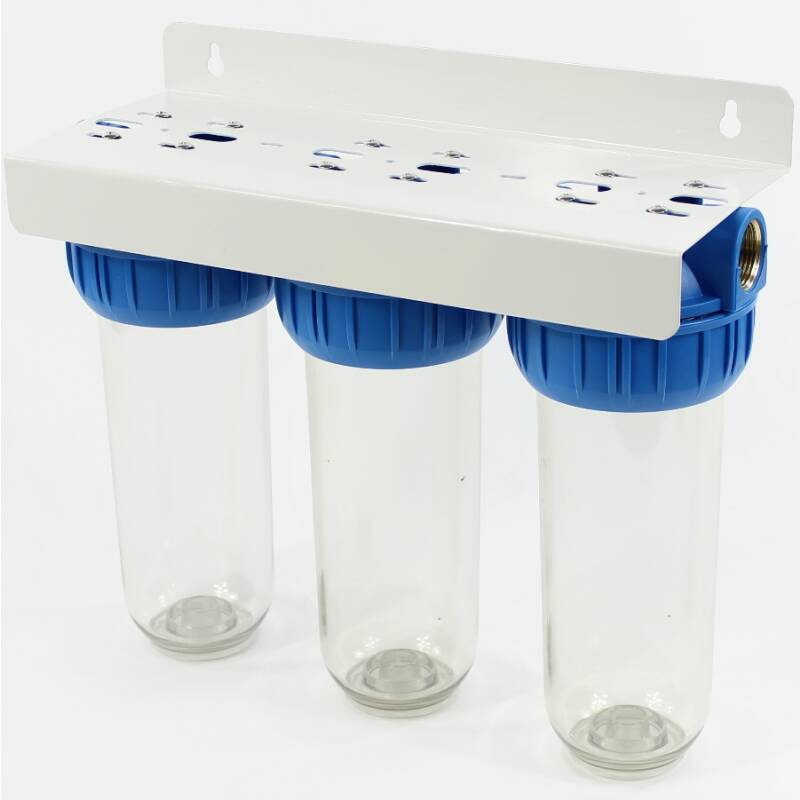

NatureWater Plastic Water Filter Housing
3x 10" Housing 2x Internal Thread Brass Insert
Pre-assembled with Steel Bracket

The 3x 10" water filter housing with a transparent body and internal thread brass insert can be individually equipped with filter cartridges based on the level of contamination.
Example for the finest coffee enjoyment: Housing 1 with polyester gauze filter 60µ, Housing 2 with woven nylon filter 20µ, and Housing 3 with woven nylon filter 5µ

Connection:
3x Internal Thread Brass Insert
Connection Option:
1/2" | 3/4" | 1"
Package:
Water filter housing without cartridge, including pre-assembled metal wall bracket and housing wrench
Cartridge Filter:
Without cartridge filter
Operating Pressure (PN):
Max. 6 bar at 20°C, max. 40°C
Material:
Housing head, union nut: Polypropylene | Housing: Styrene Acrylonitrile (transparent) - not UV-resistant
Ambient Temperature:
0°C - 40°C
Housing Size:
2x 10" (25.4cm) | Ø 10" housing approx. 12.7cm
Installation Width:
406mm
Color:
Blue/Transparent

Flow Rate Guidelines

  • Water filter with 3/4" connection: max. 2,400 l/h
  • Water filter with 1" connection: max. 3,400 l/h
  • Candle filter 20µ: max. 1,800 l/h
  • Nylon filter 60µ: max. 1,800 l/h
  • Activated carbon filter: max. 600 l/h
