U-PVC loose flange

Choose the variation
Industrie

from
1,79 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

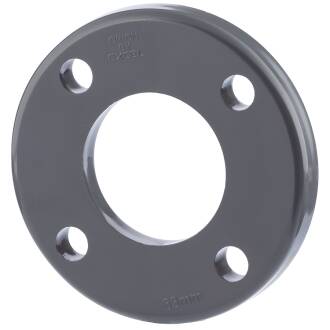

Product picture
Item no.
Variation
A
B
D
d
E
N
Screw
Flange sleeve
Price
Quantity
PVC-U Aufsteckflansch 20mm
AF0702.000.020
20mm
95
65
12
14
28
4
M12
für 20mm
1,79 €*
pc:
PVC-U Aufsteckflansch 25mm
AF0702.000.025
25mm
105
75
13
14
34
4
M12
für 25mm
1,94 €*
pc:
PVC-U Aufsteckflansch 32mm
AF0702.000.032
32mm
115
85
15
14
42
4
M12
für 32mm
2,20 €*
pc:
PVC-U Aufsteckflansch 40mm
AF0702.000.040
40mm
140
100
15
18
51
4
M16
für 40mm
3,30 €*
pc:
PVC-U Aufsteckflansch 50mm
AF0702.000.050
50mm
150
110
16
18
62
4
M16
für 50mm
3,58 €*
pc:
U-PVC loose flange 63mm
AF0702.000.063
63mm
165
125
19
17,5
78
4
M16
für 63mm
3,01 €*
pc:
PVC-U Aufsteckflansch 75mm
AF0702.000.075
75mm
185
145
20
18
92
4
M16
für 75mm
3,31 €*
pc:
PVC-U Aufsteckflansch 90mm
AF0702.000.090
90mm
200
160
20
18
112
8
M16
für 90mm
3,71 €*
pc:
PVC-U Aufsteckflansch 110mm
AF0702.000.110
110mm
220
180
22
18
131
8
M16
für 110mm
5,09 €*
pc:
PVC-U Aufsteckflansch 125mm LK190
AF0702.190.125
125mm LK190mm
230
190
24
18
150
8
M16
für 125mm
8,20 €*
pc:
PVC-U Aufsteckflansch 125mm LK210
AF0702.210.125
125mm LK210mm
250
210
24
18
148
8
M16
für 125mm
9,41 €*
pc:
PVC-U Aufsteckflansch 160mm
AF0702.000.160
160mm
285
240
24
22
188
8
M20
für 160mm
9,87 €*
pc:
PVC-U Aufsteckflansch 200mm
AF0702.000.200
200mm
340
295
26
22
235
8
M20
für 200mm
13,85 €*
pc:
U-PVC loose flange
AF0702.000.250
250mm
394
350
35
22
280
12
M20
für 250mm
19,94 €*
pc:
U-PVC loose flange
AF0702.000.315
315mm
461
315
40
22
348
12
M20
für 315mm
23,79 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Aufsteckflansch, Losflansch

Anschluss:
Haltering für Bundbuchse in einer Flanschverbindung
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser | ab 200m max. 10 bar
Material:
PVC-U
Farbe:
Grau
