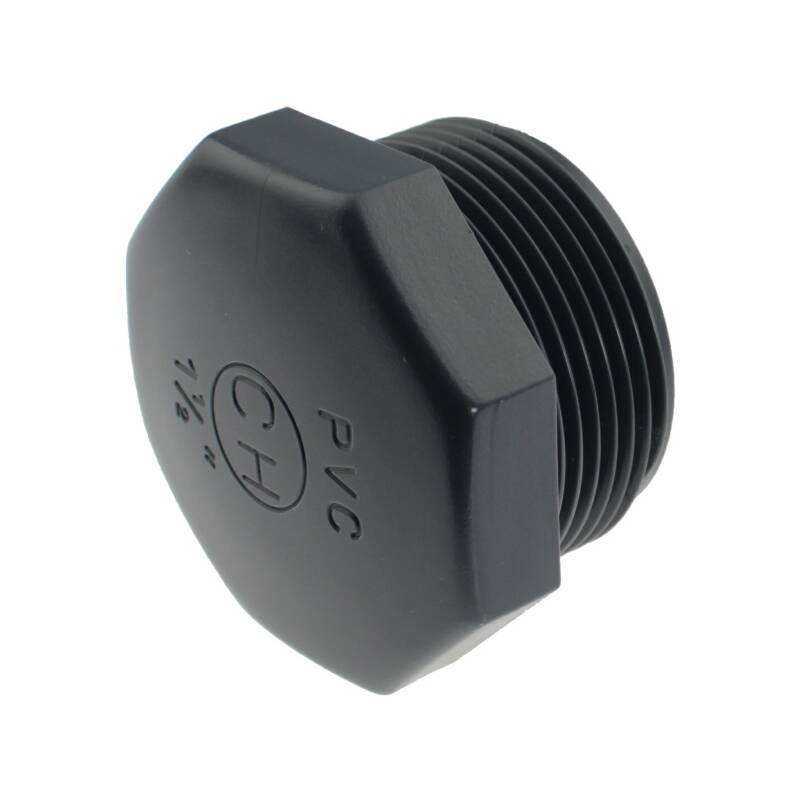

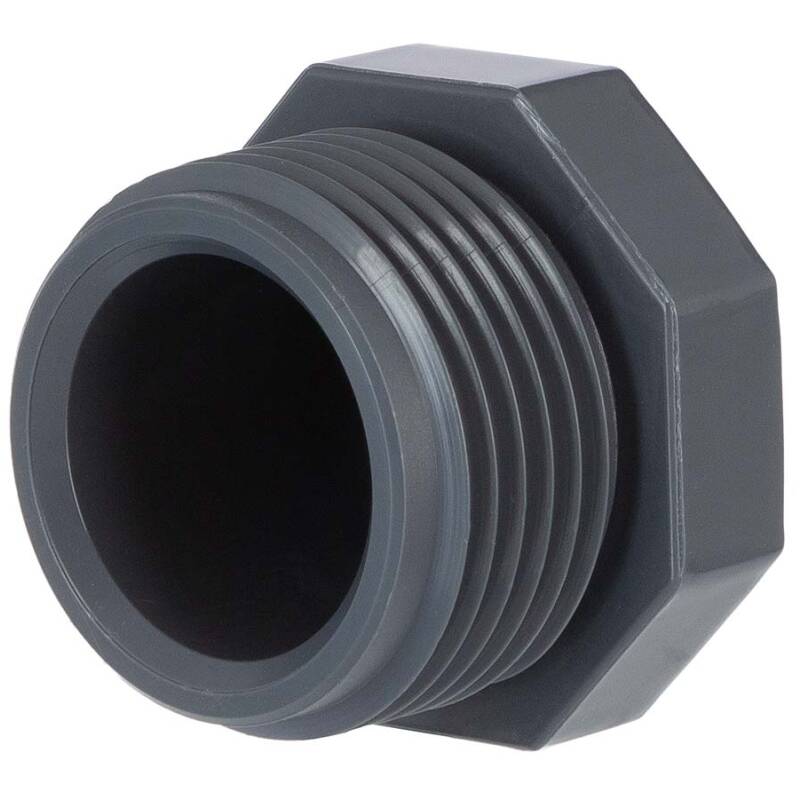

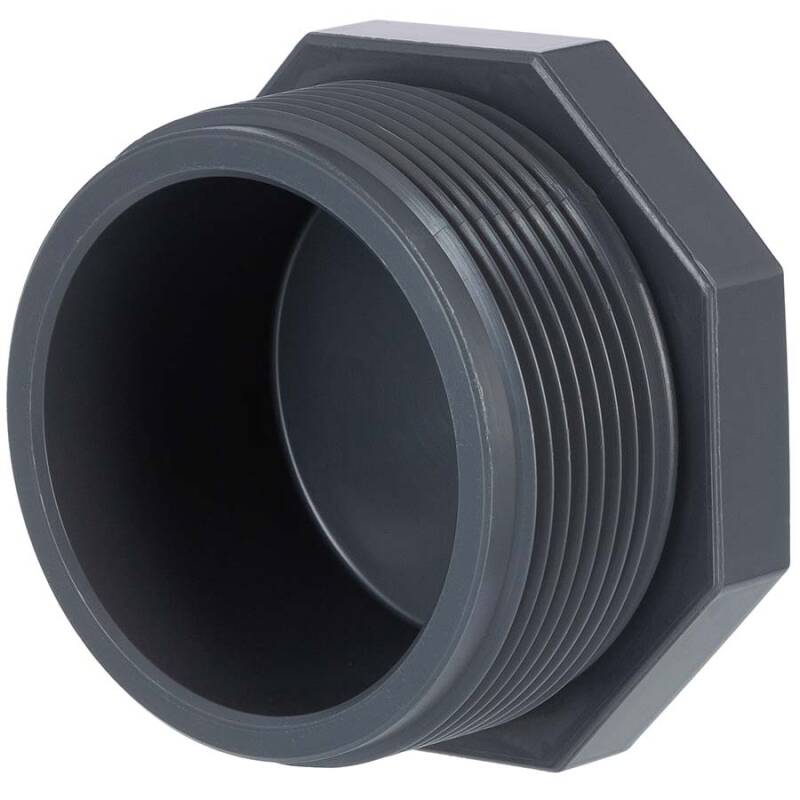

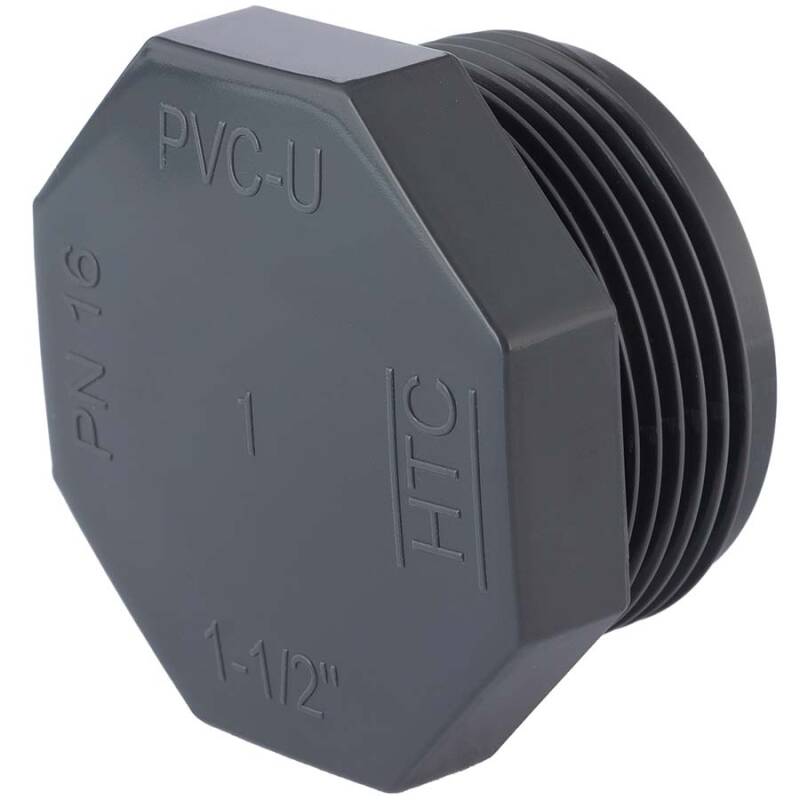

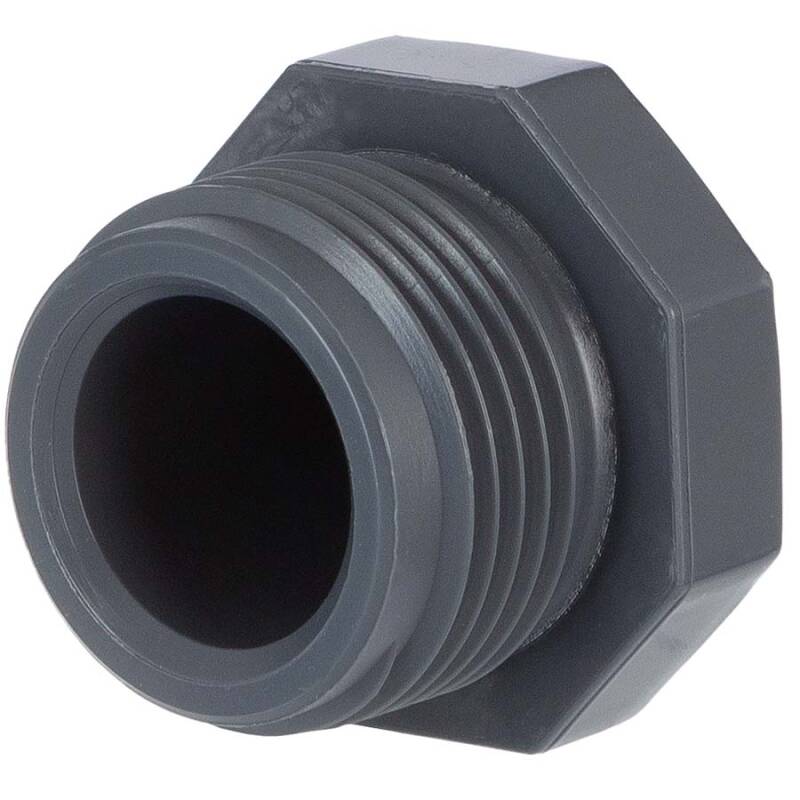

U-PVC male threaded end cap

SKU: AF0817
Auswahl Steuerzone / Lieferland
from
0,36 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
Variants

Product picture
Item no.
Variation
D
G
L
L1
Material
Price
Quantity

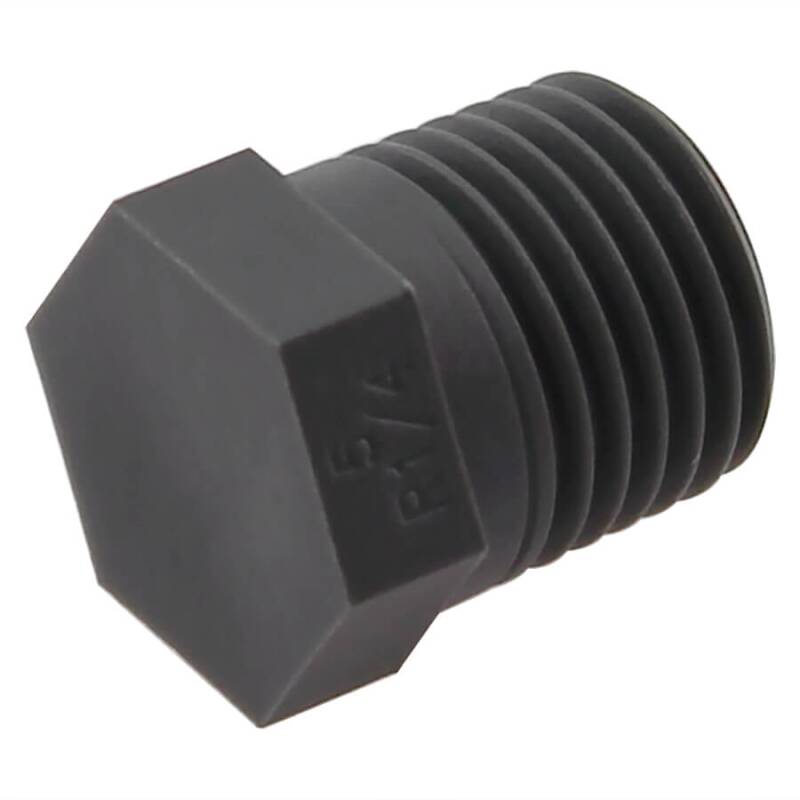

PA6 male threaded end cap R 1/8"
AF0817.000.R09
1/8"
10
R 1/8" (9,73mm)
12
8/5
PA6
0,55 €*
pc.:
PA6 male threaded end cap R 1/4"
AF0817.000.R12
1/4"
14
R 1/4" (13,16mm)
17
12/9
PA6
0,73 €*
pc.:
U-PVC male threaded end cap 1/4"
AF0817.000.012
1/4"
17
1/4 (13,16mm)
18
10
PVC-U
0,86 €*
pc.:
U-PVC male threaded end cap 3/8"
AF0817.000.016
3/8"
24
3/8" (16,66mm)
20
13
PVC-U
0,57 €*
pc.:
U-PVC male threaded end cap 1/2"
AF0817.000.020
1/2"
27
1/2" (20,96mm)
23,5
13,5
PVC-U
0,36 €*
pc.:
U-PVC male threaded end cap 3/4"
AF0817.000.025
3/4"
32
3/4" (26,44mm)
26
15,5
PVC-U
0,50 €*
pc.:
U-PVC male threaded end cap 1"
AF0817.000.032
1"
38
1" (33,25mm)
30
18
PVC-U
0,65 €*
pc.:

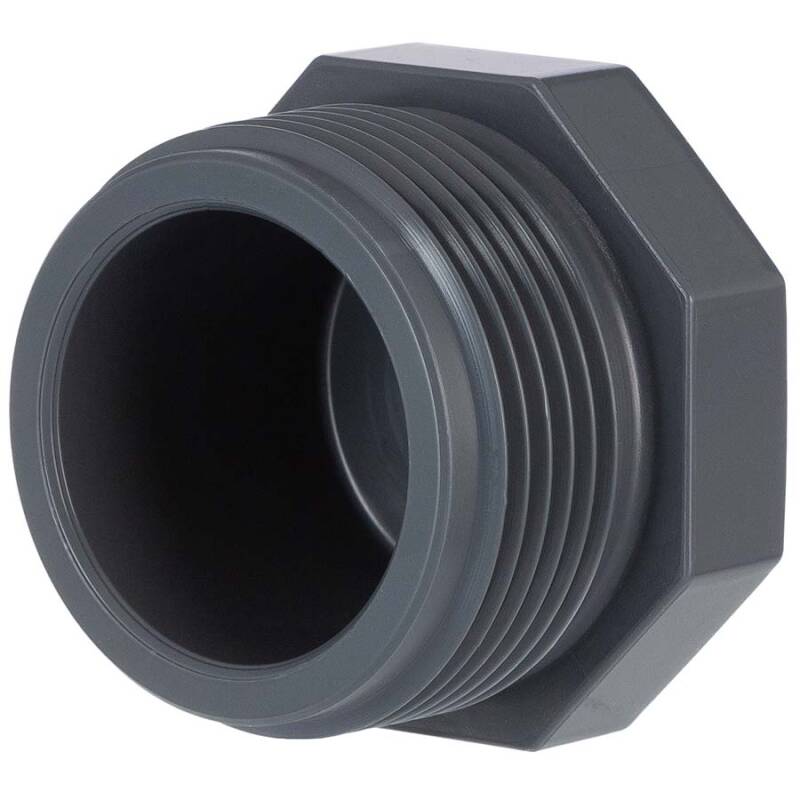

U-PVC male threaded end cap 1 1/4"
AF0817.000.040
1 1/4"
46
1 1/4" (41,91mm)
34
20,5
PVC-U
0,76 €*
pc.:

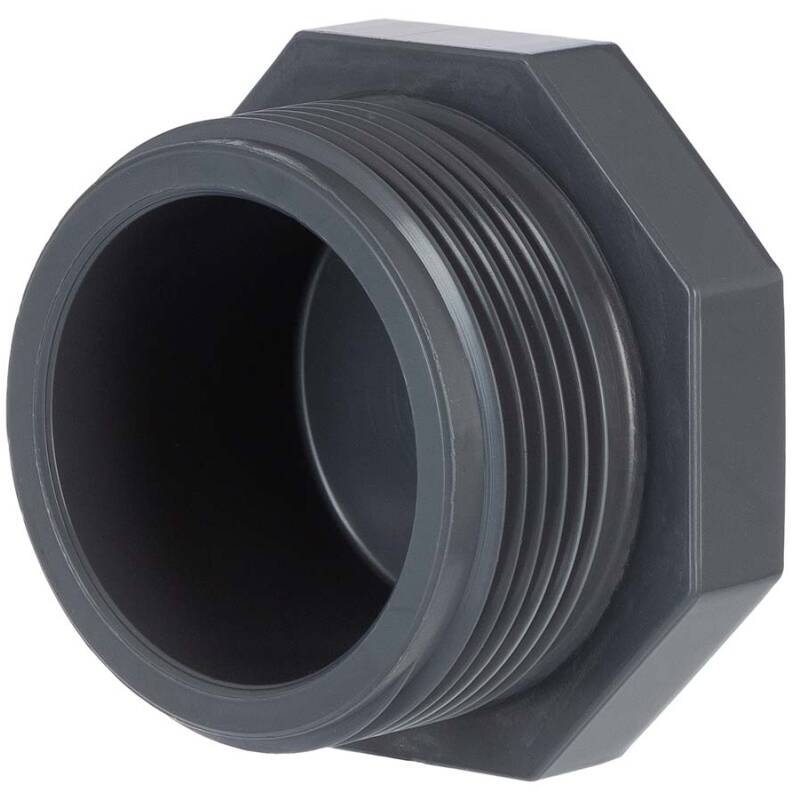

U-PVC male threaded end cap 1 1/2"
AF0817.000.050
1 1/2"
55
1 1/2" (47,81mm)
34
20,5
PVC-U
1,17 €*
pc.:
U-PVC male threaded end cap 2"
AF0817.000.063
2"
65
2" (59,81mm)
39
25
PVC-U
1,68 €*
pc.:

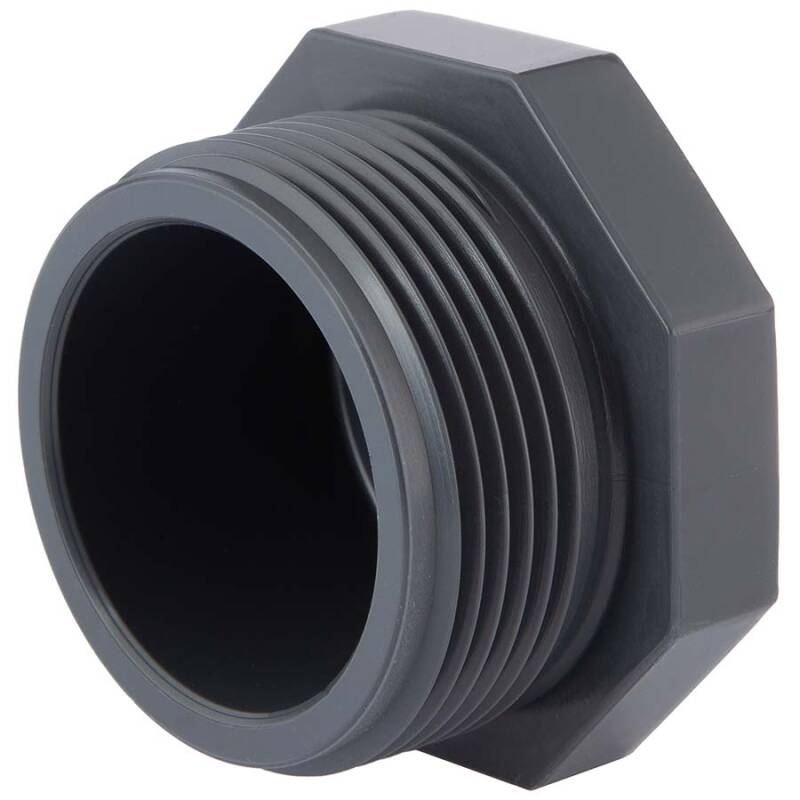

U-PVC male threaded end cap 2 1/2"
AF0817.000.075
2 1/2"
85
2 1/2" (75,18mm)
50
30
PVC-U
3,96 €*
pc.:
U-PVC male threaded end cap 3"
AF0817.000.090
3"
100
3" (87,88mm)
59
33
PVC-U
6,40 €*
pc.:
U-PVC male threaded end cap 4"
AF0817.000.110
4"
130
4" (113,03mm)
68
38
PVC-U
10,92 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Endkappe Gewindestopfen Aussengewinde

Anschluss:
Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°CMedium Wasser bis 2", ab 2 1/2" max. 10 bar
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:
Pikto
Qualität Legende:
HTC-Indrustrie Qualitätslogo
Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie.
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
