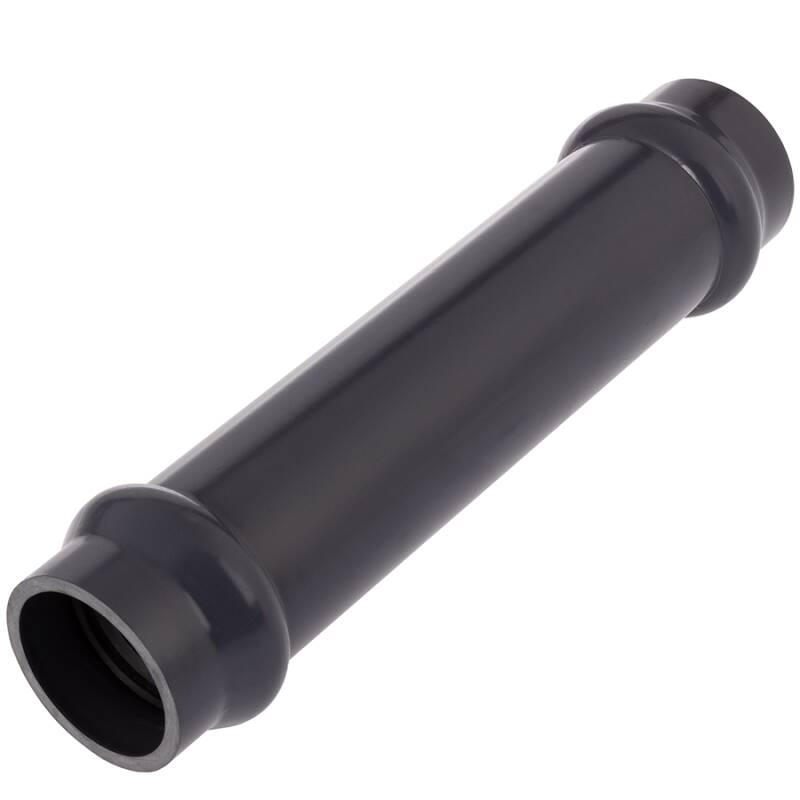

U-PVC sliding repairing fitting with double elastic gasket

Item number: AF0111

10,64 €

including 19% VAT., plus shipping

Choose your delivery country Germany

How to measure a threaded fitting

View item details in PDF

Item no.	Variation	d	E	L	PN	Weight	Quality	Price	Quantity
AF0111.000.050	50mm	50	73	297	10	378		10,64 €^*	pc:
AF0111.000.063	63mm	63	92	270	10	360		11,42 €^*	pc.:
AF0111.000.075	75mm	75	113	300	10	540		14,71 €^*	pc.:
AF0111.000.090	90mm	90	123	330	10	820		14,40 €^*	pc.:
AF0111.000.110	110mm	110	137	368	10	720		15,26 €^*	pc.:
AF0111.000.125	125mm	125	163	395	10	1310		20,31 €^*	pc.:
AF0111.000.160	160mm	160	195	344	10	1690		30,63 €^*	pc.:
A-111-200	200mm	200	236	545	10	4320		44,93 €^*	pc.:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

PVC-U Reparaturmuffe Überschiebmuffe Doppeldichtlippe

Reparaturmuffe oder Verbindungsmuffe für den dauerhaften Einsatz bei Druckrohren ohne Klebung. Die Verbindung und Abdichtung erfolgt über die integrierte Doppeldichtlippe aus EPDM und ermöglicht eine Druckverbindung gemäß hinterlegten max. Druckwerten ().

Anschluss:

2fach Dichtlippe ohne Stoßkante mittig

Temperatur:

bis 45°C konstant, kurzzeitig 60°C

Arbeitsdruck (PN):

max. 10 bar bei 20°C

Material:

PVC-U

Dichtung:

EPDM

Farbe:

Grau

Einsatzbereich:
