Variants

Item no.
Variation
A
B
C
D
Price
Quantity
AL0201.025.020
25 x 20mm
25
20
19
18
0,17 €*
pc:
AL0201.032.020
32 x 20mm
32
20
22
17
0,20 €*
pc:
AL0201.032.025
32 x 25mm
32
25
21
20
0,20 €*
pc:
AL0201.040.020
40 x 20mm
40
20
28,5
20
0,27 €*
pc:
AL0201.040.025
40 x 25mm
40
25
28,5
20
0,27 €*
pc:
AL0201.040.032
40 x 32mm
40
32
26
23
0,27 €*
pc:
AL0201.050.020
50 x 20mm
50
20
31
20
0,31 €*
pc:
AL0201.050.025
50 x 25mm
50
25
32
19
0,31 €*
pc:
AL0201.050.032
50 x 32mm
50
32
31
21
0,31 €*
pc:
AL0201.050.040
50 x 40mm
50
40
30
27
0,31 €*
pc:
AL0201.063.025
63 x 25mm
63
25
37
19
0,51 €*
pc:
AL0201.063.032
63 x 32mm
63
32
36
22
0,51 €*
pc:
AL0201.063.040
63 x 40mm
63
40
36
29
0,51 €*
pc:
AL0201.063.050
63 x 50mm
63
50
38
32
0,51 €*
pc:
AL0201.075.063
75 x 63mm
75
63
44
38
1,12 €*
pc:
AL0201.090.075
90 x 75mm
90
75
51
45
1,77 €*
AL0201.110.090
110 x 90mm
110
90
61
52
2,61 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

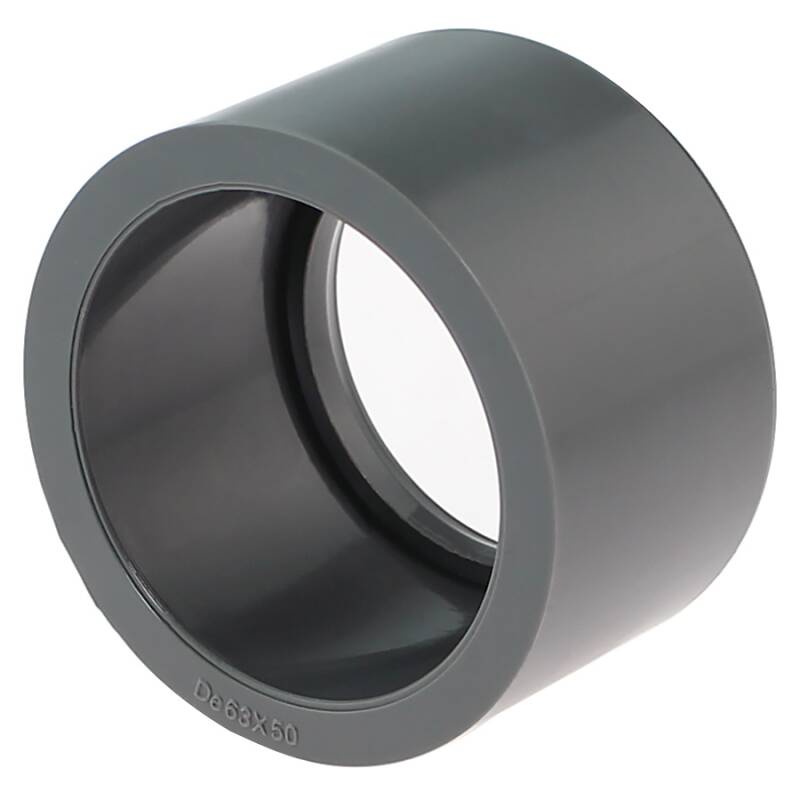

PVC-U Reduzierring, Klebestutzen x Klebemuffe ECO

Anschluss:
Klebestutzen x Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 6 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:
Pikto
Qualität Legende:
ECO Qualitätslogo
ECO ist günstig und abgestimmt auf die Bedürfnisse im Teich-und Poolbau, Beregnungs- sowie Niederdruckanlagen im Allgemeinen.

Reduzieren mit Reduzierring

Reduzieren mit Reduzierring

Der Reduzierring wird in eine Klebemuffe eingeklebt und reduziert den Durchmesser.
Im Beispiel sehen Sie eine Klebemuffe 50mm sowie einen Reduzierring 50/20mm. Sie können nun mit einem Rohr A-ø 20mm weiterarbeiten oder auch z.B. eine Schlauchtülle 20mm einkleben.
