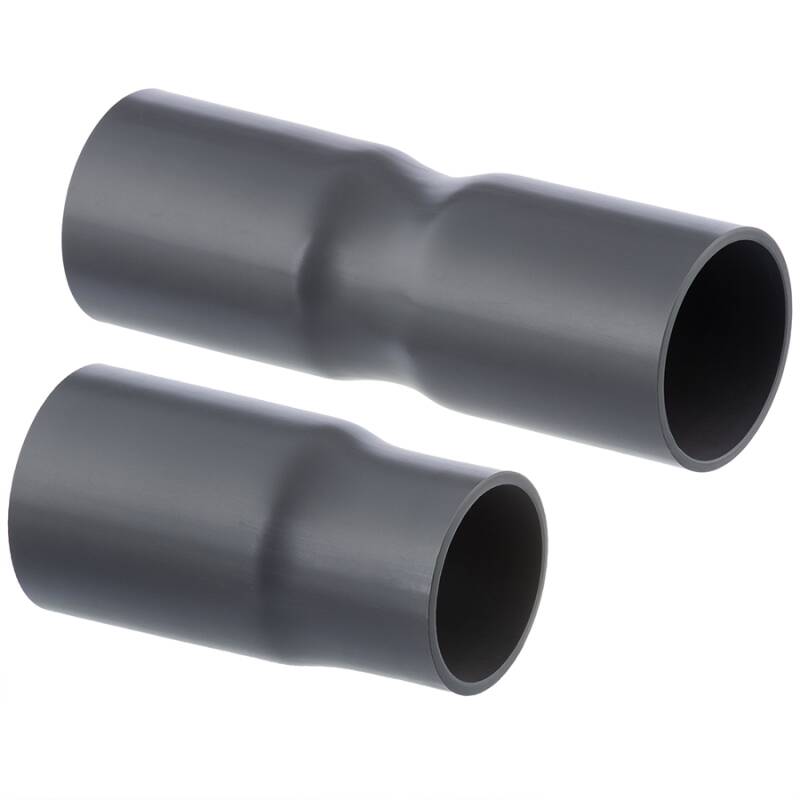

U-PVC solvent socket connector long
1,07 €

including 19% VAT., plus shipping

Item number: AF0113

Product picture Item no. Variation Price Quantity
U-PVC solvent socket connector long - adapter 50mm male x female socket AF0113.S50.M50 50 x 50mm 1,07 €*

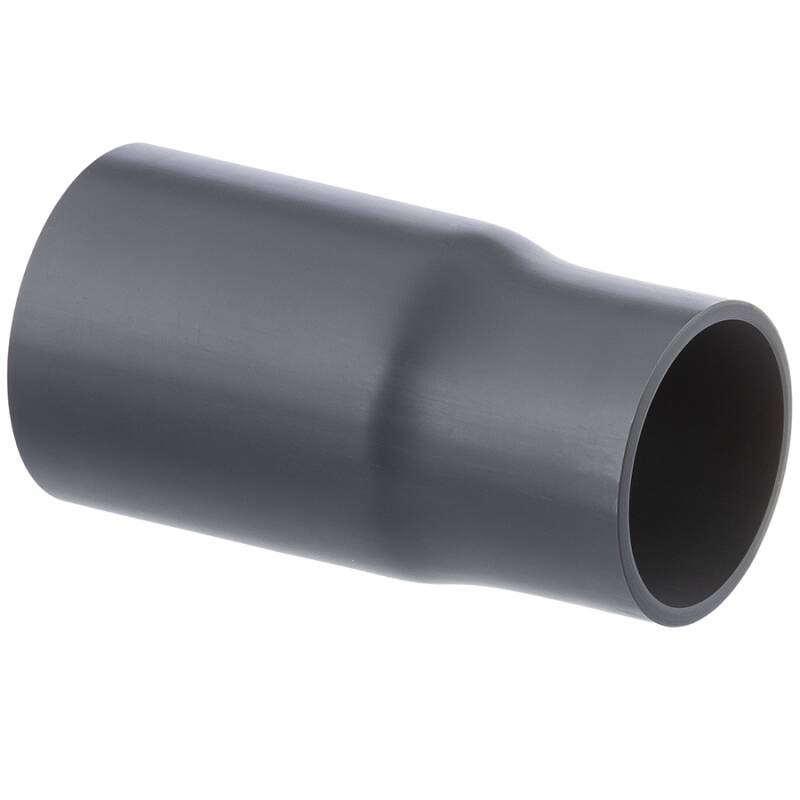

U-PVC solvent socket connector long - adapter 63mm male x female socket AF0113.S63.M63 63 x 63mm 1,50 €*

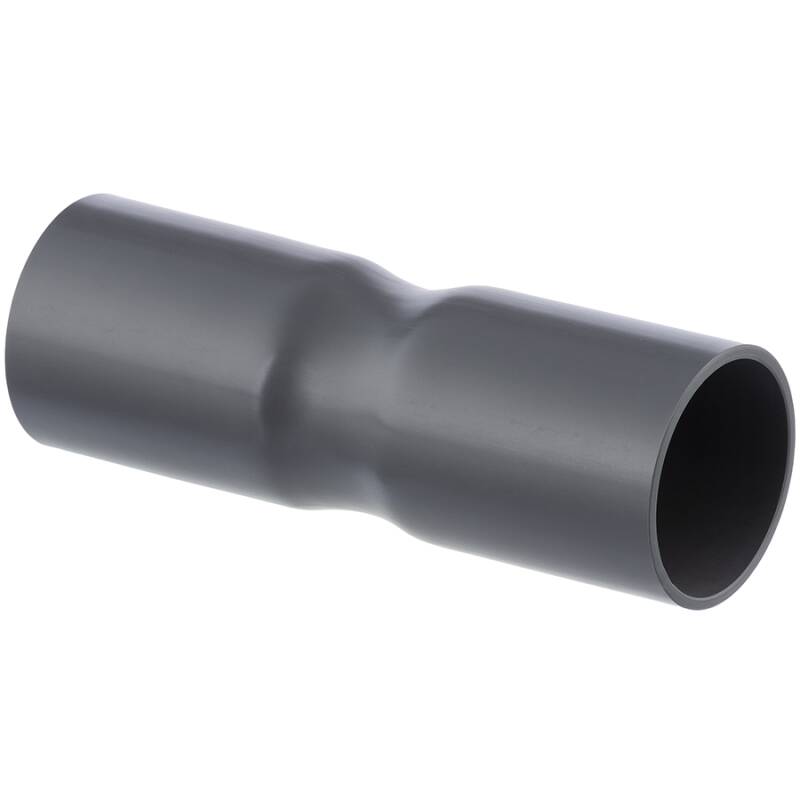

U-PVC solvent socket connector long - double socket 50mm AF0113.000.050 50mm 1,07 €*
U-PVC solvent socket connector long - double socket 63mm AF0113.000.063 63mm 1,50 €*

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Muffe, Doppelmuffe, Muffe/Stutzen-Kombination

Die Doppelmuffe lang bzw. die Muffe/Stutzen-Kombination sind ideal zur Aufnahme oder Anbindung von Poolflex Klebeschlauch.

Anschluss:
Doppelklebemuffe, Klebemuffe/-stutzen (je nach Ausführung)
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (
PN
Pressure Nominal, englisch für Nenndruck, der Druck (in bar), für den genormte Rohrleitungsteile ausgelegt sind
):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:
Wichtig: Im Gegensatz zu Spritzgussfittings werden diese Fittings aus Rohr thermisch verformt. Die Formmaße sowie die Ausführung können deshalb z.T. leicht abweichen.

orange dot Download

DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
