Variants

Item no.
Variation
A
B
C
D
E
F
G
Price
Quantity
AF0701.000.020
20mm
27
20
15
34
19
6
16
0,52 €*
pc:
AF0701.000.025
25mm
33
25
22
41
22
7
19
0,55 €*
pc:
AF0701.000.032
32mm
41
32
25
50
25
7
22
0,62 €*
pc:
AF0701.000.040
40mm
50
40
36
61
29
8
26
0,95 €*
pc:
AF0701.000.050
50mm
61
50
40
73
34,5
8,5
32
1,55 €*
pc:
AF0701.000.063
63mm
76,5
63
50
91
42
9
38
1,64 €*
pc:
AF0701.000.075
75mm
85
75
68
97,5
48,5
10
45
1,92 €*
pc:
AF0701.000.090
90mm
105
90
80
121
57
10,5
50
2,83 €*
pc:
AF0701.000.110
110mm
130
110
103
150
69
13
61
4,56 €*
pc:
AF0701.000.125
125mm
147
125
119
170
75
13
69
7,81 €*
pc:
AF0701.000.160
160mm
188
160
150
213
90
16
86
14,13 €*
pc:
AF0701.000.200
200mm
231
200
196
255
112
18,5
104
31,01 €*
AF0701.000.315
315mm
345
315
288
376
177
33
168
66,65 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

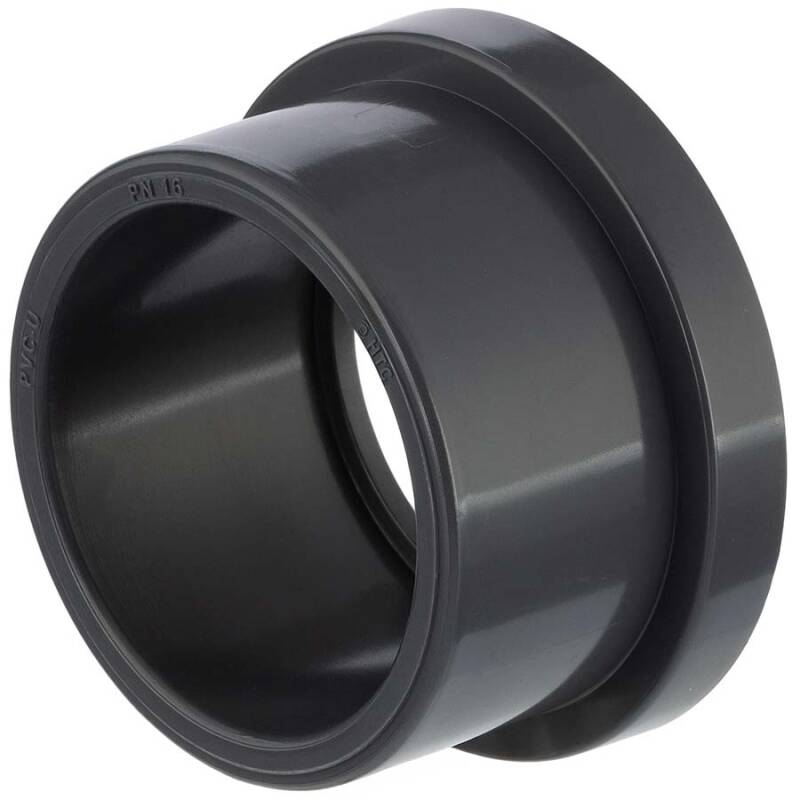

PVC-U Bundbuchse für Losflansch

Anschluss:
Bundbuchse mit Klebemuffe, in Verbindung mit Losflansch einzusetzen
technischer Hinweis:
ausschließlich für den Einsatz mit Losflansch verwendbar -
kein Ersatzteil von Armaturen o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser | ab 160mm max. 10 bar
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:

DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Montageanleitung für Flanschverbindungen
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings

Others

There are currently no media files available.
