Variants

Item no.
Variation
D
DN
W
Length
Weight
Price
Quantity
AT0110.000.020
110mm - Länge 20cm
110
max. 100,4
mind. 4,8
200 ±1%
408
11,80 €*
Pipe:
AT0110.040.040
110mm - Länge 40cm
110
max. 100,4
mind. 4,8
400 ±1%
816
23,62 €*
Pipe:
AT0110.60
110mm - Länge 60cm
110
max. 100,4
mind. 4,8
600 ±1%
1224
35,43 €*
Pipe:
AT0110.80
110mm - Länge 80cm
110
max. 100,4
mind. 4,8
800 ±1%
1632
47,24 €*
Pipe:
AT0110.100
110mm - Länge 100cm
110
max. 100,4
mind. 4,8
1000 ±1%
2040
59,05 €*
Pipe:
AT0110.120
110mm - Länge 120cm
110
max. 100,4
mind. 4,8
1200 ±1%
2448
Keine Express-Lieferung
73,83 €*
Pipe:
AT0110.140
110mm - Länge 140cm
110
max. 100,4
mind. 4,8
1400 ±1%
2856
Keine Express-Lieferung
85,64 €*
Pipe:
AT0110.160
110mm - Länge 160cm
110
max. 100,4
mind. 4,8
1600 ±1%
3264
Keine Express-Lieferung
97,45 €*
Pipe:
AT0110.180
110mm - Länge 180cm
110
max. 100,4
mind. 4,8
1800 ±1%
3672
Keine Express-Lieferung
109,27 €*
Pipe:
AT0110.200
110mm - Länge 200cm
110
max. 100,4
mind. 4,8
2000 ±1%
4080
Keine Express-Lieferung
121,07 €*
Pipe:
AT0110.300
110mm - Länge 300cm
110
max. 100,4
mind. 4,8
3000 ±1%
6120
177,14 €*
Pipe:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

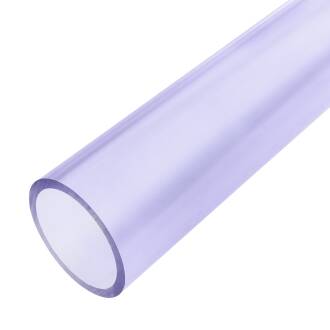

PVC-U Rohr transparent 110 x 5,0mm - 10 bar

Variante:
PVC-U Rohr transparent
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PVC-U
Hersteller:
Farbe:
transparent, bläulich
  • PVC-U Rohr transparent ist verklebbar mit jedem handelsüblichen PVC-U Kleber
  • Farbe: transparent bläulich
  • fertigungsbedingt können Schlieren bzw. leichte Kratzer entstehen
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD PVC-U Rohr Zertifikat B2 brennbare Baustoffe

DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD RoHS Konformitätserklärung - HTC
