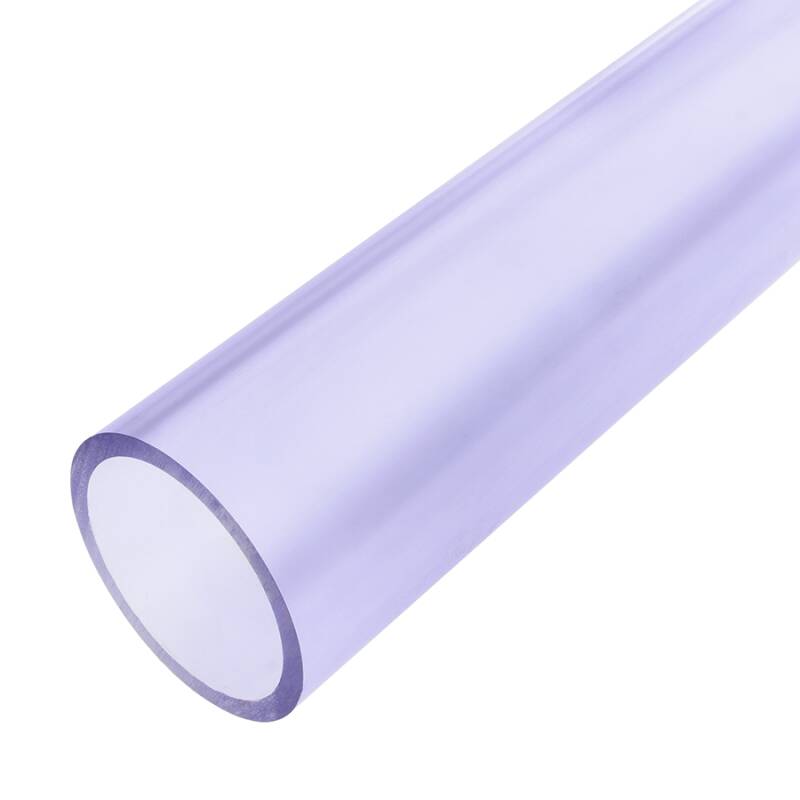

U-PVC trasparent pipe 25 x 2,5mm - PN 16

SKU: AT0025
Auswahl Steuerzone / Lieferland
Choose the variation
Transparent 25 x 2,5mm - PN16
from
1,07 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting

wichtiger Hinweis

Rohrzuschnitt wird speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf.
  • Available immediately
   Variants

Item no.
Variation
D
DN
W
Length
Price
Quantity
AT0025.025.020
25mm - Länge 20cm
25
max. 21
mind. 2,0
200 ±1%
1,07 €*
Pipe:
AT0025.025.040
25mm - Länge 40cm
25
max. 21
mind. 2,0
400 ±1%
2,14 €*
Pipe:
AT0025.025.060
25mm - Länge 60cm
25
max. 21
mind. 2,0
600 ±1%
3,22 €*
Pipe:
AT0025.025.080
25mm - Länge 80cm
25
max. 21
mind. 2,0
800 ±1%
4,30 €*
Pipe:
AT0025.025.100
25mm - Länge 100cm
25
max. 21
mind. 2,0
1000 ±1%
5,37 €*
Pipe:
AT0025.025.120
25mm - Länge 120cm
25
max. 21
mind. 2,0
1200 ±1%
hat Überlänge
9,41 €*
Pipe:
AT0025.025.140
25mm - Länge 140cm
25
max. 21
mind. 2,0
1400 ±1%
hat Überlänge
10,48 €*
Pipe:
AT0025.025.160
25mm - Länge 160cm
25
max. 21
mind. 2,0
1600 ±1%
hat Überlänge
11,57 €*
Pipe:
AT0025.025.180
25mm - Länge 180cm
25
max. 21
mind. 2,0
1800 ±1%
hat Überlänge
12,64 €*
Pipe:
AT0025.025.200
25mm - Länge 200cm
25
max. 21
mind. 2,0
2000 ±1%
hat Überlänge
13,71 €*
Pipe:
AT0025.025.300
25mm - Länge 300cm
25
max. 21
mind. 2,0
3000 ±1%
19,21 €*
Pipe:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Transparent Pipe 25 x 2.0mm - PN 16 bar

Outer Diameter:
25mm
Wall Thickness:
min. 2.0mm
Temperature:
up to 45°C constant, short-term 60°C
Working Pressure:
PN 16 bar (DIN = DIN8062) (EN = EN 1452-2)
Material:
PVC-U
Color:
transparent, bluish
Print:
YES

Shipping cost information Germany pipe length 120cm - 200cm HTC Logo :
1 - 10 pipes shipping costs 9.90 EUR gross
11 - 20 pipes shipping costs 19.80 EUR gross
21 - 30 pipes shipping costs 29.70 EUR gross
31 - 40 pipes shipping costs 39.60 EUR gross
41 - 50 pipes shipping costs 49.50 EUR gross


  • PVC-U transparent pipe can be bonded with any standard PVC-U adhesive
  • Color: transparent bluish
  • Due to the manufacturing process, streaks or slight scratches may occur
DOWNLOADRoHS confirmation HTC
DOWNLOAD Technical datasheet PVC-U transparent pipe 25 x 2.0mm, PN 16
DOWNLOAD PVC-U pipe certificate B2 combustible materials
DOWNLOAD Bonding PVC-U pipes and fittings
DOWNLOAD PVC-U technical characteristics
DOWNLOAD Chemical resistance of plastics
