Description

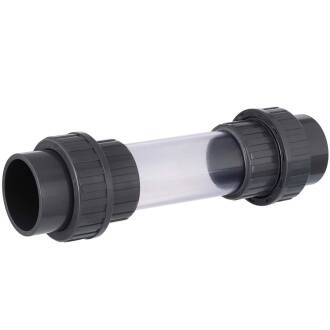

PVC-U Sight Glass Double Union Socket End
Connection:
Double union, solvent socket
Temperature:
up to 45°C constant, short-term 60°C
Operating Pressure (PN):
depending on version – see “max. bar”
Material:
PVC-U
O-ring:
NBR
Color:
Grey, body
transparent bluish
transparent bluish
UV Radiation Notice: Do not install in areas exposed to sunlight or UV light – risk of algae growth and discoloration of the transparent tube.
Printing Notice: The transparent pipe is printed at regular intervals with product-specific information, which may appear within the visible area of the sight glass.
- Industrial-grade sight glass / inspection glass for monitoring flow
- Double union with EPDM seal, 70 Shore hardness
- High-quality PVC-U glass tube from
- Easy removal from rigid pipe systems for cleaning purposes thanks to the double union design
Spare Parts Sight Glass Double Union Socket End AF0015
