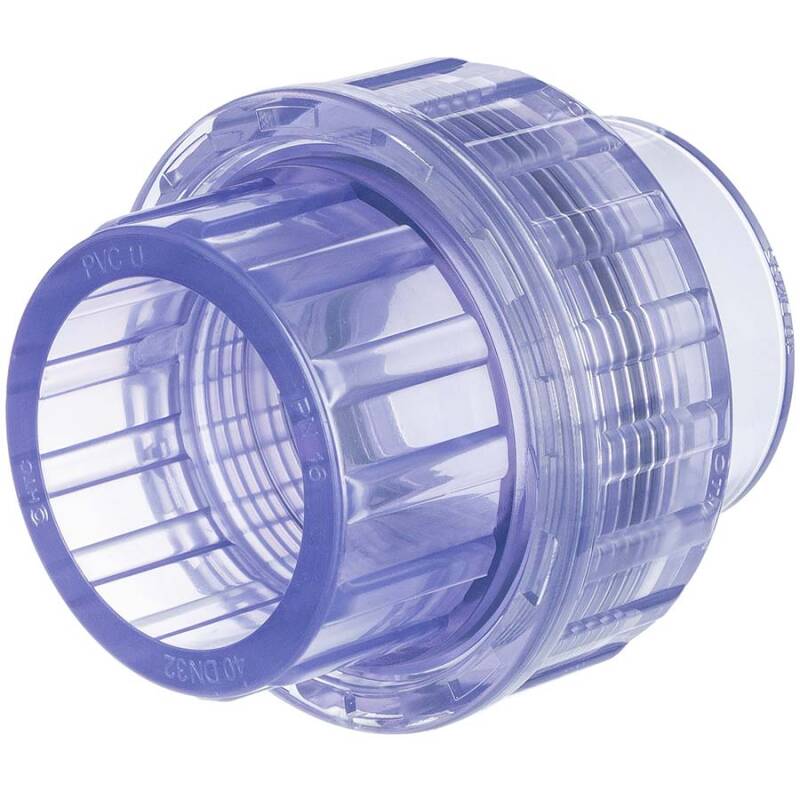

U-PVC trasparent solvent union

from
4,00 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
A
B
D
DN
E
F
G
Price
Quantity
AT0601.032.020
20 x 20mm
45
43
20
15
20
17
1" (33,25mm)
4,00 €*
pc:
AT0601.040.025
25 x 25mm
51
52
25
20
20
18
1 1/4" (41,91mm)
4,84 €*
pc:
AT0601.050.032
32 x 32mm
62
60,5
32
25
22
22
1 1/2" (47,81mm)
6,70 €*
pc:
AT0601.063.040
40 x 40mm
75
72
40
32
31
27
2" (59,61mm)
12,41 €*
pc:
AT0601.068.050
50 x 50mm
82
80
50
40
32
32
2 1/4" (65,71mm)
15,92 €*
pc:
AT0601.081.063
63 x 63mm
102
98
63
50
38
38
2 3/4" (81,53mm)
24,79 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Verschraubung Transparent, 2fach Klebemuffe

PVC-U Fittings und Rohr Transparent sind verklebbar wie PVC-U Grau o.ä. mit jedem handelsüblichen PVC-U Kleber und weisen identisch hohe Wertigkeiten auf.

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser, max. 10 bar ab 75mm
Material:
PVC-U
Farbe:
Transparent Bläulich
Dichtung O-Ring:
NBR, Farbe Schwarz

Ersatzteile Verschraubung AT0601

DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
