V4A ball valve 2-piece incl. mounting plate ISO 5211 2-fold internal thread

SKU: EA0004
Auswahl Steuerzone / Lieferland
from
15,46 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
DN
G
h
H
H1
L
W
Price
Quantity
EA0004.000.012
1/4"
8
R 1/4" (13,16mm)
9
60,5
32,5
48
131,5
15,46 €*
pc.:
EA0004.000.016
3/8"
10
R 3/8" (16,66mm)
9
60,5
32,5
48
131,5
16,17 €*
pc.:
EA0004.000.020
1/2"
15
R 1/2" (20,96mm)
9
63
35
56
131,5
17,28 €*
pc.:
EA0004.000.025
3/4"
20
R 3/4" (26,44mm)
9
66
39,5
64
131,5
20,92 €*
pc.:
EA0004.000.032
1"
25
R 1" (33,25mm)
11
77
45
76
161,5
31,63 €*
pc.:
EA0004.000.040
1 1/4"
32
R 1 1/4" (41,91mm)
11
83
50,5
87
170,5
48,91 €*
pc.:
EA0004.000.050
1 1/2"
38
R 1 1/2" (47,81mm)
14
91
57,5
98
170,5
73,22 €*
pc.:
EA0004.000.063
2"
50
R 2" (59,61mm)
14
100
66,5
118
170,5
104,64 €*

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

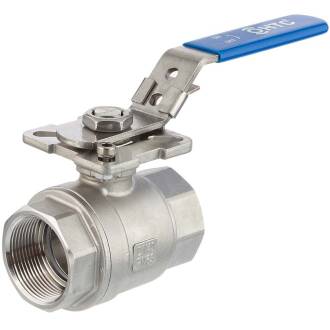

V4A stainless steel ball valve 2-piece incl. mounting plate ISO 5211 2-fold female thread

Our V4A ball valve 2-piece 2-fold female thread with handle and mounting plate leaves all options open to you. By simply removing the handle, the ball valve can be converted from manual operation to pneumatic or electric operation using the mounting plate to ISO 5211. In individual cases, a reducing sleeve (adapter) is required to compensate for the dimensional differences between the ball valve shaft and the mounting of the pneumatic or electric actuator.

Connection:
2-way female thread
Handling:
Lever Device-Locking-System and mounting plate ISO 5211
Thread:
BSP pipe thread R (conical) DIN 2999, not self-sealing, sealing with hemp, sealing paste or similar.
Temperature:
-20°C to 180°C
Working pressure (PN):
max. 1000 PSI | 63 bar | W.O.G. (water, oil, gas)
Material: stainless steel
Stainless steel AISI 316 V4A (UNE EN 10213-4 / DIN 1.4408)
Gasket:
PTFE (Teflon)
Passage:
full port - see DN
DIN:
Dimensions conform to ISO 4144, connection thread to ISO 7/1 (DIN 2999 / BS 21)
Color:
Grey stainless steel, handle cover color: Blue



Druck_Temperatur

The key data

  • Working temperature -20°C to 200°C
  • Working pressure PN 20 bar (300 psi)
  • Dimensioning according to ISO 4144
  • Whitworth thread, CNC machined in accordance with ISO 7/1 (DIN 2999 / BS21)
  • Manufacturing standard UNE EN 10213-4, tolerance DIN 1.4408

    • Stainless steel (according to EN 10020) is a designation for alloyed or unalloyed steels with a special degree of purity. Steels whose sulphur and phosphorus content (so-called iron companions) does not exceed 0.025%.
    Alloy 316 is a standard steel grade with molybdenum. The molybdenum gives alloy 316 better corrosion resistance than 304, in particular greater resistance to pitting and crevice corrosion in chloride-containing media. The austenitic structure gives this alloy a high degree of toughness, even at very low temperatures, high creep strength, creep rupture strength and tensile strength at elevated temperatures. The alloy is colloquially known as V4A stainless steel.

    Stainless steel AISI 316 | material 1.4401 (X5CrNiMo17-12-2) (V4A) Application: According to DVGW worksheet W541 (basis for the requirements for stainless steel pipes for domestic drinking water installations), the steel material 1.4401 is the most commonly used.
    It can be used in a wide range of applications in the chemical, petrochemical and natural gas industries, the food industry, corrosive environments and extreme temperatures ... Fluid technology, boilers, condensers, heat exchangers, reactors ...

DOWNLOADRoHS Confirmation HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
