All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

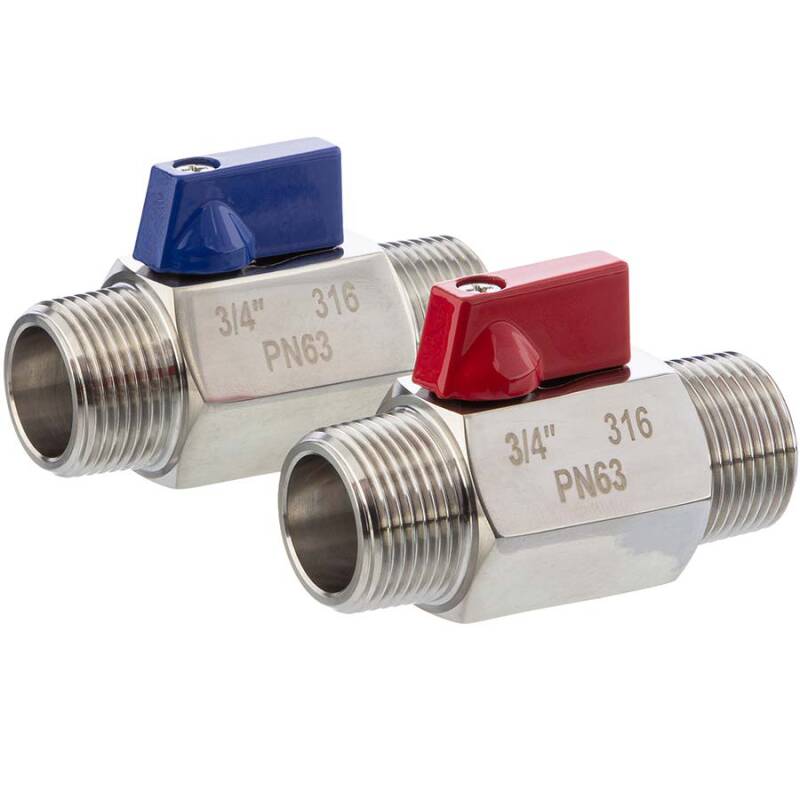

Stainless Steel Mini Ball Valve with Double Male Thread
Mini Ball Valve with Double Male Thread, Stainless Steel,
Quality AISI 316, V4A
Connection:
Double Male Thread
Thread:
BSP Pipe Thread R (tapered) DIN 2999, non-self-sealing, seal with hemp, sealing paste or similar
Temperature:
-20°C to 180°C
Working Pressure (PN):
max. 1000 PSI | 63 bar | W.O.G. (water, oil, gas)
Material:
Stainless Steel AISI 316 V4A (UNE EN 10213-4 / DIN 1.4408)
Seal:
PTFE (Teflon)
Flow:
Reduced flow
Standards:
Dimensions according to ISO 4144, connection threads according to ISO 7/1 (DIN 2999 / BS 21)
Color:
Stainless Steel Grey, handle cover color: Red or Blue
Key Specifications
- Operating temperature: -20°C to 200°C
- Working pressure PN: 20 bar (300 psi)
- Dimensions according to ISO 4144
- Whitworth threads, CNC machined according to ISO 7/1 (DIN 2999 / BS21)
- Manufacturing standard UNE EN 10213-4, tolerance DIN 1.4408
Stainless Steel (according to EN 10020) refers to alloyed or unalloyed steels with a special purity grade. Steels whose sulfur and phosphorus content (so-called iron companions) does not exceed 0.025%.
Alloy 316 is a standard steel type with molybdenum, which provides better corrosion resistance than 304, especially higher resistance to pitting and crevice corrosion in chloride-containing media. Its austenitic structure provides high toughness even at very low temperatures, high creep resistance, long-term strength, and tensile strength at elevated temperatures. This alloy is commonly known as V4A Stainless Steel.
Stainless Steel AISI 316 | Material 1.4401 (X5CrNiMo17-12-2) (V4A) Application: According to DVGW Worksheet W541 (basis for the requirements for stainless steel pipes for drinking water installations), the material 1.4401 is most commonly used.
Applicable in various chemical, petrochemical, and natural gas industry applications, food industry, corrosive environments, and extreme temperatures ... fluid technology, boilers, condensers, heat exchangers, reactors ...
