Variants

Item no.
Variation
B
D
DN
L
M
S
SW
Price
Quantity
EZ0002.015.019
15 - 19mm
20
M8 | M10
15 - 19
66
M6
1,8
13
2,74 €*
EZ0002.020.025
20 - 25mm
20
M8 | M10
20 - 25
69
M6
1,8
13
2,98 €*
EZ0002.026.030
26 - 30mm
23
M8 | M10
26 - 30
75
M6
1,8
13
3,38 €*
pc.:
EZ0002.032.036
32 - 36mm
20
M8 | M10
32 - 36
82
M6
1,8
13
3,87 €*
EZ0002.038.043
38 - 43mm
20
M8 | M10
38 - 43
88
M6
1,8
13
4,11 €*
EZ0002.047.051
47 - 51mm
20
M8 | M10
47 - 51
97
M6
1,8
13
4,33 €*
pc.:
EZ0002.053.058
53 - 58mm
20
M8 | M10
53 - 58
104
M6
1,8
13
4,52 €*
EZ0002.060.064
60 - 64mm
20
M8 | M10
60 - 64
114
M6
1,8
13
4,78 €*
pc.:
EZ0002.075.080
75 - 80mm
20
M8 | M10
75 - 80
125
M6
1,8
13
5,66 €*
EZ0002.087.092
87 - 92mm
20
M8 | M10
87 - 92
140
M6
1,8
13
6,08 €*
pc.:
EZ0002.107.112
107 - 112mm
20
M8 | M10
107 - 112
158
M6
1,8
13
6,84 €*
EZ0002.125.130
125 - 130mm
20
M8 | M10
123 - 131
173
M6
2,0
13
7,69 €*
pc.:
EZ0002.158.166
158 - 166mm
20
M8 | M10
158 - 166
210
M6
2,0
13
8,95 €*
EZ0002.198.207
198 - 207mm
20
M8 | M10
198 - 207
270
M6
1,8
13
10,52 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

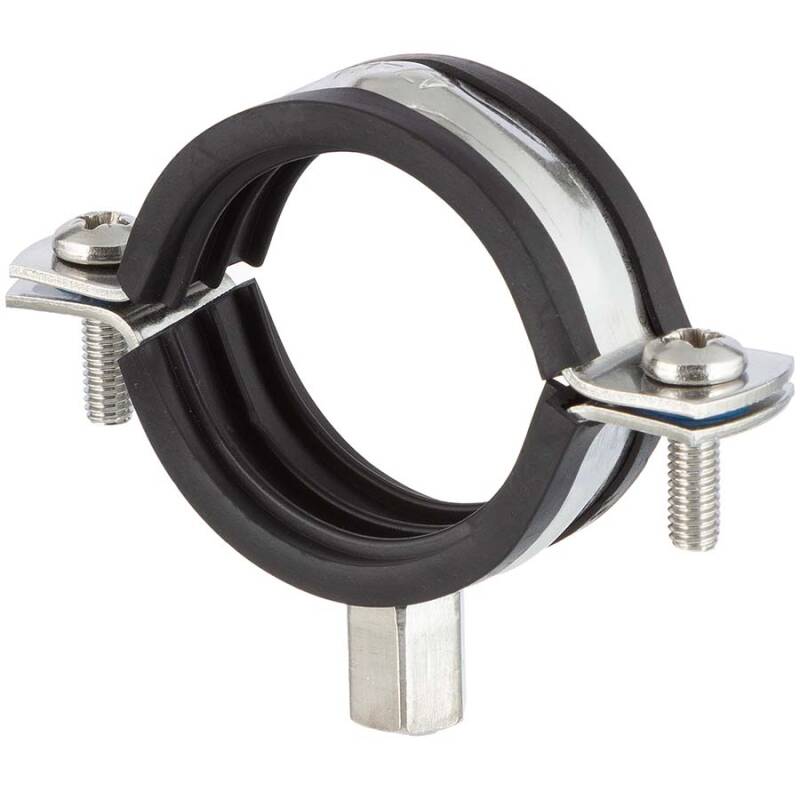

Zweiteilige Schelle Edelstahl V4A, mit Schallschutz EPDM nach DIN 4109

Hinweis: Drahtmaß: M8/M10 = Aufnahme von M8 und M10 Gewinden möglich, da M8 versenkt.
  • Schraubenkopf: Kombi-Kreuzschlitz
  • optimale Passung an alle Rohrtoleranzen
  • schalldämmende C-Profil-Einlage mit weitem Kantenumgriff nach DIN 4109
  • Material: Edelstahl V4A AISI 316 - check the difference!
