Variants

Product picture
Item no.
Variation
D
D1
DN
L
L1
L2
Price
Quantity

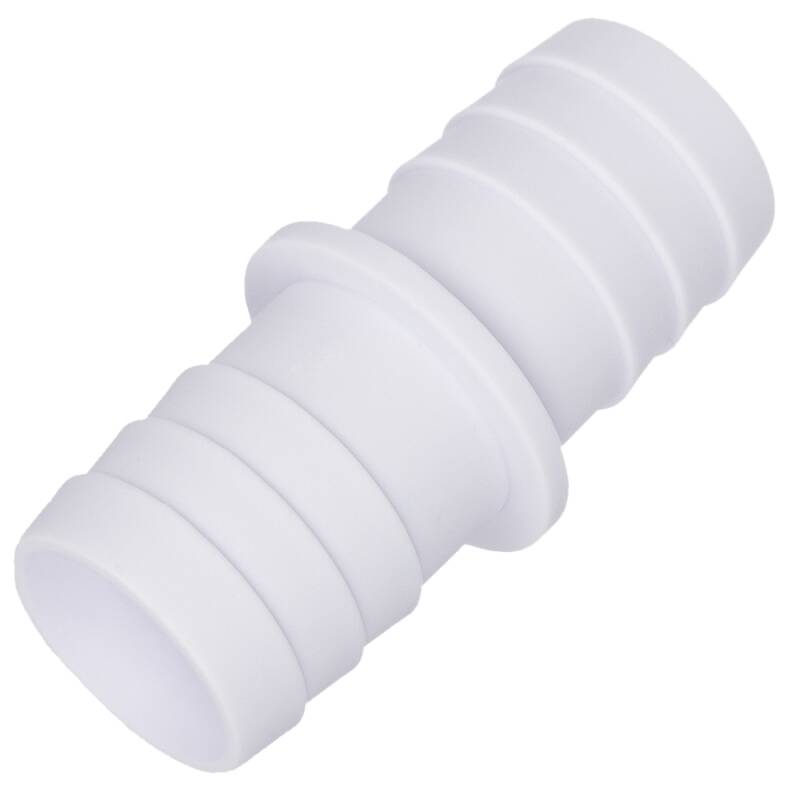

ABS hose tail white 32 x 32mm
NSA801.000.032
32 x 32mm
32 (31,5)
32 (31,5)
26
78
37
37
0,82 €*
pc.:
ABS hose tail white 38 x 38mm
NSA801.000.038
38 x 38mm
38 (37,5)
38 (37,5)
32
78
37
37
0,82 €*
pc.:
ABS hose tail white 38 x 32mm
NSA801.038.032
38 x 32mm
38 (37,5)
32 (31,5)
32 x 26
78
37
37
0,82 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

Kunststoff ABS Schlauchverbinder, beidseitig Schlauchtülle

Anschluss:
beidseitig Schlauchtülle
Temperatur:
0°C bis 60°C, kurzzeitig 80°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
ABS
Farbe:
Weiss
Einsatzbereich:

Wichtig: Der Schlauchverbinder dient der Verbindung zweier identischer Sclauchdurchmesser oder reduzier/erweitert auf die genannte Größe. Der Schlauch wird über die Tülle gezogen und mittels Schlauchschelle abgedichtet und fixiert.
Aussenmaß der Tülle ist Innenmaß des Schlauchs.
