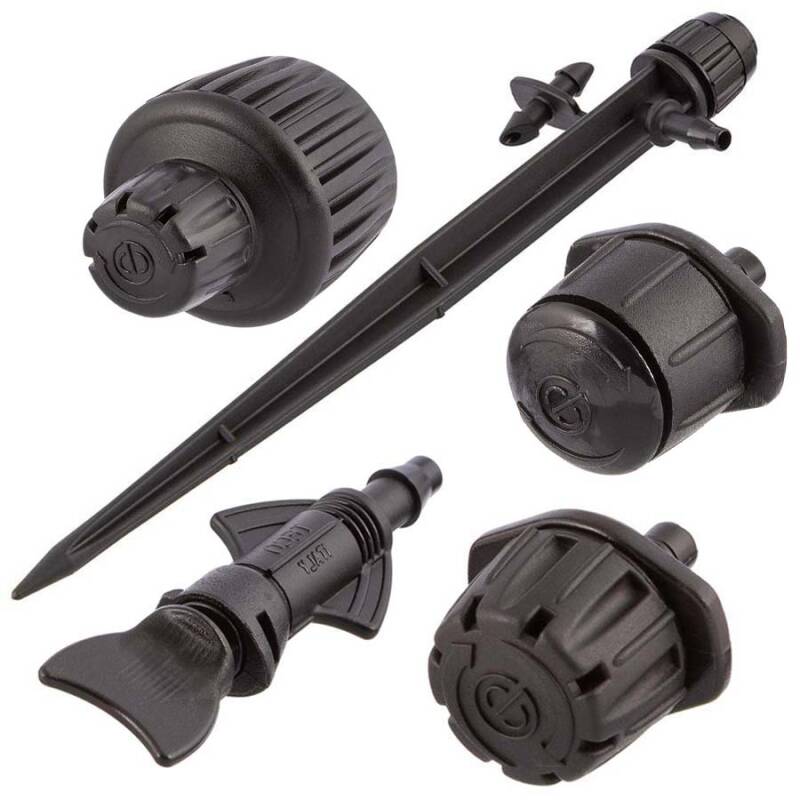

Adjustable Dripper, Bubbler

SKU: BW5074
Auswahl Steuerzone / Lieferland
from
0,43 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(9) { ["tabellen_ansicht"]=> string(1) "1" ["meta keywords"]=> string(80) "Tropfer,Steckdorn,Bubbler,Microirrigation,Microbewässerung,Bewässerung,Dripper" ["dimension_0010_variante"]=> string(0) "" ["alt_list"]=> string(1) "1" ["dimension_0075_l/h"]=> string(0) "" ["anbieterkennzeichnung_norma_es"]=> string(1) "1" ["dimension_0972_arbeitsdruck"]=> string(0) "" ["dimension_0993_wurfweite"]=> string(0) "" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
l/h
Working pressure
Casting distance
Price
Quantity
Adjustable Dripper, Bubbler TECO Ottima 360° Adjustable 8-Stream Dripper
BW5074.008.004
TECO Ottima 360° 8-Strahl Spitze
0-60
1-2 bar
0-0,8m
0,46 €*
Adjustable Dripper, Bubbler TECO Ottima 360° Adjustable 8-Stream Dripper Male Thread
BW5074.008.GW4
TECO Ottima 360° 8-Strahl 10-32UNF Gewinde
0-60
1-2 bar
0-0,8m
0,68 €*
Adjustable Dripper, Bubbler TECO Ottima 360° Adjustable 8-Stream Dripper 1/2" Female Thread
BW5074.008.020
TECO Ottima 360° 8-Strahl 1/2" Innengewinde
0-60
1-2 bar
0-0,8m
0,96 €*
Adjustable Dripper, Bubbler TECO Ottima 360° Adjustable 8-Stream Dripper Spike
BW5074.008.ESP
TECO Ottima 360° 8-Strahl 1/2" Erdspiess
0-60
1-2 bar
0-0,8m
1,04 €*
Adjustable Dripper, Bubbler TECO Ottima 360° Adjustable 8-Stream Dripper In-Line Spike
BW5074.008.ISP
TECO Ottima 360° 8-Strahl in Reihe Erdspiess
0-60
1-2 bar
0-0,8m
1,05 €*
Adjustable Dripper, Bubbler TECO Ottima 180° Adjustable 5-Stream Dripper
BW5074.005.004
TECO Ottima 180° 5-Strahl
0-60
1-2 bar
0-0,65m
0,46 €*
Adjustable Dripper, Bubbler TECO Ottima 180° Adjustable 5-Stream Dripper Male Thread
BW5074.005.GW4
TECO Ottima 180° 5-Strahl 10-32 UNF Gewinde
0-60
1-2 bar
0-0,65m
0,57 €*
Adjustable Dripper, Bubbler TECO Ottima 180° Adjustable 5-Stream Dripper Female Thread
BW5074.005.020
TECO Ottima 180° 5-Strahl 1/2" Innengewinde
0-60
1-2 bar
0-0,65m
0,96 €*
Adjustable Dripper, Bubbler TECO Ottima 180° Adjustable 5-Stream Dripper Spike
BW5074.005.ESP
TECO Ottima 180° 5-Strahl Erdspiess
0-60
1-2 bar
0-0,65m
1,04 €*
Adjustable Dripper, Bubbler TECO Ottima 180° Adjustable 5-Stream Dripper In-Line Spike
BW5074.005.ISP
TECO Ottima 180° 5-Strahl in Reihe Erdspiess
0-60
1-2 bar
0-0,65m
1,05 €*
Adjustable Dripper, Bubbler TECO Mini Bubbla 360° Adjustable Umbrella Bubbler Female Thread
BW5074.360.020
TECO Mini Bubbla 360° Umbrella 1/2" Innengewinde
0-119
1-2 bar
0-1,0m
0,96 €*
Adjustable Dripper, Bubbler TECO Delta Drip Adjustable Drip Emitter
BW5074.DEL.004
TECO Delta Drip Tropfer
0-7,5
0,5-1,5 bar
---
0,43 €*
Adjustable Dripper, Bubbler TECO Delta Drip Adjustable Drip Emitter Spike
BW5074.DEL.ESP
TECO Delta Drip Tropfer Erdspiess
0-7,5
0,5-1,5 bar
---
1,09 €*

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Tropper | Bubbler on Stake, Adjustable Emitter


Dial-A-FloTM emitters are adjustable from complete shut-off to maximum flow and can be disassembled for cleaning if needed.
By turning the cap, the emitters are transformed from a drip emitter into a bubbler. The cap is calibrated so you can select the desired flow rate.


Micro Irrigation with High Precision

  • Fan, Spray, and Umbrella (Rain) shapes
  • Flow and radius control via cap rotation
  • 155mm stake, up to 130mm connection
  • Operating pressure: 1 to 2.5 bar
  • Suitable for 4mm micro tubing

BW-109 Application

DIAL-A-FLOTM Dripper | Bubbler on Stake

The stake is fitted with a lateral barb connection for attaching 4mm micro tubing.

Spray Pattern

Position
Discharge
Radius
0
0 l/h
0
1
8.7 l/h
0
2
11.7 l/h
0
3
14.7 l/h
5
4
18.1 l/h
8
5
21.6 l/h
10
6
24.6 l/h
15
7
27.2 l/h
18
8
30.6 l/h
23

Fan Spray

Position
Discharge
Radius
0
0 l/h
0
1
18.9 l/h
0
2
31.0 l/h
30
3
46.9 l/h
60
4
51.4 l/h
76
5
56.0 l/h
91
6
59.0 l/h
106
7
62.4 l/h
122
8
64.7 l/h
132

Data provided for a pressure of approximately 2 bar.
Radius values are in cm.


Spray Patterns Comparison: Fan Spray - 360°, 8-Spray

Spray Pattern

Spray Pattern
