Adjustable or fixed nozzle
1,65 €

including 19% VAT., plus shipping

Item number: BR0003

Die Düse ist kompatibel für alle Hunter oder Rainbird Versenkregner
Product picture Item no. Variation Price Quantity

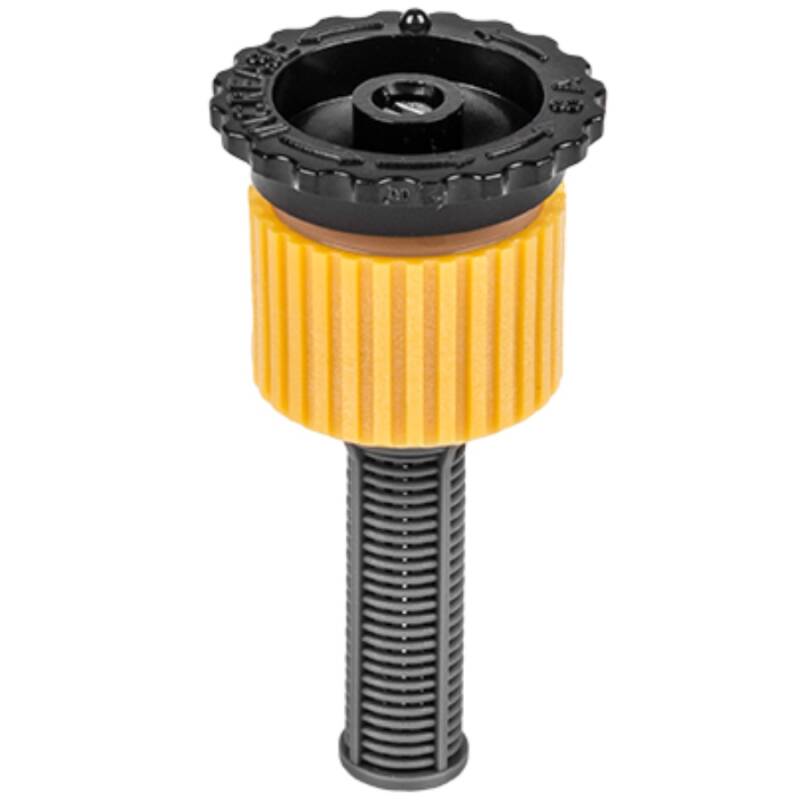

Adjustable or fixed nozzle 0° - 360°, 3,0m BR0003.360.030 0° - 360°, 3,0m 1,65 €*

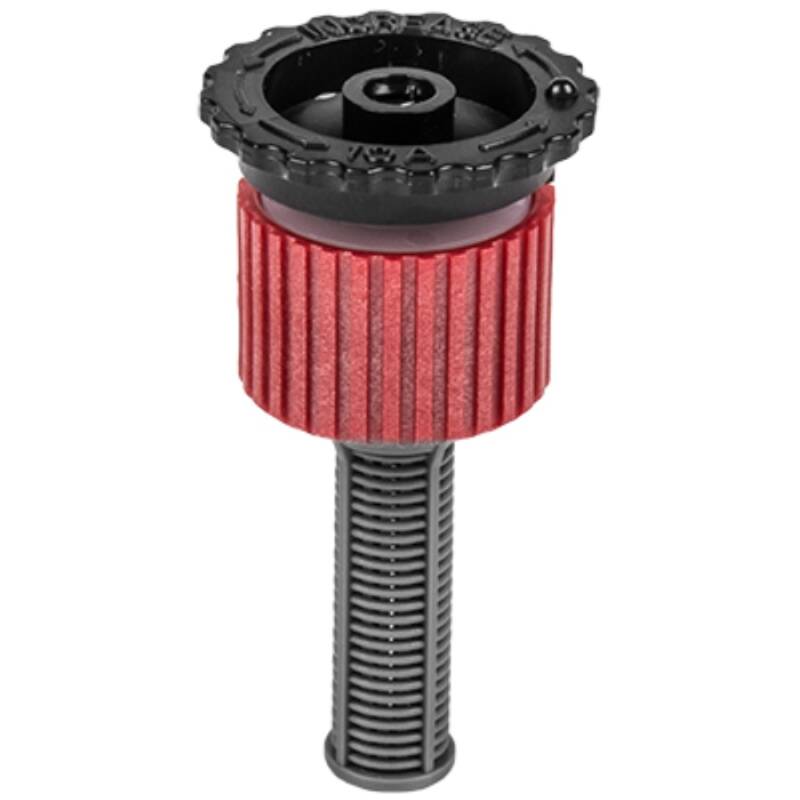

Adjustable or fixed nozzle 0° - 360°, 3,6m BR0003.360.036 0° - 360°, 3,6m 1,65 €*

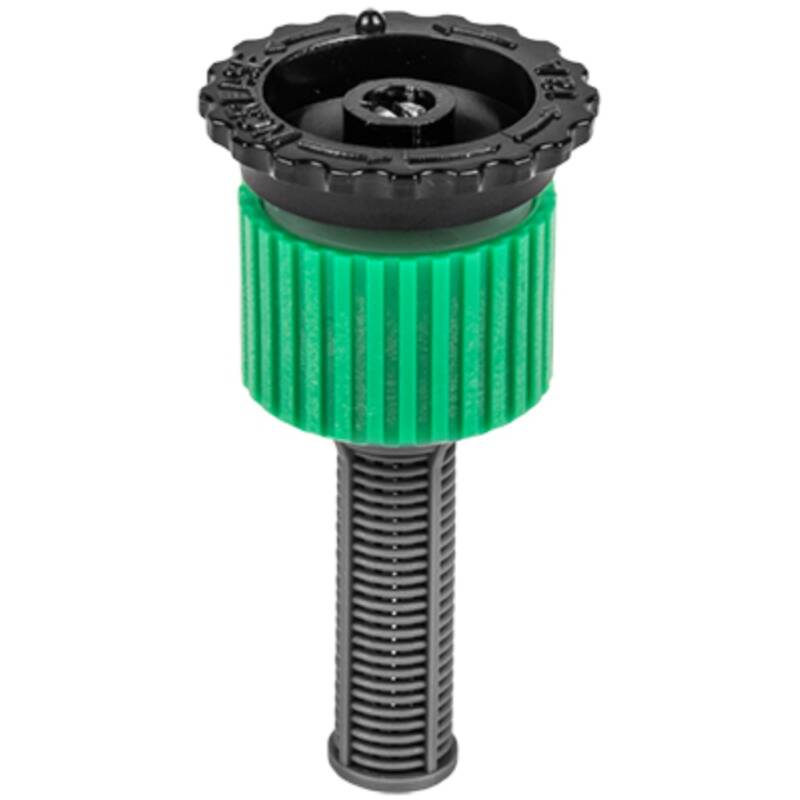

Adjustable or fixed nozzle 0° - 360°, 4,0m BR0003.360.040 0° - 360°, 4,0m 1,65 €*

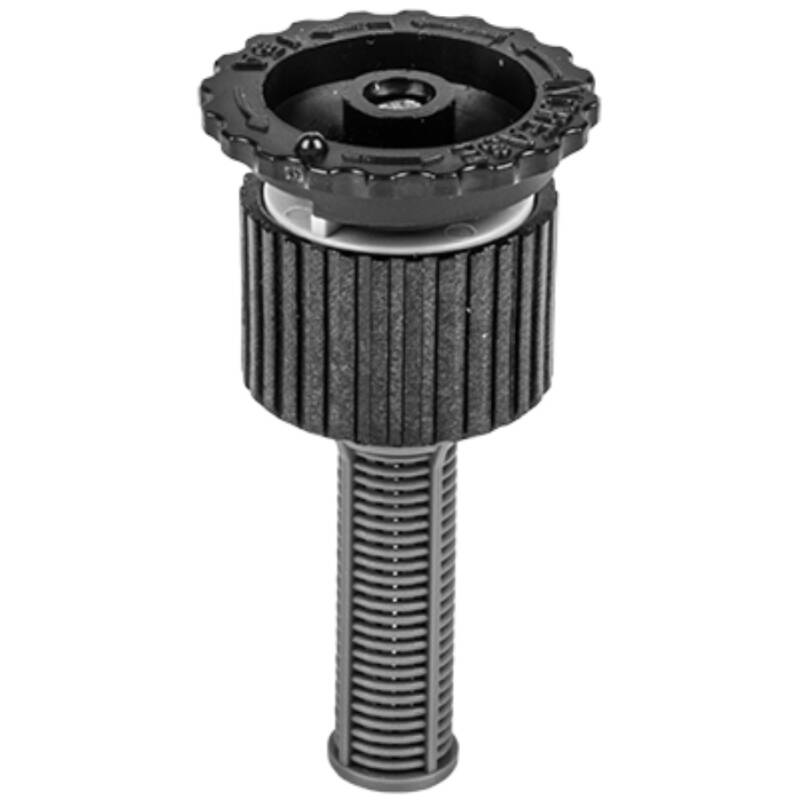

Adjustable or fixed nozzle 0° - 360°, 4,9m BR0003.360.049 0° - 360°, 4,9m 1,65 €*

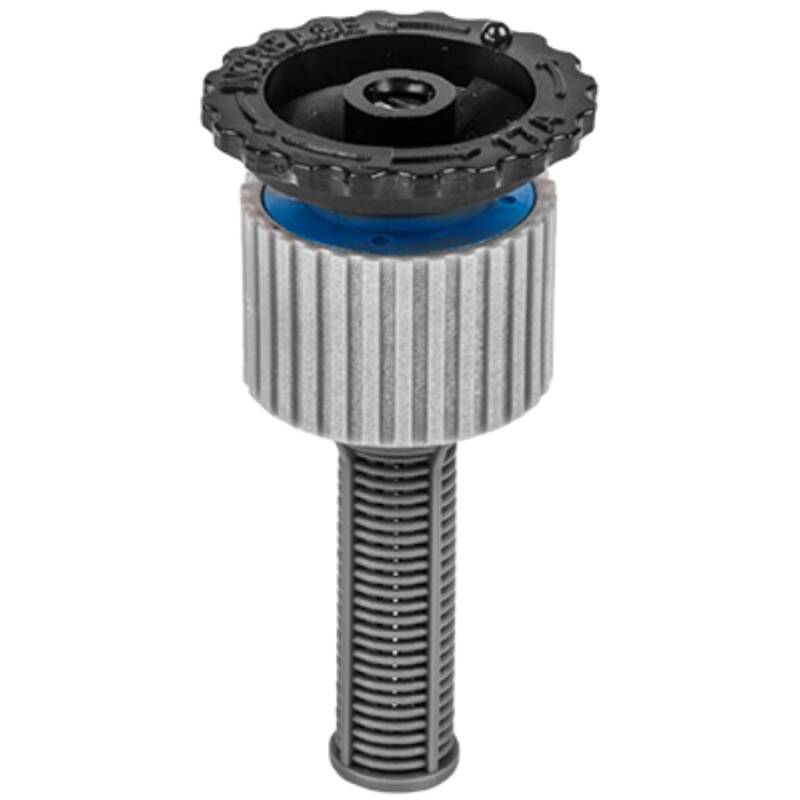

Adjustable or fixed nozzle 0° - 360°, 5,2m BR0003.360.052 0° - 360°, 5,2m 1,65 €*

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

Düsen einstellbar oder fester Sektor

kompatibel zu allen Hunter, Rainbird Versenkregnern

orange dot BR0003 - mehr Details


einstellbare Düse 0°-360°, Wufweite 3,0m
 Sektor  Druck bar  Effizienz (l/min)  Radius m
 45° - 360°  1,4  1,5 - 5,0  2,1
 45° - 360°  2,0  1,2 - 6,9  2,4
 45° - 360°  2,8  1,3 - 7,9  3,0

einstellbare Düse 0°-360°, Wufweite 3,0m
 Sektor  Druck bar  Effizienz (l/min)  Radius m
 45° - 360°  1,4  1,2 - 7,2  2,7
 45° - 360°  2,0  1,5 - 9,0  3,0
 45° - 360°  2,8  1,7 - 10,3  3,6

einstellbare Düse 0°-360°, Wufweite 3,0m
 Sektor  Druck bar  Effizienz (l/min)  Radius m
 45° - 360°  1,4  1,2 - 8,2  3,3
 45° - 360°  2,0  1,5 - 10,4  4,0
 45° - 360°  2,8  1,8 - 12,1  4,0

einstellbare Düse 0°-360°, Wufweite 3,0m
 Sektor  Druck bar  Effizienz (l/min)  Radius m
 45° - 360°  1,4  1,3 - 8,8  4,2
 45° - 360°  2,0  1,6 - 10,8  4,6
 45° - 360°  2,8  1,8 - 12,3  4,9

einstellbare Düse 0°-360°, Wufweite 3,0m
 Sektor  Druck bar  Effizienz (l/min)  Radius m
 45° - 360°  1,4  1,7 - 9,4  4,6
 45° - 360°  2,0  2,0 - 11,3  5,2
 45° - 360°  2,8  2,3 - 12,7  5,2
