Air/vacuum valve for driplines

SKU: BW0122
Auswahl Steuerzone / Lieferland
from
3,57 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
Thread
Price
Quantity

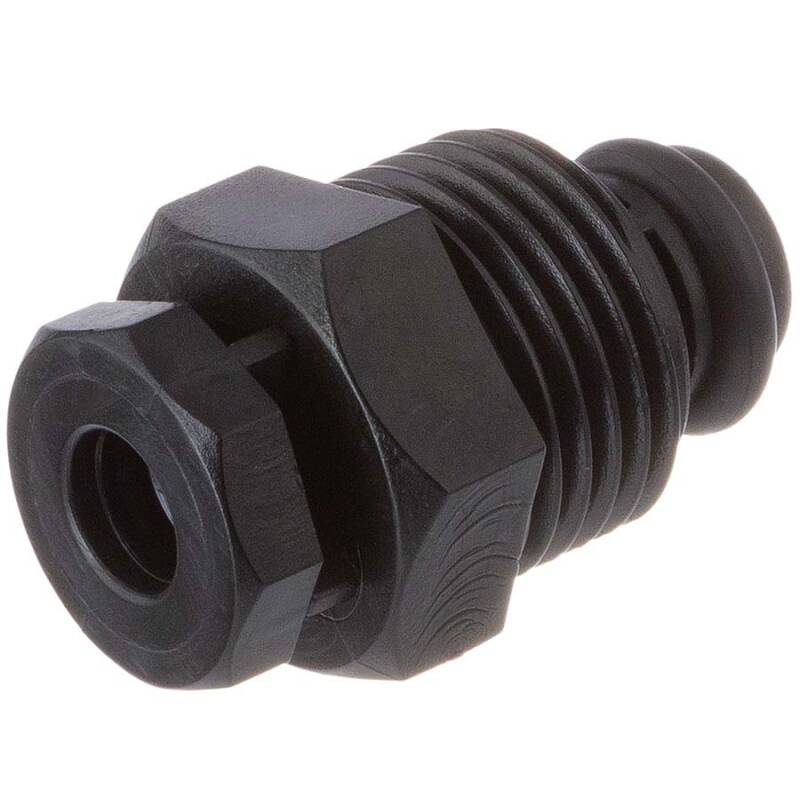

Air/vacuum valve for driplines 1/2" male thread
BW0122.000.020
1/2"AG Ventil
1/2" (20,95mm)
3,57 €*
pc.:
Air/vacuum valve for driplines 16mm insert drip fittings
BW0122.103.103
gerader Steckverbinder inkl. Ventil
---
6,41 €*
pc.:
Air/vacuum valve for driplines 16mm threaded connection
BW0122.104.104
gerade Schraubverbindung inkl. Ventil
---
7,02 €*
pc.:
Air/vacuum valve for drip line 90° angle with 16mm plug connection
BW0122.403.403
90° Winkel mit 16mm Steckverbindung inkl. Ventil
---
6,78 €*
pc.:
Air/vacuum valve for driplines 90° angle with 16 mm threaded connection
BW0122.404.404
90° Winkel mit 16mm Steckverbindung inkl Ventil
---
7,38 €*
pc.:
Air/vacuum valve for driplines T-piece with 16 mm plug connection
BW0122.503.503
T-Stück mit 16mm Steckverbindung inkl. Ventil
---
6,84 €*
pc.:
Air/vacuum valve for driplines T-piece with 16 mm threaded connection
BW0122.504.504
T-Stück mit 16mm Schraubverbindung inkl. Ventil
---
7,91 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

NDS air/vacuum valve for controlling aeration and ventilation in drip lines

The ABS valve is an important component of a drip irrigation system. It should be used primarily in underground systems in conjunction with valve shafts at the highest point in the drip line.

The valve has a dual function:

  • It vents your system at startup.
  • It prevents a vacuum from forming in the system when it is switched off.
  • Allows trapped air to escape to prevent water hammers
  • Removes trapped air to eliminate blockages
  • Prevents cavitation caused by imploding air bubbles
