All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

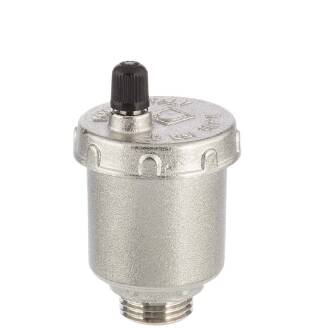

Automatic Air Vent External Thread
Connection:
External Thread
Temperature:
max. 110°C
Working Pressure (PN):
max. 6 bar
O-Ring:
NBR
Float:
Polyethylene Resin
- Material: Nickel-Plated Brass
- O-Ring: NBR
- Float: Polyethylene Resin
- Max. Working Temperature: 110°C
- Max. Working Pressure: 6 bar
DOWNLOADRoHS Confirmation HTC
DOWNLOADREACH Supplement Brass HTC
DOWNLOAD
The Thread Designation - or why 1" is not exactly 25.4mm
