Blu-Lock System

from
1,61 €
incl. 19% VAT , plus shipping costs
  • Available immediately

wichtiger Hinweis

Schlauchzuschnitt wird speziell für Ihren Auftrag gefertigt - keine Rückgabe, kein Widerruf bei Schlauchzuschnitt.
  • Available immediately
   Variants

Product picture
Item no.
Variation
D
DN
W
max. lenght
Thread
Price
Quantity
Blu-Lock System Meterware
BW5020.000.001
Meterware Irritec
15
11
2
30m
---
1,96 €*
meter:
Blu-Lock System 30m length
BW5020.ROL.30M
30 Meter Rolle Irritec
15
11
2
---
---
38,68 €*
Reel:
Blu-Lock System Blue-Lock Coupler
BW5020.101.000
Blu-Lock Verbinder gerade
---
12
---
---
---
2,48 €*
pc.:
Blu-Lock System 1/2 male thread x Blue-Lock
BW5020.104.020
1/2" x Blu-Lock
---
12
---
---
1/2" (20,96mm)
1,61 €*
pc.:
Blu-Lock System 3/4 male thread x Blue-Lock
BW5020.104.025
3/4" x Blu-Lock
---
12
---
---
3/4" (26,44mm)
1,61 €*
pc.:
Blu-Lock System Elbow 1/2" AG x BL
BW5020.410.020
90° Winkel 1/2" x Blu-Lock
---
12
---
---
1/2" (20,96mm)
1,89 €*
pc.:
Blu-Lock System Elbow 3/4" MT x BL
BW5020.410.025
90° Winkel 3/4" x Blu-Lock
---
12
---
---
3/4" (26,44mm)
1,89 €*
pc.:
Blu-Lock System Tee Blue-Lock
BW5020.502.000
Blu-Lock T-Stück
---
12
---
---
---
3,65 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

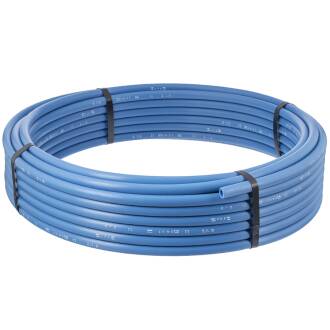

Blue-Lock System Irritec installation pipe and connection fittings

For quick and easy installation of pop-up sprinklers

The Blue-Lock system is designed for the flexible connection of the supply line (PE pipe) to the sprinkler housing using Blue-Lock connectors and can be connected as a transition to the identical mating thread on the sprinkler housing or the supply line using a compression fitting or tapping clamp. The Blue-Lock pipe can only be used underground.
The advantage of the Blue-Lock system is that the pipe is clamped from the outside by the Blue-Lock connectors. The fittings can be separated from the pipe at any time without any great effort.


  • Outer diameter 15mm
  • Inner diameter 11mm
  • Wall thickness 2mm
  • Operating pressure: up to 5.5 bar; 550 kPa

orange dot simply "Blue Lock"

Blue Lock Erklärung Bild 1
Blue Lock Erklärung Bild 2
Blue Lock Erklärung Bild 3
Blue Lock Erklärung Bild 4
