All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

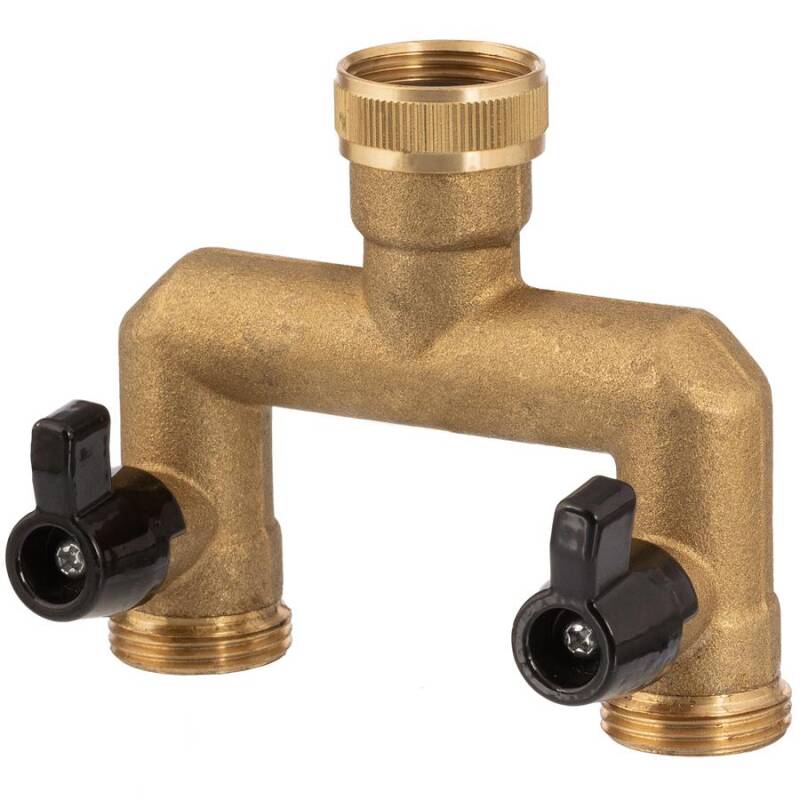

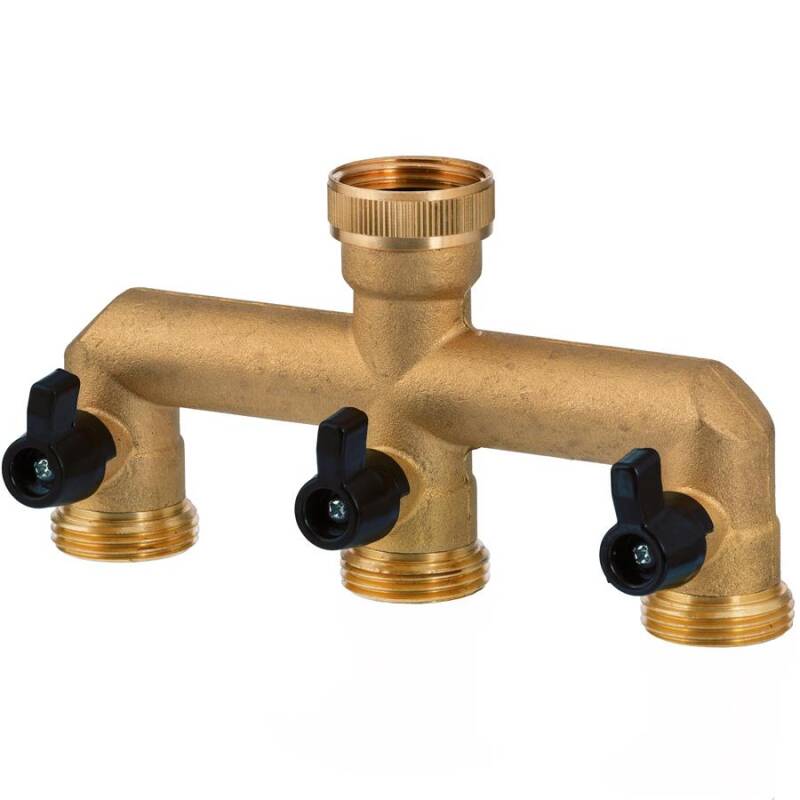

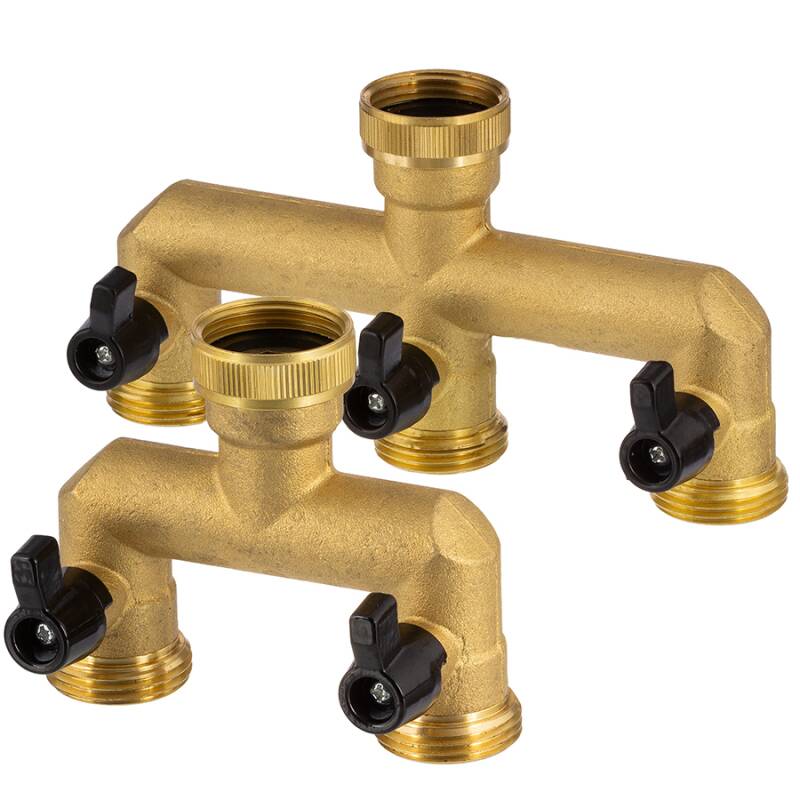

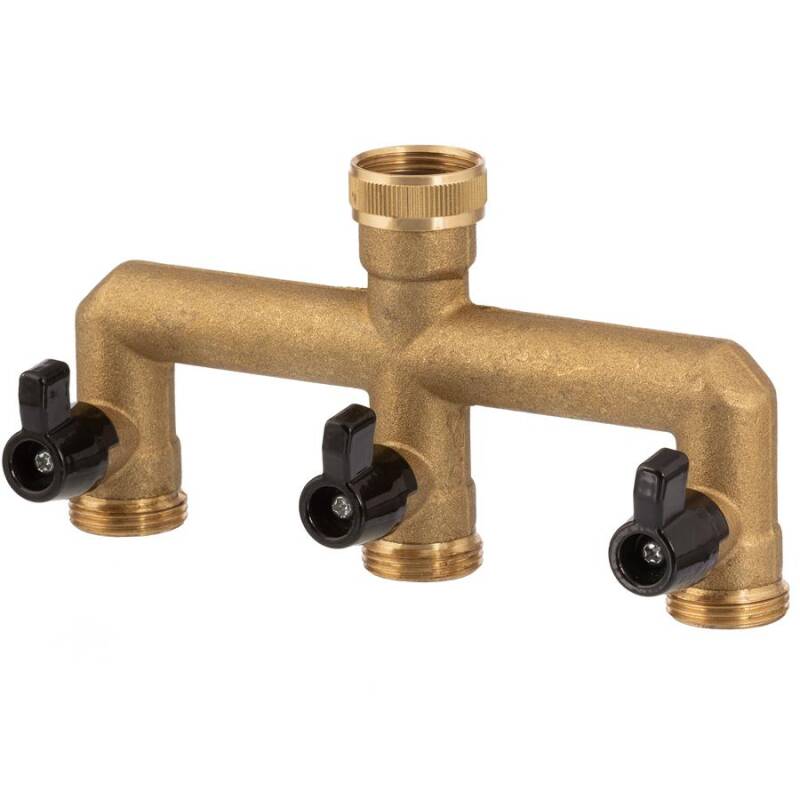

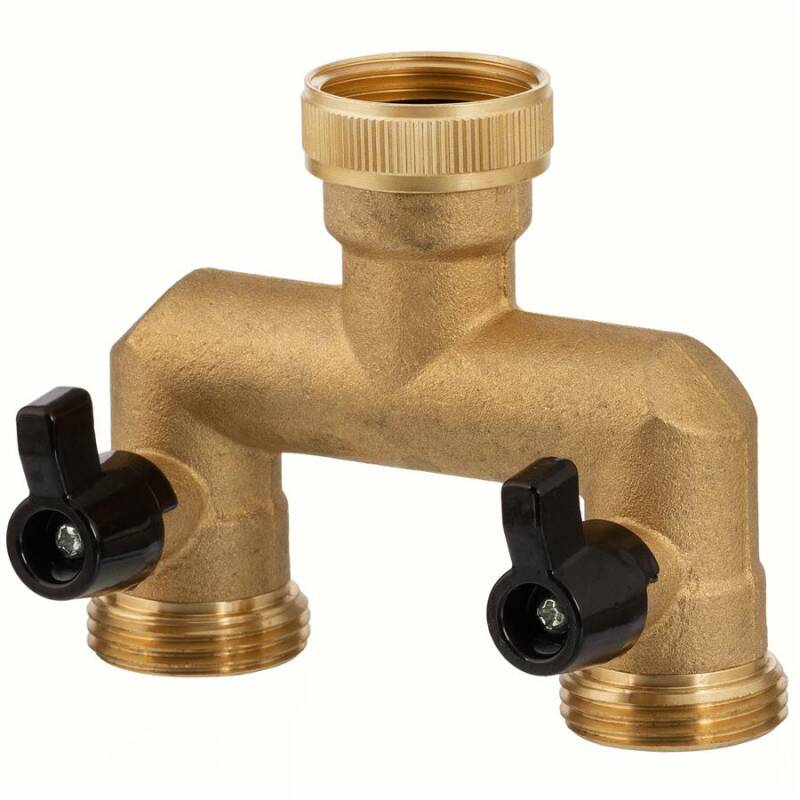

Brass manifold union female thread to 2-way or 3-way 3/4" male thread, individually adjustable with mini ball valve
- Internal thread 3/4" or 1" (according to selection) union nut with flat gasket
- 2-way or 3-way outlet external thread 3/4" or 1" (according to selection), individually adjustable with mini ball valve
Important: Use only outdoors against a flat-sealing counterpart (e.g. tap, flat-sealing double nipple).
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
