Description

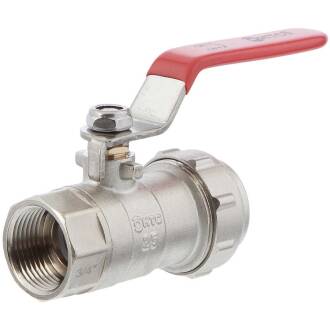

Brass compression fitting ball valve, female thread x female thread, suitable for drinking water
Connection:
Clamp x female thread
Material:
Brass CW617N (can be used for drinking water pipes)
O-ring:
NBR 70 shore
Threaded connection:
BSP pipe thread G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, not self-sealing, seal with hemp, sealing paste or similar.
Temperature:
-20°C to 90°C
Working pressure (PN):
max. working pressure PN 25 bar (400 psi), 20°C 16 Mpa, 95°C 4,2 Mpa
Meets pressure conditions according to DIN 8076-1, thread according to ISO 228 (BS 2779) with parallel female thread and tapered male thread.
Meets pressure conditions according to DIN 8076-1, thread according to ISO 228 (BS 2779) with parallel female thread and tapered male thread.
Color:
Brass
Use:
PELD, PEHD, PE40, PE80, PE100 pipes
Application:
The facts
- Sandblasting effect
- can be used for cold and warm water
- suitable for all types of water, wastewater and liquids of higher or lower densities
- Brass CW61N (can be used for drinking water pipes)
Technical data
- Body: brass UNE 12165
- O-ring: NBR 70 shore
- Sealing ring: brass UNE 12165
- Ferrule: brass UNE 12165
- Union nut: brass UNE 12165
