All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

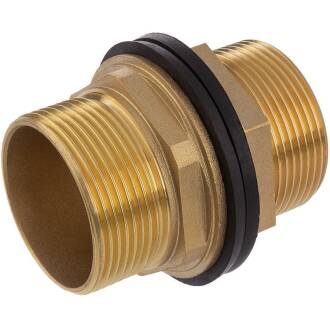

Brass tank connector Tank bushing, 2-way external thread
Connection:
2-way male thread
Fixed stop nut on one side
Fixed stop nut on one side
material:
Brass CW61N (can be used for drinking water pipes)
Seal:
2-way EPDM
Thread:
BSP pipe thread ISO 228-1, not self-sealing, sealing with Teflon tape or similar.
Temperature:
-20°C to 80°C (limited by EPDM seal)
Working pressure (PN):
max. 16 bar at 20°C medium water
Technical information:
B Dimension 1 = brass body
B Dimension 2 = Seal
Version 3/8" with stop nut and lock nut without collar
B Dimension 2 = Seal
Version 3/8" with stop nut and lock nut without collar
