All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

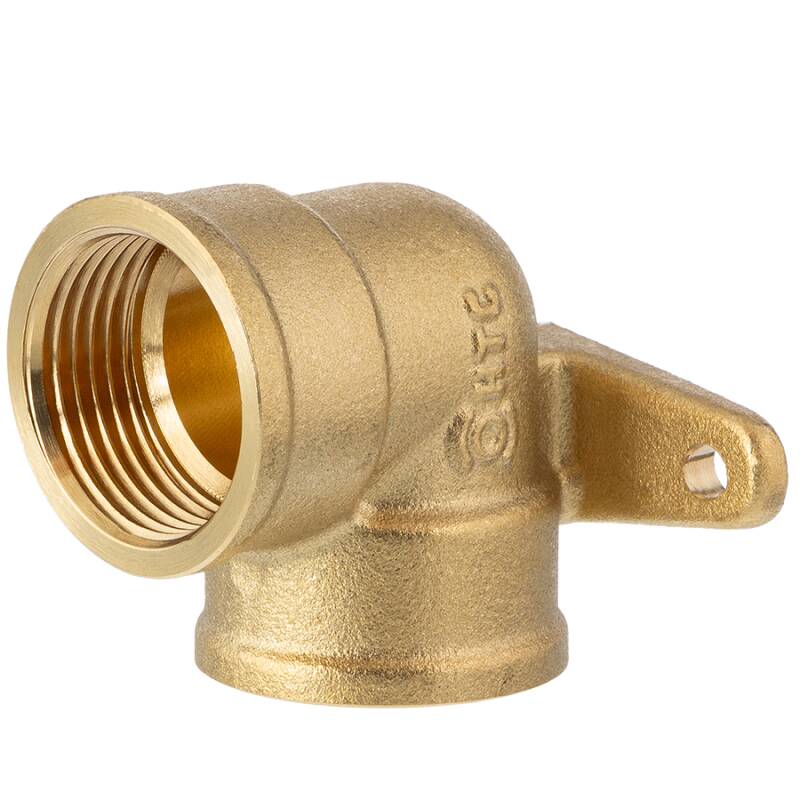

Brass wall bracket wall washer 90° 2-way internal thread
Connection:
2-way female thread
material:
Brass CW61N (can be used for drinking water pipes)
Thread:
BSP pipe thread ISO 228-1, not self-sealing, sealing with Teflon tape or similar.
Temperature:
-20°C to 150°C
Working pressure (PN):
max. 16 bar at 20°C medium water
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
Brass wall bracket Wall washer 2-fold internal thread
The wall bracket, the wall washer is the end fitting of your pipe system and is suitable for holding a tap. High-quality, durable brass threaded fittings are suitable for use in heating and sanitary systems. They are also suitable for rainwater systems and irrigation systems in general. The pipe installation can also be operated with a water-glycol mixture (water with anti-freeze additive).Brass for European Potable Water Applications European Drinking Water Directive (DWD) specifies the limit values for lead for brass fittings that can be used in drinking water applications.
All connection threads of the brass threaded fittings - here the brass wall bracket wall washer 90 degrees manufactured for us - comply with the ISO 228/1 standard. Threads of this standard are cylindrical both as internal and external threads and the size specification is preceded by a G.
