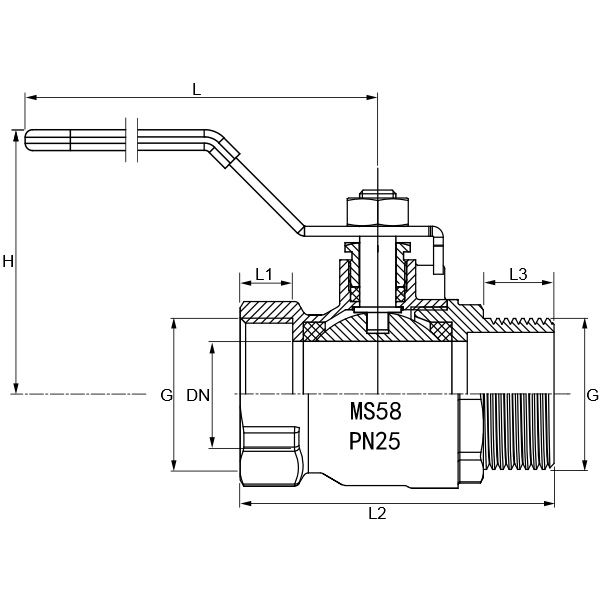

Variants

Item no.
Variation
DN
G
H
L
L1
L2
L3
Price
Quantity
MA0002.020.020
1/2"
14
1/2" (20,95mm)
51
102
10,5
56
11
4,50 €*
pc:
MA0002.025.025
3/4"
17
3/4" (26,44mm)
55
102
12
63
13
6,71 €*
pc:
MA0002.032.032
1"
23
1" (33,25mm)
65
117
12
69
13
9,94 €*
pc:
MA0002.040.040
1 1/4"
30
1 1/4" (41,91mm)
69
117
14
82
15
15,30 €*
pc:
MA0002.050.050
1 1/2"
32
1 1/2" (47,81mm)
86
146
16
93
15,5
24,18 €*
pc:
MA0002.063.063
2"
39,5
2" (59,61mm)
94
146
19
110
18
32,80 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

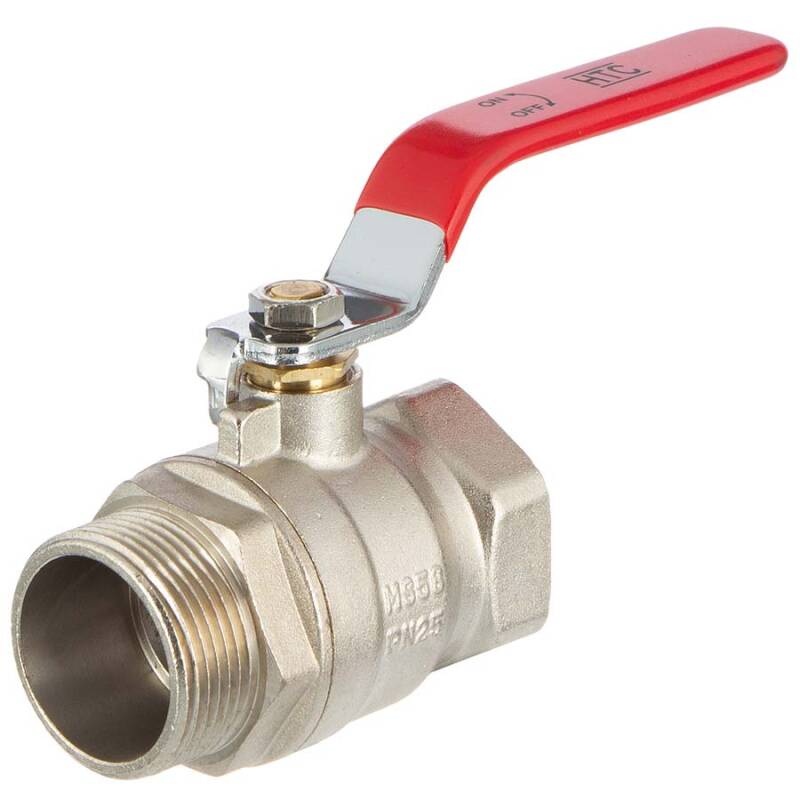

Messing Kugelhahn Stahlhebel, Innen- x Aussengewinde

Anschluss:
Innen- x Aussengewinde DIN 259
Gewinde:
BSP Rohrgewinde G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, nicht selbstdichtend, Abdichtung mit Hanf, Dichtpaste o.ä.
Einsatzgebiet:
geeignet für Druckluft, Kalt- und Warmwasser
Temperatur:
-20°C bis 150°C
Arbeitsdruck (PN):
25 bar bei 60°C
Material:
Messing MS 58 | CW614N
Dichtung:
PTFE (Teflon)
Durchlass:
full port - voller Durchlass
DIN:
Dimensionen konform ISO 4144, Anschlussgewinde nach ISO 7/1 (DIN 2999 / BS 21)
Farbe:
Messing verchromt, Griff Überzug Farbe: Rot
Kugelhahn Messing Stahlhebel
Nr.
Teil
Material
1
Körper
Messing MS58
2
Einsatz
Messing MS58
3
Kugelsitz
PTFE
4
Kugel
Messing hart verchromt
5
Welle
Messing MS58
6
Wellendichtung
PTFE
7
Wellenmutter
Messing MS58
8
Hebel
Stahl verchromt
9
Hebelmutter
Stahl verzinkt
10
Hebelüberzug
PVC

orange dot Ersatzteile Messing Kugelhahn HTC

DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
