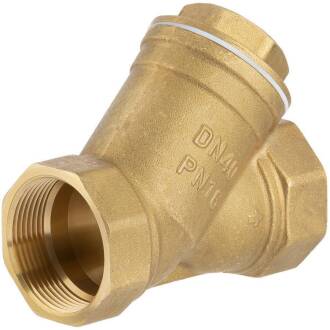

Brass female threaded Y-filter with steel basket 1"

SKU: MA0015.000.032
Auswahl Steuerzone / Lieferland
10,52 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Delivery time: 1 - 4 Workdays  (DE - int. shipments may differ)
array(6) { ["dimension_0340_h"]=> string(2) "52" ["dimension_0400_l"]=> string(2) "74" ["dimension_0010_variante"]=> string(2) "1"" ["dimension_0140_d"]=> string(2) "24" ["dimension_0288_g"]=> string(20) "1" (33,25mm)" ["gpsr_manufacturer_name"]=> string(27) "MT Spain Business Key, S.L." }
View item details in PDF
How to measure a threaded fitting
pc.
  • Available immediately
  • Delivery time: 1 - 4 Workdays  (DE - int. shipments may differ)
All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Main item including dimensions

   Description

Y-Strainer with Stainless Steel Screen 2x Female Thread

Connection:
2x Female Thread
Thread:
BSP Pipe Thread ISO 228/1
Application:
suitable for cold and hot water as well as air
Temperature:
min. -20°C
Working pressure (PN):
20 bar at 80°C | 10 bar at 110°C

Spare Parts MA0015 Brass Y-Strainer 2x Female Thread

MA0015 Y-Strainer Replacement Screen

Stainless Steel Screen
DOWNLOAD The thread designation - or why 1" is not exactly 25.4mm
