Description

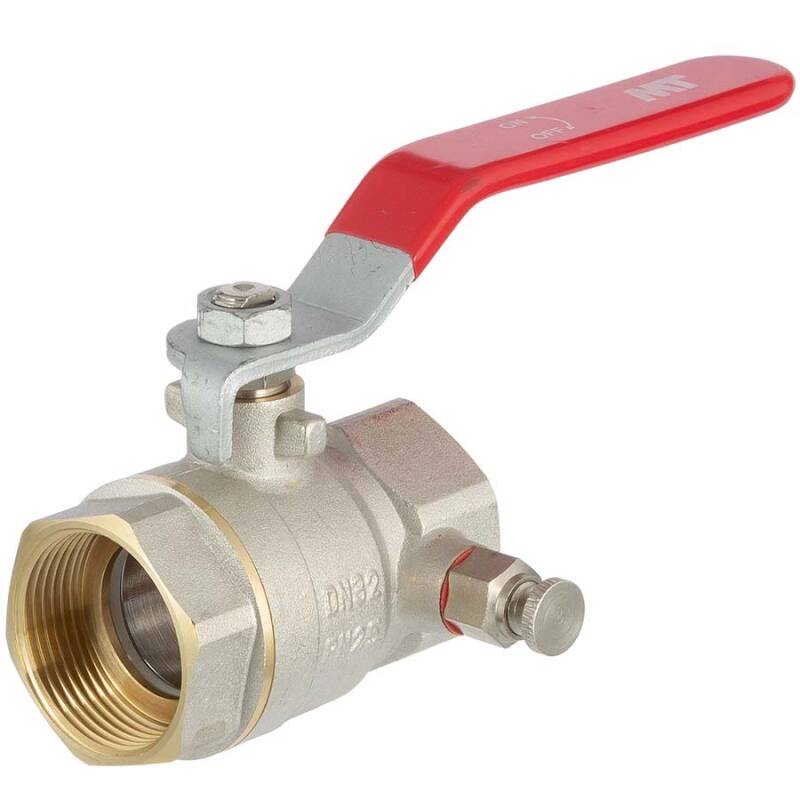

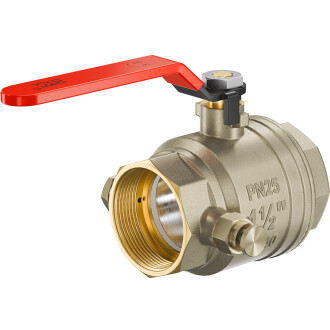

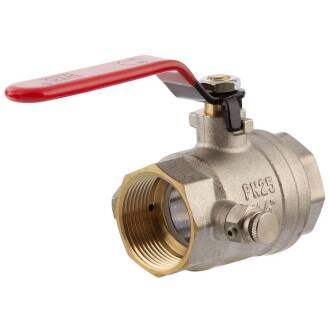

Brass Ball Valve 2x Female Thread with Side Drain
Connection:
2x Female Thread DIN 259
Thread:
BSP Pipe Thread G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, not self-sealing, sealing with hemp, sealing paste or similar.
Application:
suitable for compressed air, cold and hot water
Temperature:
-20°C to 150°C
Working pressure (PN):
25 bar at 60°C
Material:
Brass MS 58 | CW614N
Seal:
PTFE (Teflon)
Bore:
full port
DIN:
Dimensions according to ISO 4144, connection thread according to ISO 7/1 (DIN 2999 / BS 21)
Color:
Brass chrome-plated, handle cover color: Red
No.
Part
Material
1
Body
Brass MS58
2
Insert
Brass MS58
3
Ball seat
PTFE
4
Ball
Brass hard chrome plated
5
Stem
Brass MS58
6
Stem seal
PTFE
7
Stem nut
Brass MS58
8
Lever
Steel chrome plated
9
Lever nut
Steel galvanized
10
Lever cover
PVC
