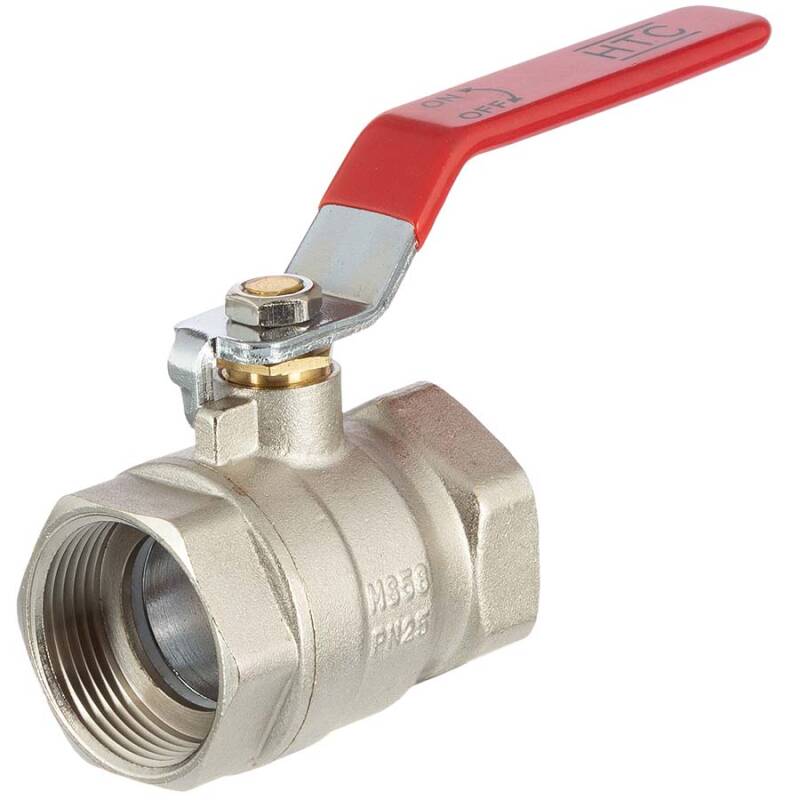

Brass female threaded ball valve with steel handle

SKU: MA0045
Auswahl Steuerzone / Lieferland
from
4,28 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(17) { ["dimension_0340_h"]=> string(2) "21" ["dimension_0400_l"]=> string(4) "38,5" ["tabellen_ansicht"]=> string(1) "1" ["dimension_0220_dn"]=> string(1) "6" ["meta keywords"]=> string(32) "Messing Mini Kugelhahn Druckluft" ["bild_abmessungen"]=> string(40) "/bilder/abmessungen/MA0045_Zeichnung.jpg" ["dimension_0450_l2"]=> string(4) "41,5" ["dimension_0420_l1"]=> string(1) "9" ["dimension_0010_variante"]=> string(23) "1/8"
Stück" ["dimension_0288_g"]=> string(21) "1/8" (9,73mm)" ["alt_list"]=> string(1) "1" ["hat_3d_bilder"]=> string(1) "1" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["break_after"]=> string(1) "1" ["break_after_color"]=> string(7) "#b1b1b1" ["break_after_thickness"]=> string(3) "2px" ["gpsr_manufacturer_name"]=> string(26) "TIQ China-Base Ningbo JEAN" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Technical drawing
Item no.
Variation
DN
G
H
L
L1
L2
Price
Quantity
Brass female threaded ball valve with steel handle 1/8"
MA0045.000.009
1/8"
Stück
6
1/8" (9,73mm)
21
38,5
9
41,5
4,82 €*
pc:
Brass female threaded ball valve with steel handle
MA0045.000.009-10
1/8"
10er Pack
6
1/8" (9,73mm)
21
38,5
9
41,5
38,56 €*
3,86 € per pc.
Brass female threaded ball valve with steel handle 1/4"
MA0045.000.012
1/4"
Stück
6
1/4" (13,16mm)
21
38,5
9
41,5
4,28 €*
pc:
Brass female threaded ball valve with steel handle
MA0045.000.012-10
1/4"
10er Pack
6
1/4" (13,16mm)
21
38,5
9
41,5
34,51 €*
3,45 € per pc.

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Messing Mini Kugelhahn Stahlhebel, 2fach Innengewinde

Anschluss:
2fach Innengewinde DIN 259
Gewinde:
BSP Rohrgewinde G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, nicht selbstdichtend, Abdichtung mit Hanf, Dichtpaste o.ä.
Einsatzgebiet:
ideal für Druckluftanwendungen, Inline-Wasser-, Luft-, Gas-, Kraftstoffleitung
Arbeitsdruck (PN):
16 bar bei 60°C
Material:
Messing MS 58 | CW614N
Dichtung:
PTFE (Teflon)
Farbe:
Messing verchromt / Griff Überzug: Rot
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
