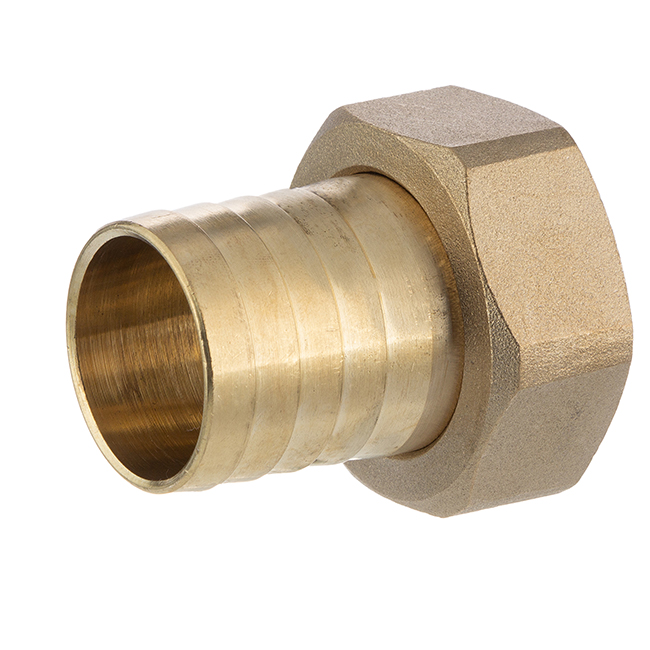

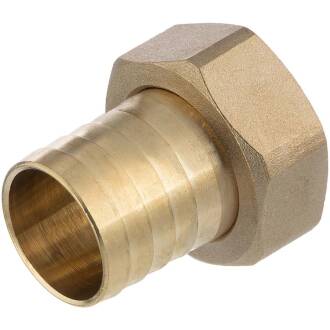

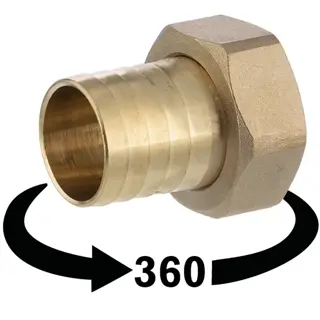

Brass hose nozzle PROFI-LINE union nut x nozzle

SKU: MF0812
Auswahl Steuerzone / Lieferland
from
2,30 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

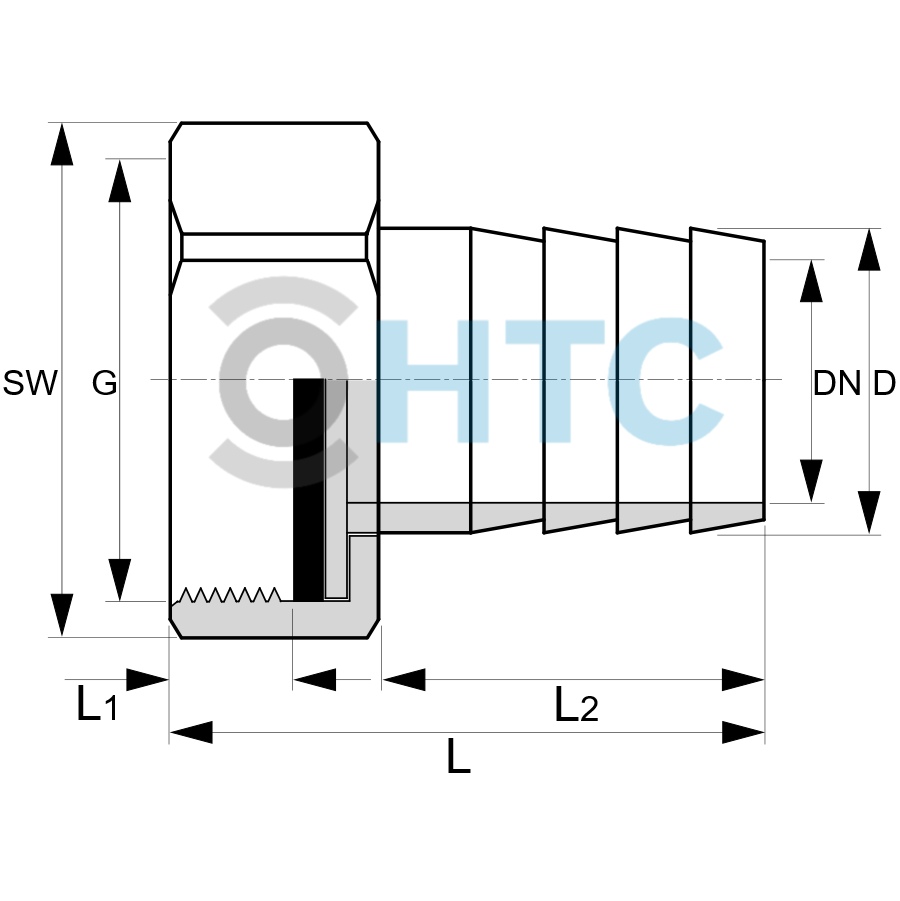

Item no.
Variation
D max.
D min.
DN
G
L
L1
L2
SW
Price
Quantity
MF0812.020.013
1/2" x 13mm
13,5
12
9
1/2" (20,96mm)
47
13
27
24
2,30 €*
pc:
MF0812.025.019
3/4" x 19mm
19
18
15
3/4" (26,44mm)
49
11
31
30
3,92 €*
pc:
MF0812.032.025
1" x 25mm
25,5
24
21
1" (33,25mm)
51,5
11
32
36
5,25 €*
pc:
MF0812.040.032
1 1/4" x 32mm
32
30
28
1 1/4" (41,91mm)
57
12,5
36
46
8,91 €*
pc:
MF0812.050.038
1 1/2" x 39mm
39
38
33
1 1/2" (47,81mm)
64
15
39
54
15,54 €*
pc:
MF0812.063.050
2" x 51mm
51
50
45
2" (59,61mm)
68
15
44
68
21,37 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass hose nozzle PROFI-LINE union nut female thread x nozzle

for demanding applications up to PN 16 bar at 20°C, medium water.

Connection:
Union nut female thread x grommet
Thread:
BSP pipe thread G, not self-sealing, sealing with internal flat gasket against flat-sealing external thread
Working pressure (PN):
PN 16 at 20°C, medium water
Material:
Brass MS 58 | CW614N
Flat gasket:
incl. flat gasket NBR
Color:
Brass
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOADthe thread identification - or why 1" is not 25.4mm

Provider identification:

HTC
Norisstraße 4
91257 Pegnitz
