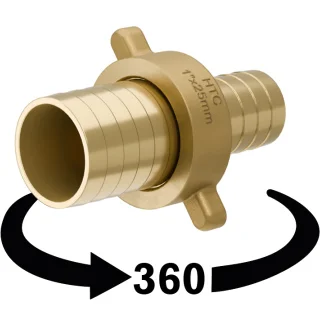

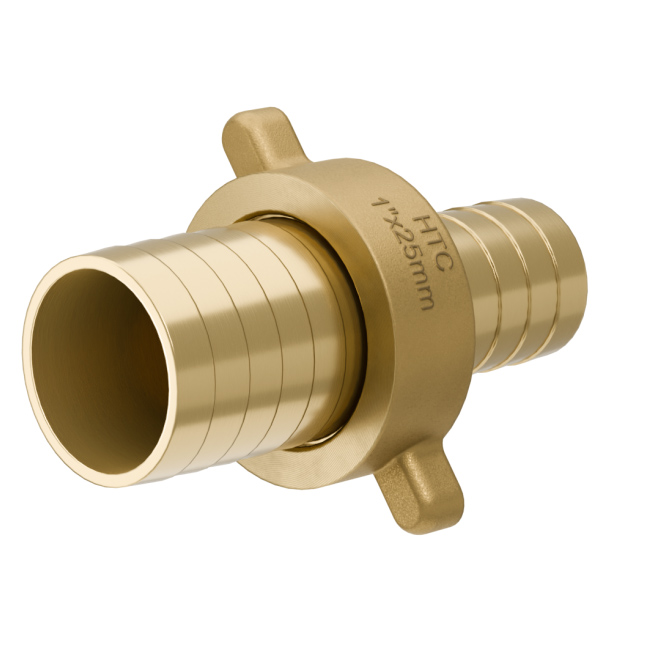

Brass hose nozzle union with flat gasket

SKU: MF0808
Auswahl Steuerzone / Lieferland
from
1,98 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(16) { ["tabellen_ansicht"]=> string(1) "1" ["meta keywords"]=> string(36) "Messing_Schlauchverschraubung_Tülle" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["dimension_0010_variante"]=> string(0) "" ["dimension_0902_schlauch innen-ø"]=> string(0) "" ["dimension_0400_l"]=> string(0) "" ["dimension_0220_dn"]=> string(0) "" ["dimension_0450_l2"]=> string(0) "" ["dimension_0420_l1"]=> string(0) "" ["dimension_0141_d1"]=> string(23) "xx (xx/xx)" ["dimension_0144_d2"]=> string(23) "xx (xx/xx)" ["dimension_0288_g"]=> string(0) "" ["hat_3d_bilder"]=> string(1) "1" ["alt_list"]=> string(1) "1" ["bild_abmessungen"]=> string(40) "/bilder/abmessungen/MF0808_Zeichnung.jpg" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture

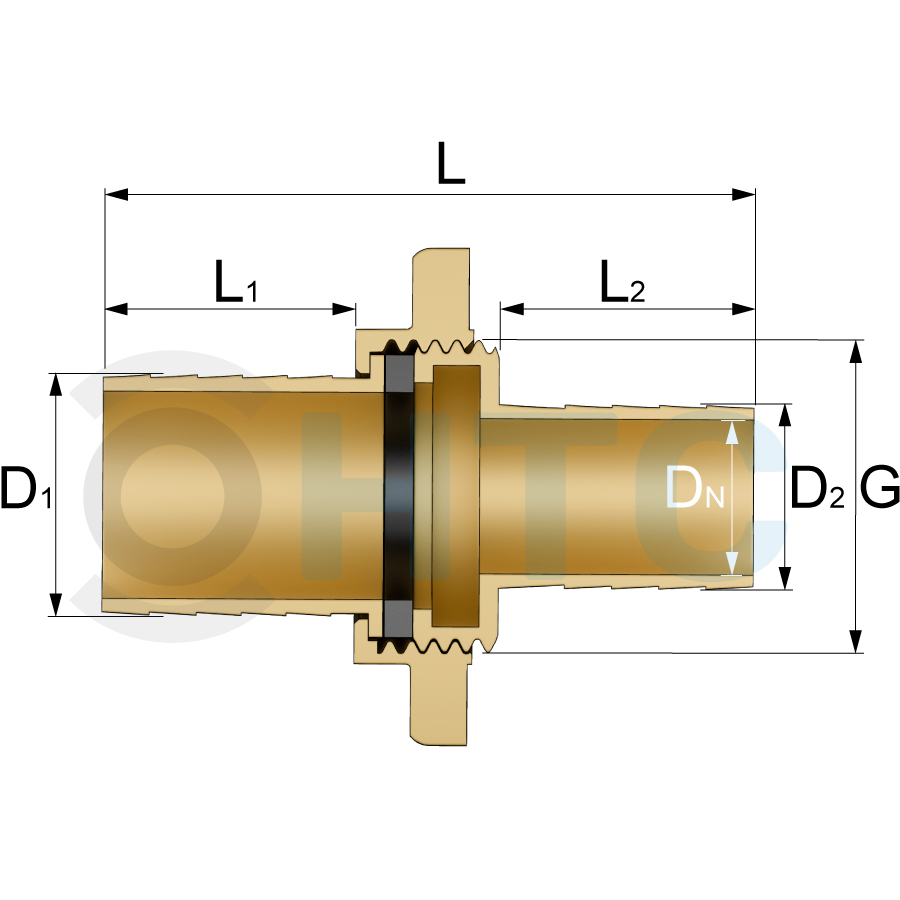

Item no.
Variation
D1
D2
DN
G
L
L1
L2
Price
Quantity
Brass hose tail union with flat gasket
MF0808.013.013
13 x 13mm
13
13
10
1/2" (20,96mm)
62
25
22
1,98 €*
pc.:
Brass hose nozzle union with flat gasket
MF0808.019.013
19 x 13mm
19
13
10
3/4" (26,44mm)
62
25
22
3,17 €*
pc.:
Brass hose tail union with flat gasket
MF0808.019.019
19 x 19mm
19
19
16,5
3/4" (26,44mm)
62
25
22
2,77 €*
pc.:
Brass hose nozzle union with flat gasket
MF0808.025.019
25 x 19mm
25
19
16,5
1" (33,25mm)
70
32
22
3,17 €*
pc.:
Brass hose tail union with flat gasket
MF0808.025.025
25 x 25mm
25
25
22
1" (33,25mm)
77,5
32
29
4,63 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass screw connection 2-way hose nozzle incl. flat gasket x nozzle


Connection:
2-fold hose nozzle incl. flat gasket
Working pressure (PN):
PN 10 at 20°C
Material
Brass MS 58 | CW614N
Seal:
incl. flat gasket EPDM
Color:
Brass
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
