All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

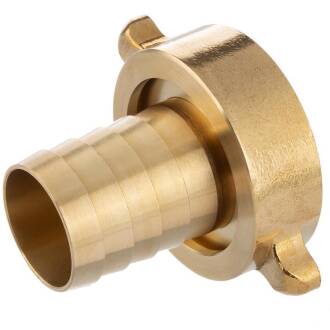

Brass Hose Fitting Nut Internal Thread x Hose Fitting
Connection:
Nut Internal Thread x Hose Fitting
Thread:
BSP pipe thread G, non-self-sealing, sealing with internal flat seal against flat-sealing external thread
Working pressure (PN):
PN 10 at 20°C
Material:
Brass MS 58 | CW614N
DIN:
incl. flat seal EPDM
Color:
Brass
DOWNLOADRoHS Confirmation HTC
DOWNLOADREACH Addendum Brass HTC
DOWNLOAD
The Thread Designation - Or why 1" is not 25.4mm
