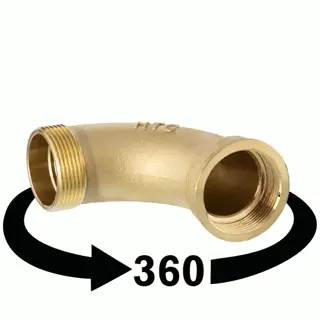

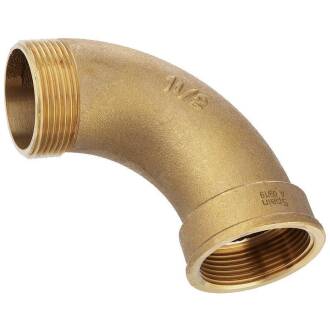

Brass male/female threaded bend 90°

SKU: MF0402
Auswahl Steuerzone / Lieferland
Price on request
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
G
G1
H
L
Price
Quantity
MF0402.020.020
1/2"
1/2" (20,96mm)
1/2" (20,96mm)
38,5
42
3,92 €*
pc:
MF0402.025.025
3/4"
3/4" (26,44mm)
3/4" (26,44mm)
43,5
47
5,66 €*
pc:
MF0402.032.032
1"
1" (33,25mm)
1" (33,25mm)
57,5
61
8,53 €*
MF0402.040.040
1 1/4"
1 1/4" (41,91mm)
1 1/4" (41,91mm)
68,5
72
14,89 €*
MF0402.050.050
1 1/2"
1 1/2" (47,80mm)
1 1/2" (47,80mm)
78
83
19,80 €*
MF0402.063.063
2"
2" (59,61mm)
2" (59,61mm)
92
99
33,56 €*

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Messing Bogen 90° Innengewinde x Aussengewinde

Anschluss:
Innengewinde x Aussengewinde
Gewinde:
BSP Rohrgewinde ISO 228-1, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
-20°C bis 150°C
Arbeitsdruck (PN):
max. 16 bar bei Medium Wasser
Material:
Messingkörper UNE EN 12165
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
