All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

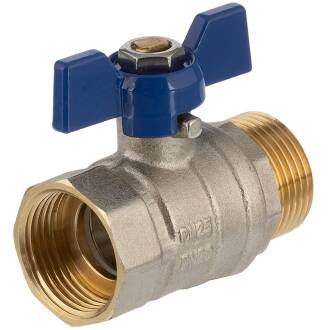

Brass Ball Valve Wing Handle, Internal x External Thread
Connection:
Internal x External Thread
Material:
Brass CW617N (suitable for drinking water pipes)
Thread:
BSP Pipe Thread ISO 228-1, non-self-sealing, sealing with Hemp, sealing paste, etc.
Application:
Suitable for compressed air, cold and hot water
Temperature:
-20°C to 150°C
Working Pressure (PN):
max. 25 bar at 80°C | max. 10 bar at 150°C
Ball Seat:
PTFE
Handle:
Aluminum
- Suitable for compressed air, cold and hot water
- 80°C max. 25 bar
- 150°C max. 10 bar
- min. temperature -20°C
- Thread according to ISO 228/1 (DIN 259)
- Ball seat PTFE
- Handle Aluminum
