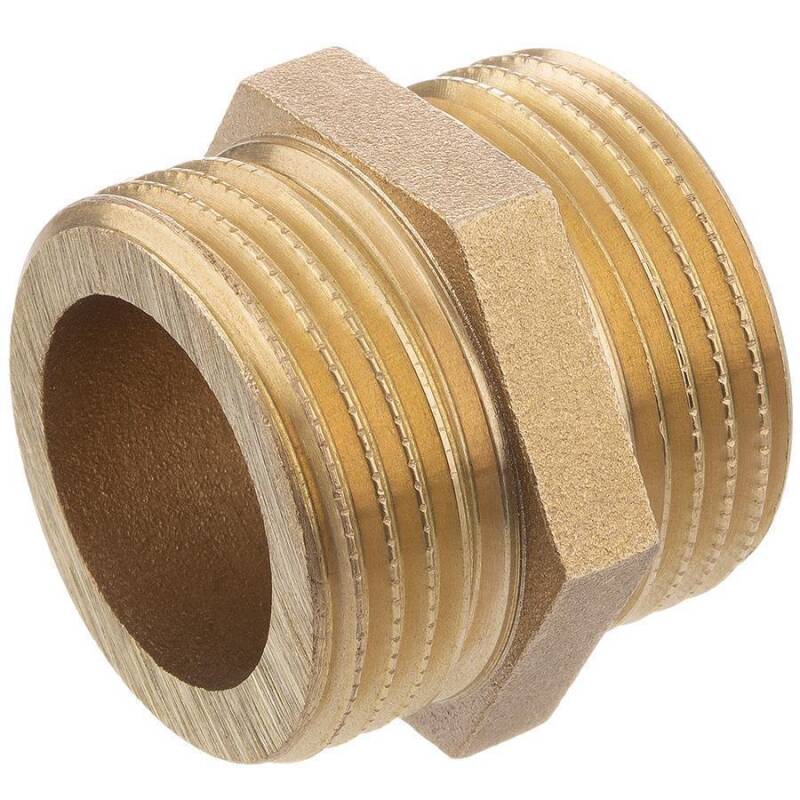

Brass male threaded nipple - flat sealing

Price on request
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
DN
G
L
L1
SW
Price
Quantity
MFF104.FLA.025
3/4"
16
3/4" (26,44mm)
28,5
10
25,5
2,30 €*

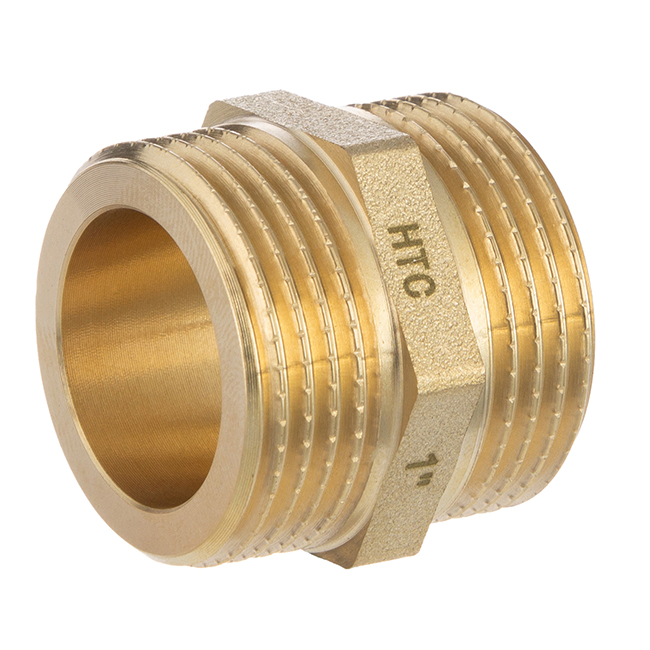

MF0107.000.032
1"
23
1" (33,25mm)
32
11
35
3,44 €*
pc:
MFF104.FLA.040
1 1/4"
31,5
1 1/4" (41,91mm)
42,5
15
42
6,18 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Messing Doppelnippel, 2fach Aussengewinde flachdichtend

Anschluss:
2fach Aussengewinde
Material:
Messing CW617N (für Trinkwasserleitungen verwendbar)
Gewinde:
BSP Rohrgewinde ISO 228-1, nicht selbstdichtend, Abdichtung mit Teflonband oder gegen Flachdichtung.
Temperatur:
-20°C bis 150°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser

Hinweis: Schwere Qualität mit einer breiten Auflagefläche für die Flachdichtung.


DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
