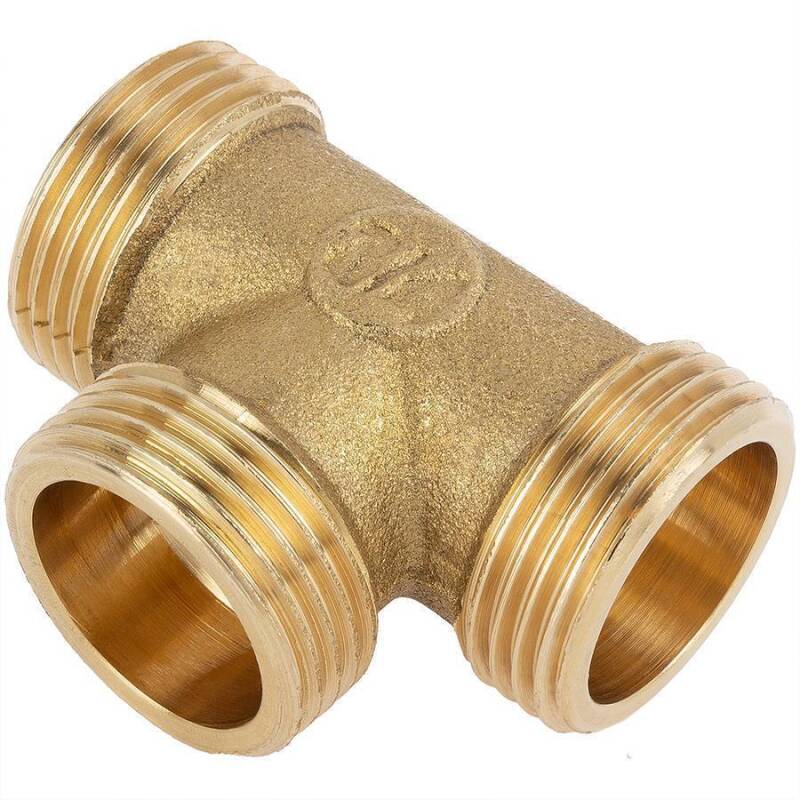

Brass male threaded tee 90°

SKU: MF0506
Auswahl Steuerzone / Lieferland
from
2,18 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
G
H
L
L1
Price
Quantity
MF0506.000.016
3/8"
3/8" (16,66mm)
20
36,5
7,5
2,18 €*
pc:
MF0506.000.020
1/2"
1/2" (20,96mm)
22,5
43,5
8
2,51 €*
pc:
MF0506.000.025
3/4"
3/4" (26,44mm)
26
50
8
3,89 €*
pc:
MF0506.000.032
1"
1" (33,25mm)
34
64
10
7,25 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Messing T-Stück 90°, 3fach Aussengewinde

Anschluss:
3fach Aussengewinde
Material:
Messing CW61N (für Trinkwasserleitungen verwendbar)
Gewinde:
BSP Rohrgewinde ISO 228-1, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
-20°C bis 150°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
