All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

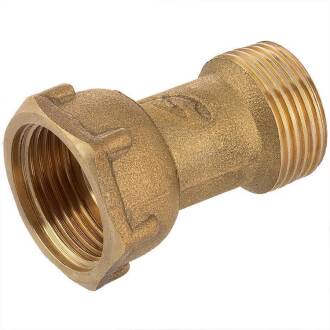

Brass coupling union female thread x male thread (I/A)
Connection:
Female thread union nut x male thread
material:
Brass CW61N (can be used for drinking water pipes)
Male thread:
BSP pipe thread ISO 228-1, not self-sealing, sealing with Teflon tape or similar.
Internal thread union nut:
BSP pipe thread ISO 228-1, not self-sealing, sealing with flat gasket - not included - please order separately
Temperature:
-20°C to 150°C
Working pressure (PN):
max. 6 bar at 20°C Medium water
Sliding Nut - The Intelligent Nut
- a complete range of accessories
- unlimited possibilities
- enables all types of connections
- Flat gasket and union nut ensure perfect alignment
- ideal for installations in difficult locations
- build distribution units according to your ideas without limits
- Easy, simple and safe to use
High-quality brass design,
Quality CW61N - drinking water suitable for industry, trade and professional DIY.
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
