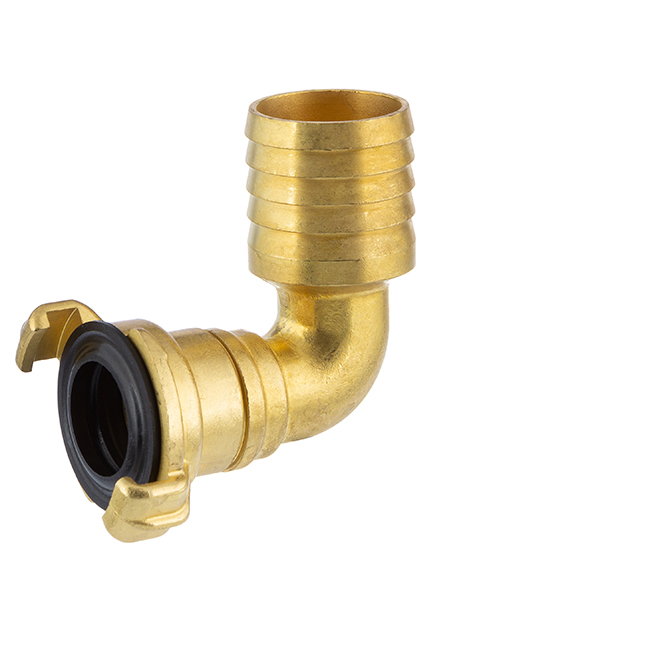

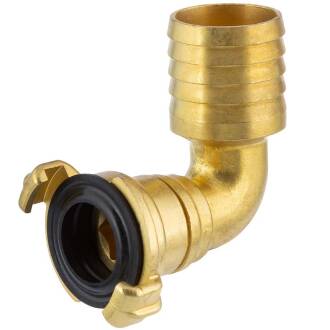

Brass quick bayonet coupling 360° elbow 90° with hose tail

SKU: GK0017
Auswahl Steuerzone / Lieferland
from
6,28 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
Variants

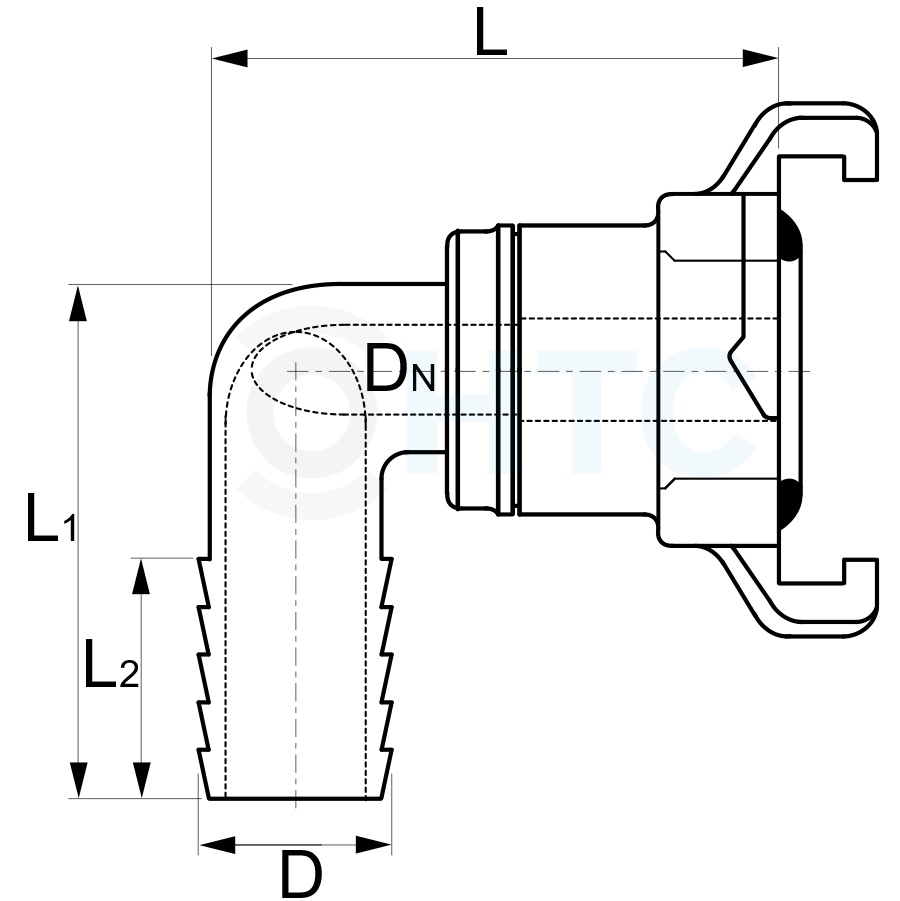

Item no.
Variation
L
L1
L2
NW
SLW
ø hose inside
Price
Quantity
GK0017.000.010
3/8"
54
49
25
4 x 6
10
10 (3/8" Schlauch)
6,28 €*
pc.:
GK0017.000.013
1/2"
58,5
49
25
6,5
13
13 (1/2" Schlauch)
6,52 €*
pc.:
GK0017.000.019
3/4"
61
54
27
10
19
19 (3/4" Schlauch)
7,08 €*
pc.:
GK0017.000.025
1"
65
58,5
28
18
25
25 (1" Schlauch)
7,63 €*
pc.:
GK0017.000.032
1 1/4"
67
67
33
18
32
32 (1 1/4" Schlauch)
7,63 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

Messing Schnellkupplung 90° Winkelschlauchtülle 360° drehbar

Anschluss:

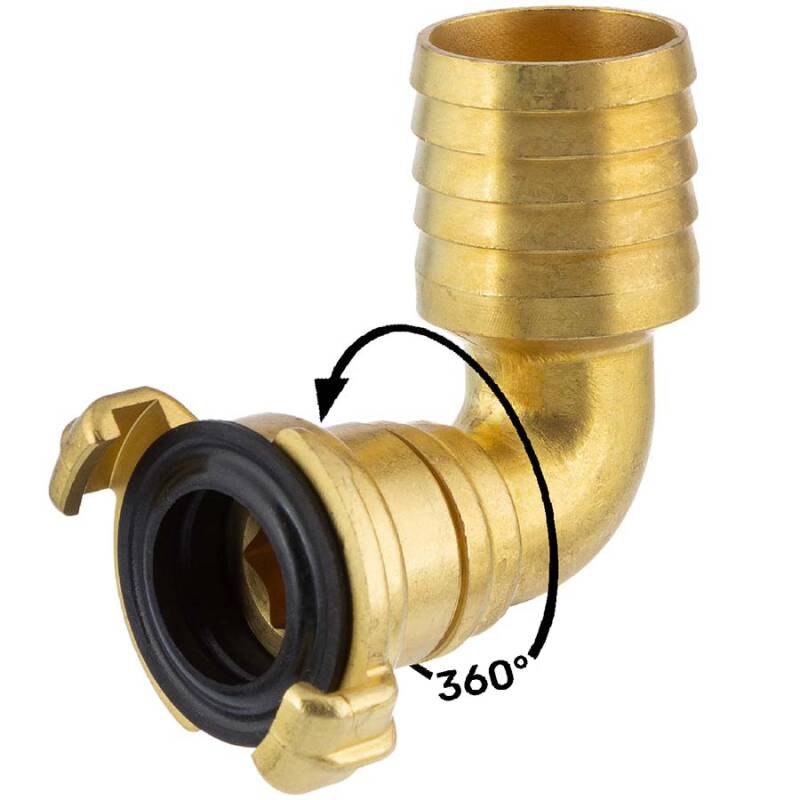

Schnellkupplung x Schlauchtülle 360° drehbar
Temperatur:
ca. -10°C bis +90°C
Arbeitsdruck (PN):
max. 10 bar
Material:
Messing CW61N (für Trinkwasserleitungen verwendbar)
Dichtung:
NBR
  • Das Schlauchinnenmaß wird in mm angegeben. Die Bezeichnung 1/2" Schlauch oder auch 3/4" Schlauch bezieht sich auf die umgangssprachlich verwendeten, veralteten Maßgaben für Schlauch und ist nicht identisch mit den Zoll-Maßangaben für Fittings.
