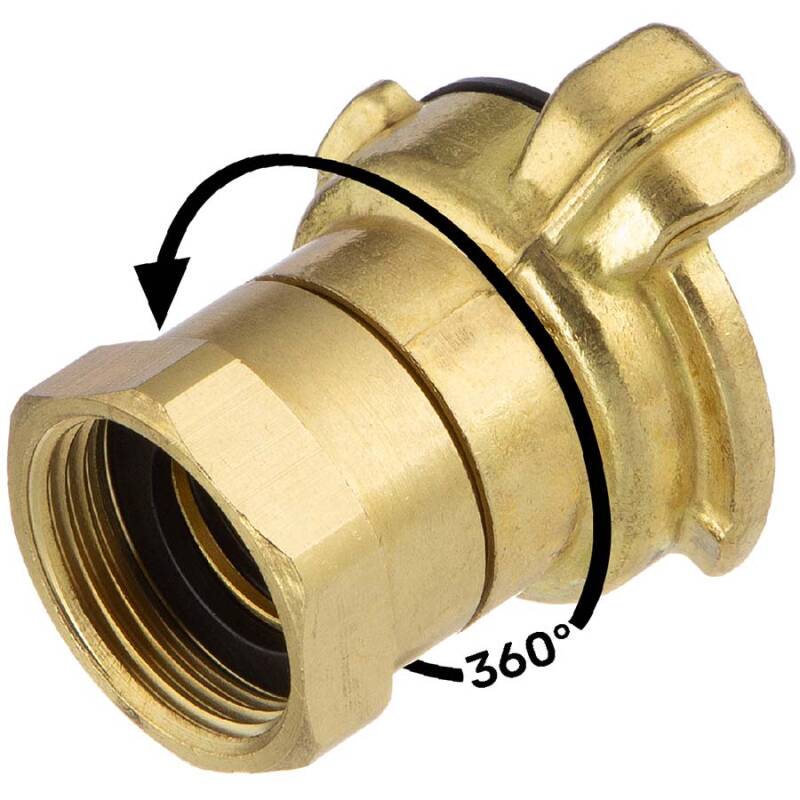

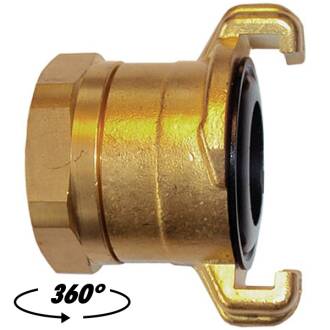

Brass quick bayonet coupling 360° with female thread

SKU: GK0015
Auswahl Steuerzone / Lieferland
Price on request
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
G
L
NW
SW
t
Price
Quantity
GK0015.000.020
1/2"
1/2" (20,96mm)
41
15,5
25
10
5,36 €*
pc.:
GK0015.000.025
3/4"
3/4" (26,44mm)
40
15,5
30
10
5,96 €*
pc.:
GK0015.000.032
1"
1" (33,25mm)
42
15,5
37
11
6,46 €*
pc.:
GK0015.000.040
1 1/4"
1 1/4" (41,91mm)
42,5
15,5
45
13
7,43 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

HTC Messing Schnellkupplung Gewindestück 360° drehbar Innengewinde GEKA ähnlich

Anschluss:
Schnellkupplung x Innengewinde 360° drehbar
Temperatur:
ca. -10°C bis +90°C
Arbeitsdruck (PN):
max. 10 bar
Material:
Messing CW61N (für Trinkwasserleitungen verwendbar)
Dichtung:
NBR
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
