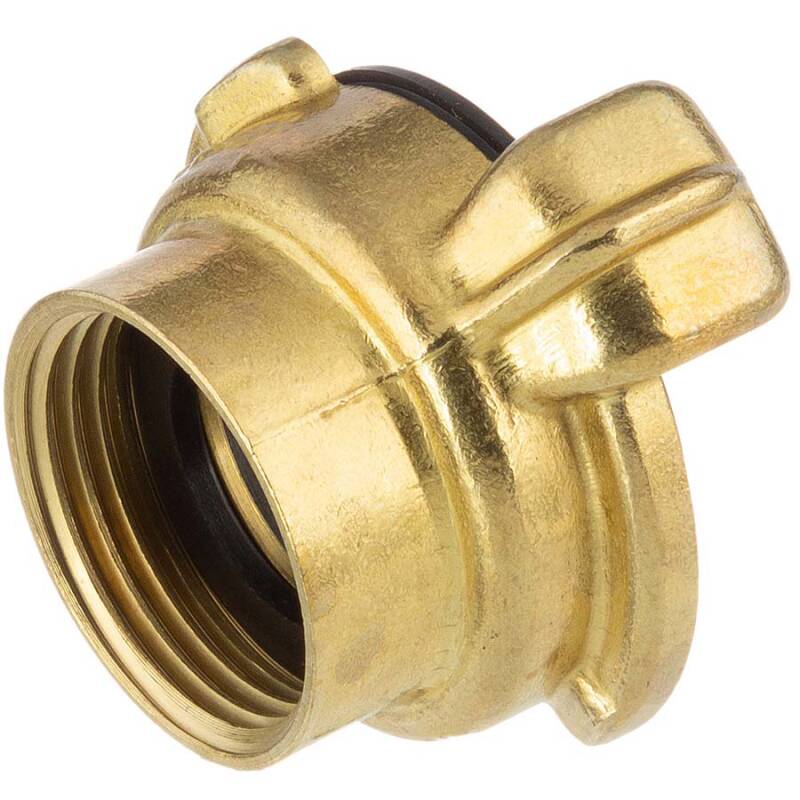

Brass quick bayonet coupling with female thread

Price on request
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
L
NW
t
Price
Quantity
GK0005.000.016
3/8" (16,66mm)
21
11
10
1,73 €*
pc.:
GK0005.000.020
1/2" (20,95mm)
20
15
8,5
1,80 €*
pc.:
GK0005.000.025
3/4" (26,44mm)
21,5
19
10
1,73 €*
pc.:
GK0005.000.032
1" (33,25mm)
22,5
23
11,5
1,96 €*
pc.:
GK0005.000.040
1 1/4" (41,91mm)
26,5
23,5
12,5
2,70 €*
pc.:
GK0005.000.050
1 1/2" (47,81mm)
26,5
25
14,5
2,94 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

HTC© Messing Schnellkupplung Innengewinde GEKA ähnlich

Anschluss:
Schnellkupplung x Innengewinde
Temperatur:
ca. -10°C bis +90°C
Arbeitsdruck (PN):
max. 10 bar
Material:
Messing CW61N (für Trinkwasserleitungen verwendbar)
Dichtung:
NBR
  • Kombinierbar mit Kupplungen der Firma Geka®
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
