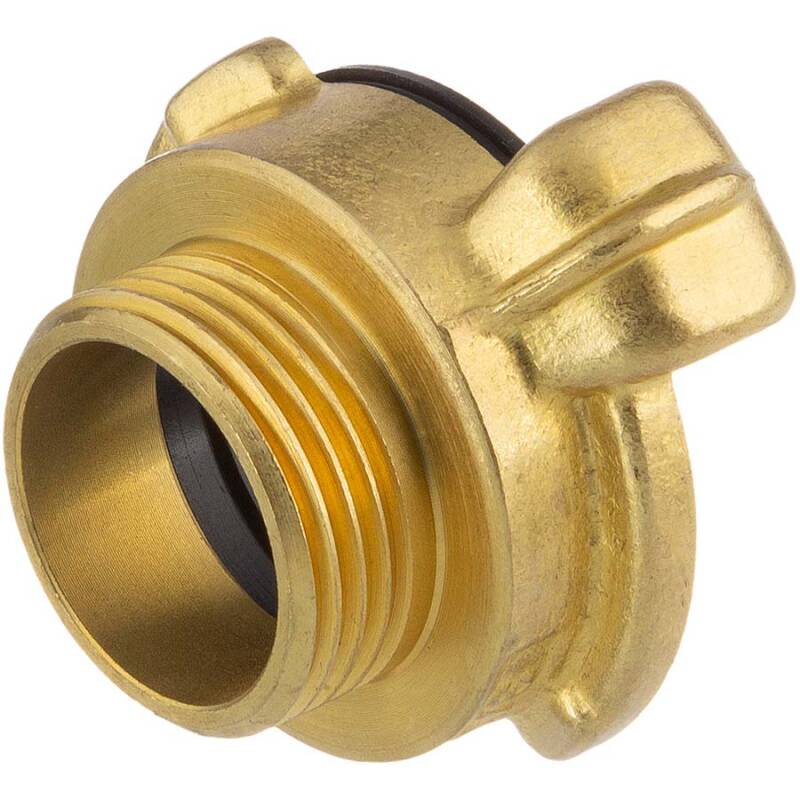

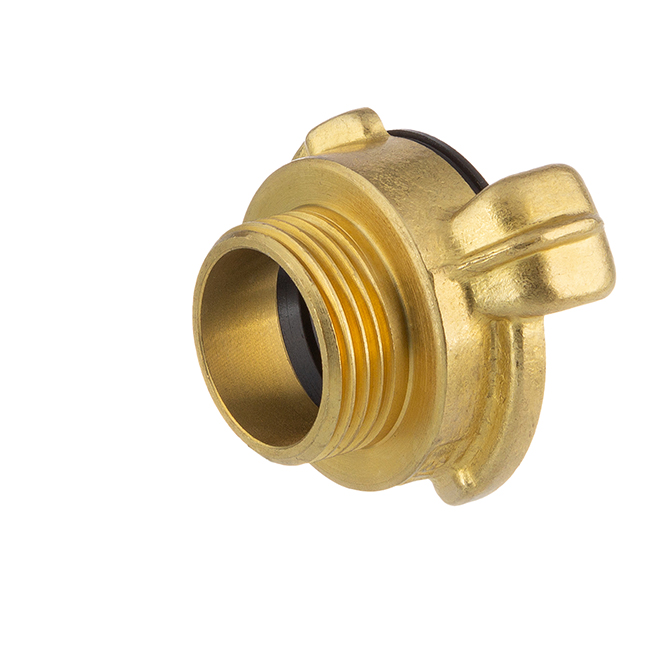

Brass quick bayonet coupling with male thread

1,93 €

including 19% VAT., plus shipping

Item number: GK0004

How to measure a threaded fitting

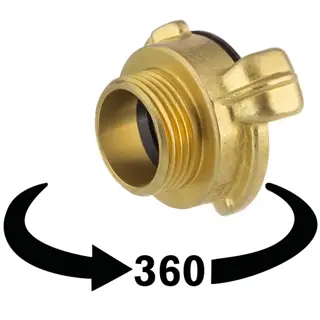

3D View

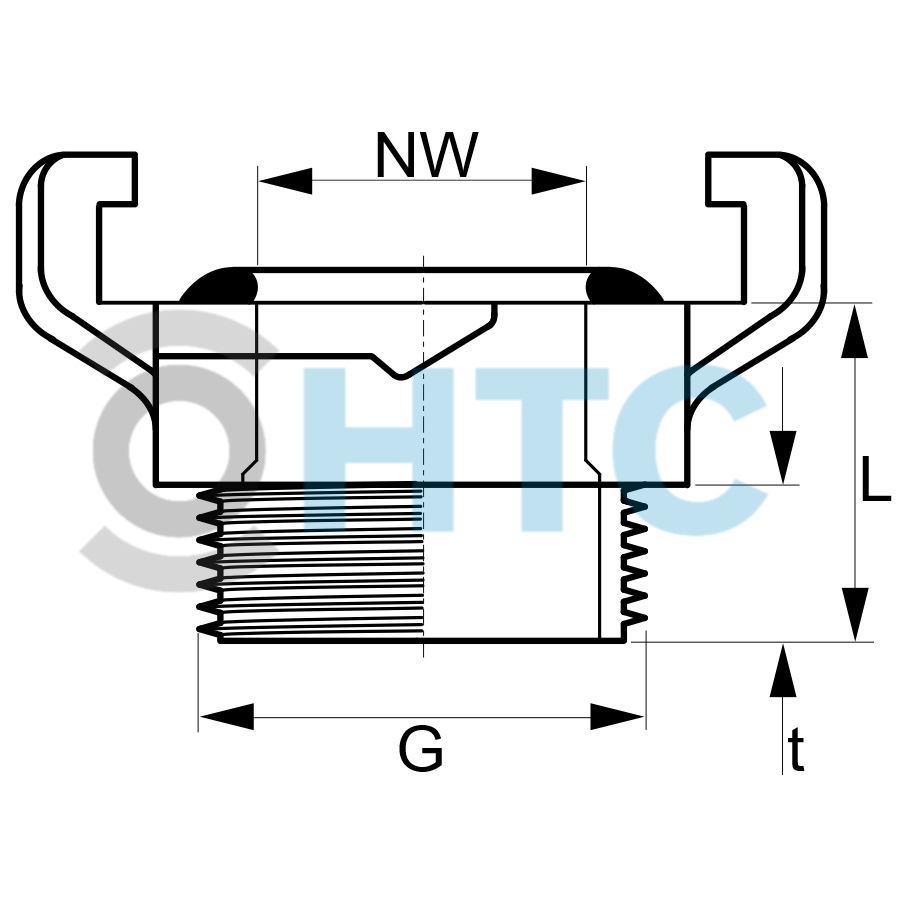

Item no.	Variation	G	L	NW	t	Price	Quantity
GK0004.000.016	3/8"	3/8" (16,66mm)	22	11	11	1,93 €^*	pc.:
GK0004.000.020	1/2"	1/2" (20,96mm)	22	15	11	1,93 €^*	pc.:
GK0004.000.025	3/4"	3/4" (26,44mm)	22	20	11	2,36 €^*	pc.:
GK0004.000.032	1"	1" (33,25mm)	22	23	11	2,49 €^*	pc.:
GK0004.000.040	1 1/4"	1 1/4" (41,91mm)	22	25	11	2,61 €^*	pc.:
GK0004.000.050	1 1/2"	1 1/2" (47,81mm)	25	25	14	3,12 €^*	pc.:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.
