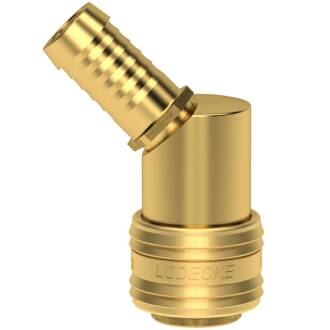

Brass quick release DN 7.2 coupling 45° x hose nozzle

SKU: MF3007
Auswahl Steuerzone / Lieferland
from
8,54 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

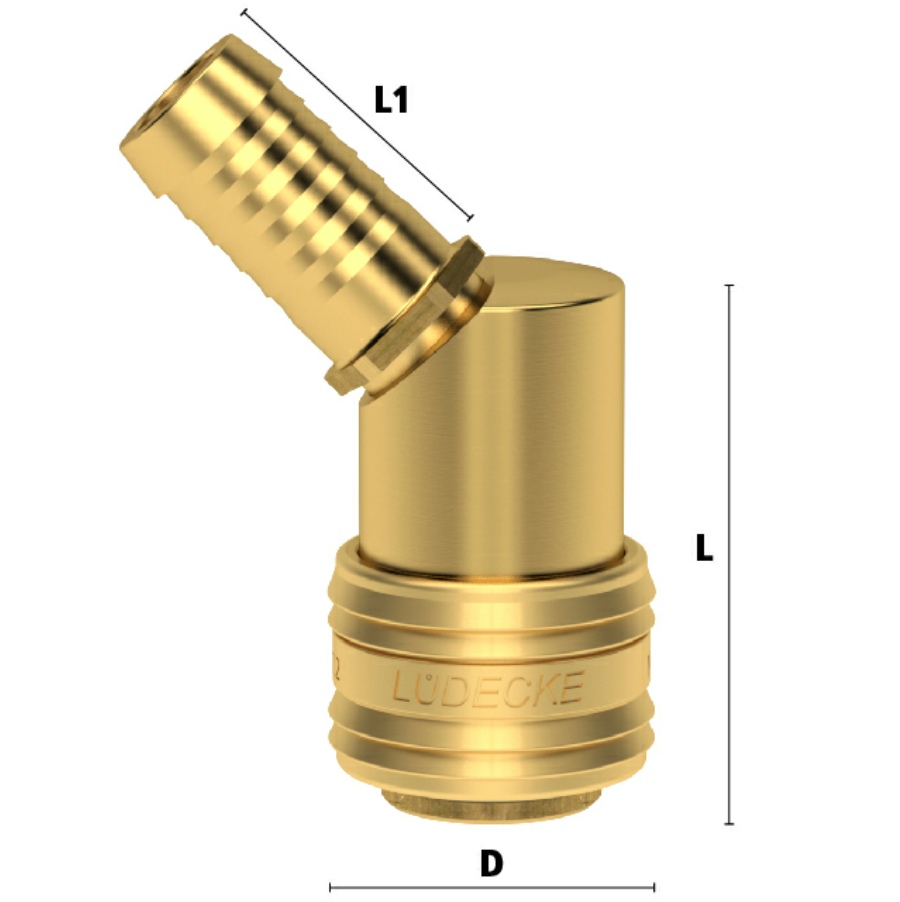

Item no.
Variation
A
D
L
L1
Price
Quantity
MF3007.072.006
DN 7,2 x 6mm
6
27
44
27
8,54 €*
pc.:
MF3007.072.009
DN 7,2 x 9mm
9
27
44
27
8,54 €*
pc.:
MF3007.072.013
DN 7,2 x 13mm
13
27
44
30
8,96 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Messing Schnellverschluss DN 7,2 Kupplung 45° mit Schlauchtülle

Kupplung DN 7,2, Messing MS 58, einseitig absperrend

Anschluss:
Kupplung x Schlauchtülle
Gewinde:
BSP Rohrgewinde ISO 228-1, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
-20°C bis +100°C
Ventilart:
einseitig absperrend
Durchflussmenge:
1.100 l/min
max. Betriebsdruck:
PN 35 bar
Medium:
Luft u.a.
Material:
Messing MS 58
Dichtung:
NBR
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
