All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

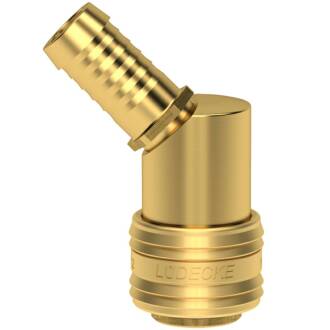

Brass quick connector DN 7.2 coupling 45° with hose nozzle
Coupling DN 7.2, brass MS 58, one-way shut-off
Connection:
Coupling x hose nozzle
Thread:
BSP pipe thread ISO 228-1, not self-sealing, sealing with Teflon tape or similar.
Temperature:
-20°C to +100°C
Valve type:
one-way shut-off
Flow rate:
1,100 l/min
Max. operating pressure:
PN 35 bar
medium:
Air etc.
material:
Brass MS 58
Seal:
NBR
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
