Variants

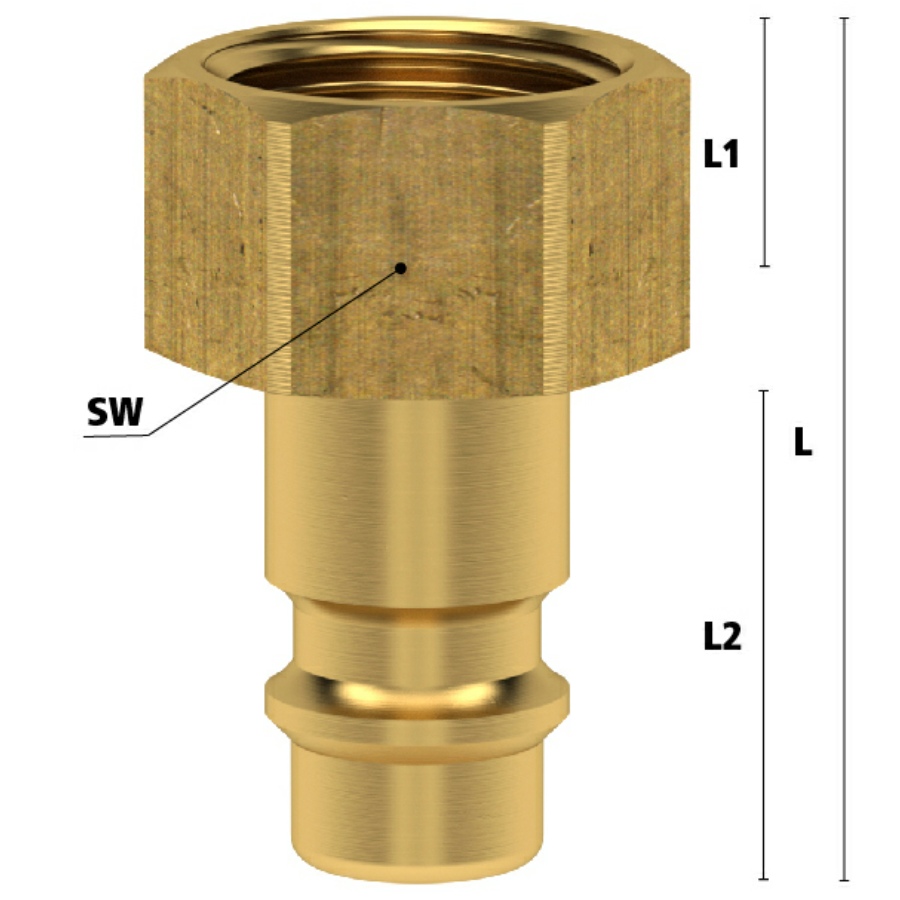

Item no.
Variation
DN
G
L
L1
L2
SW
Price
Quantity
MF3004.072.012
DN 7,2 x 1/4"
7,2
G 1/4" (13,16mm)
33
10
20
17
1,25 €*
pc.:
MF3004.072.016
DN 7,2 x 3/8"
7,2
G 3/8" (16,66mm)
33
10
20
19
1,55 €*
pc.:
MF3004.072.020
DN 7,2 x 1/2"
7,2
G 1/2" (20,96mm)
35
12
20
24
2,65 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

Messing Schnellverschluss DN 7,2 Stecknippel x Aussengewinde

Kupplung DN 7,2, Messing MS 58, freier Durchgang

Anschluss:
Stecknippel x Aussengewinde
Gewinde:
BSP Rohrgewinde ISO 228-1, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
-20°C bis +100°C
Ventilart:
freier Durchgang
max. Betriebsdruck:
PN 35 bar
Medium:
Luft u.a.
Material:
Messing MS 58
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
