Brass sealing ring for compression fitting PE pipe (part 3)

SKU: MP0004
Auswahl Steuerzone / Lieferland
from
0,45 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
D1
L
Price
Quantity
MP0004.000.020
für PE100 20mm
15,4
19,0
20,5
0,45 €*
pc.:
MP0004.000.025
für PE100 25mm
20,4
23,0
24,0
0,62 €*
pc.:
MP0004.000.032
für PE100 32mm
25,8
30,0
30,0
1,08 €*
pc.:
MP0004.000.050
für PE100 50mm
40,3
47,0
43,0
3,37 €*
pc.:
MP0004.000.063
für PE100 63mm
50,7
58,0
51,0
9,19 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

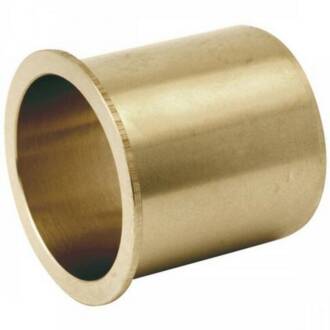

Brass support tube for PE pipe

Material:
Brass CW61N (can be used for drinking water pipes)
Temperature:
-20°C to 90°C
Working pressure (PN):
max. operating pressure 25 bar (400 psi), 20°C 16 Mpa, 95°C 4.2 Mpa
Meets pressure conditions according to DIN 8076-1, thread according to ISO 228 (BS 2779) with parallel internal thread and conical external thread.
Color:
Brass
Application:
Pipes made of PE100 PN16

Important: The support tube is made to fit precisely. If there are plus tolerances in the pipe wall thickness, the support tube can be pressed in with a soft-face mallet and protective plate. Hot pipe and cold metal support the process.


DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOADthe thread identification - or why 1" is not 25.4mm

Brass in the ground - dezincification

If brass or gunmetal is to be used in the ground for a longer period of time (over many years), you should check the prevailing conditions in advance.

There are some wells of drinking water suppliers where the installation of brass is not possible. The drinking water lacks zinc and the water would draw this out of the installed parts.

This is known as dezincification of the brass, which then leads to pitting or pipe breakage.

The longevity of a brass coupling also depends on the acidity of the soil. Soil with a high humus content or clay is more aggressive towards brass than pure sandy soil. Brass couplings can be protected from harmful substances in the soil, e.g. by coating them with grease.
